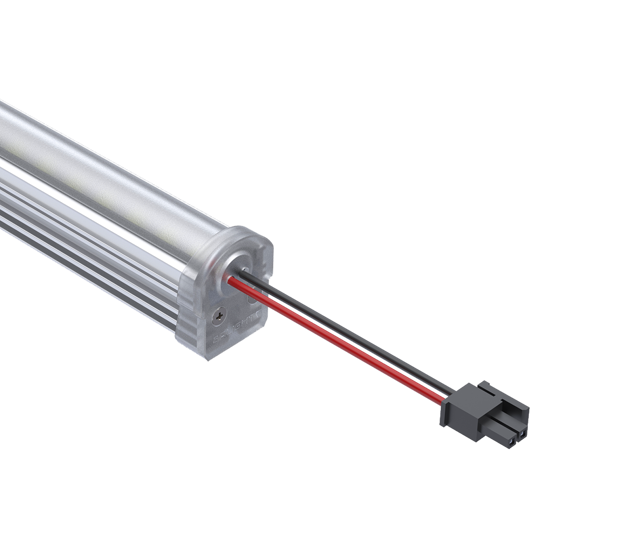

Housing
Matt natural anodized, aluminum extrusion profile and stainless steel mounting accessories with plastic end cap.
Optics
Frosted diffusing polycarbonate lens with lambertian light distribution.
Led
High-efficacy mid power LED with CRI>80, achieving L70B50 ≥ 50,000 hours of lifetime.
Driver
24Vdc external type. Constant voltage output driver with high efficiency.
Dimensions

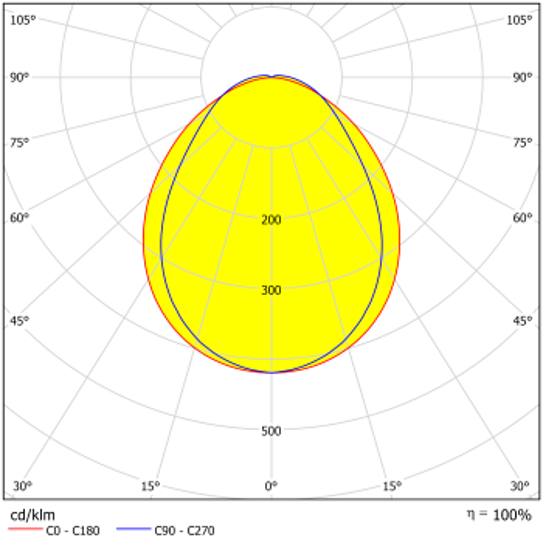

Light Distribution
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | L (mm) | Files |
|---|---|---|---|---|---|---|---|---|
| SD 0135 CVKB SDCVKB.135.3.30 | 3 | 3000 | 275 | >80 | 24V DC | 0,06 | 135 |
|
| SD 0135 CVKB SDCVKB.135.3.40 | 3 | 4000 | 295 | >80 | 24V DC | 0,06 | 135 |
|
| SD 0260 CVKB SDCVKB.260.6.30 | 6 | 3000 | 560 | >80 | 24V DC | 0,10 | 260 |
|
| SD 0260 CVKB SDCVKB.260.6.40 | 6 | 4000 | 595 | >80 | 24V DC | 0,10 | 260 |
|
| SD 0505 CVKB SDCVKB.505.12.30 | 12 | 3000 | 1130 | >80 | 24V DC | 0,19 | 505 |
|
| SD 0505 CVKB SDCVKB.505.12.40 | 12 | 4000 | 1225 | >80 | 24V DC | 0,19 | 505 |
|
| SD 1000 CVKB SDCVKB.1000.24.30 | 24 | 3000 | 2330 | >80 | 24V DC | 0,37 | 1000 |
|
| SD 1000 CVKB SDCVKB.1000.24.40 | 24 | 4000 | 2535 | >80 | 24V DC | 0,37 | 1000 |
|
| SD 1245 CVKB SDCVKB.1245.30.30 | 30 | 3000 | 2835 | >80 | 24V DC | 0,46 | 1245 |
|
| SD 1245 CVKB SDCVKB.1245.30.40 | 30 | 4000 | 3020 | >80 | 24V DC | 0,46 | 1245 |
|
| SD 1495 CVKB SDCVKB.1495.36.30 | 36 | 3000 | 3410 | >80 | 24V DC | 0,55 | 1495 |
|
| SD 1495 CVKB SDCVKB.1495.36.40 | 36 | 4000 | 3625 | >80 | 24V DC | 0,55 | 1495 |
|
