Housing
Matt natural anodized, aluminum extrusion profile and stainless steel mounting accessories with plastic end cap.
Optics
Opal, white, diffusing polycarbonate lens with lambertian light distribution.
Led
High-efficacy mid power LED with CRI>80, achieving L70B50 ≥ 50,000 hours of lifetime.
Driver
24Vdc external type. Constant voltage output driver with high efficiency.
Dimensions

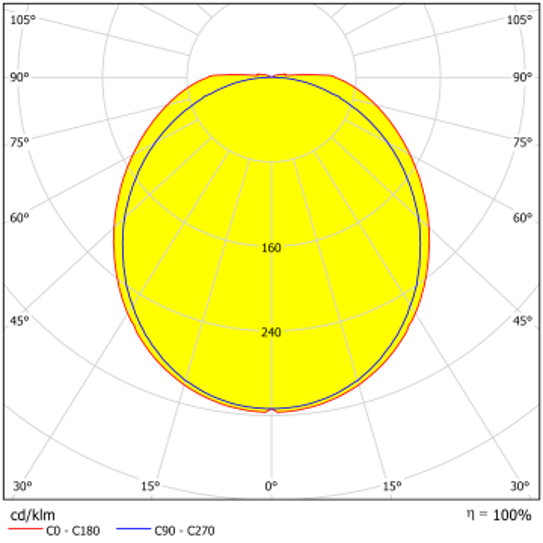

Light Distribution
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | L (mm) | Files |
|---|---|---|---|---|---|---|---|---|
| SDCVK.135.3.30 | 3 | 3000 | 240 | >80 | 24V DC | 0,06 | 135 |
|
| SDCVK.135.3.40 | 3 | 4000 | 260 | >80 | 24V DC | 0,06 | 135 |
|
| SDCVK.260.6.30 | 6 | 3000 | 490 | >80 | 24V DC | 0,10 | 260 |
|
| SDCVK.260.6.40 | 6 | 4000 | 520 | >80 | 24V DC | 0,10 | 260 |
|
| SDCVK.505.12.30 | 12 | 3000 | 990 | >80 | 24V DC | 0,19 | 505 |
|
| SDCVK.505.12.40 | 12 | 4000 | 1070 | >80 | 24V DC | 0,19 | 505 |
|
| SDCVK.1000.24.30 | 24 | 3000 | 2040 | >80 | 24V DC | 0,37 | 1000 |
|
| SDCVK.1000.24.40 | 24 | 4000 | 2170 | >80 | 24V DC | 0,37 | 1000 |
|
| SDCVK.1245.30.30 | 30 | 3000 | 2480 | >80 | 24V DC | 0,46 | 1245 |
|
| SDCVK.1245.30.40 | 30 | 4000 | 2640 | >80 | 24V DC | 0,46 | 1245 |
|
| SDCVK.1495.36.30 | 36 | 3000 | 2980 | >80 | 24V DC | 0,55 | 1495 |
|
| SDCVK.1495.36.40 | 36 | 4000 | 3170 | >80 | 24V DC | 0,55 | 1495 |
|
