Body
Electrostatic powder coated DKP sheet.
Diffuser
Opal white prismatic diffuser with homogeneous light distribution, high light transmission.
Led
Mid power with high efficacy factor and color rendering, L90B50 50,000 hours.
Driver
Constant current output, high efficiency, Pf ≥0.95.
Option
* 1 or 3 hours emergency lighting module.
* Can be dimmed via DALI.
Color
Ral 9016
Ral 9005
Ral 9006

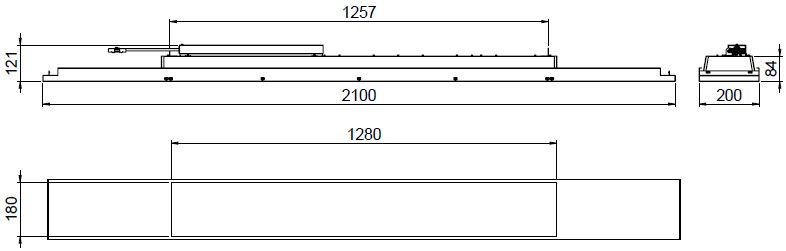

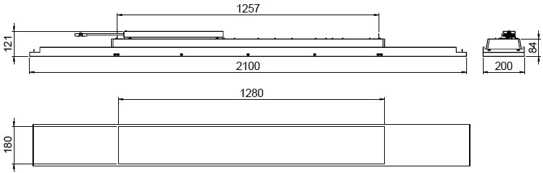

Dimensions

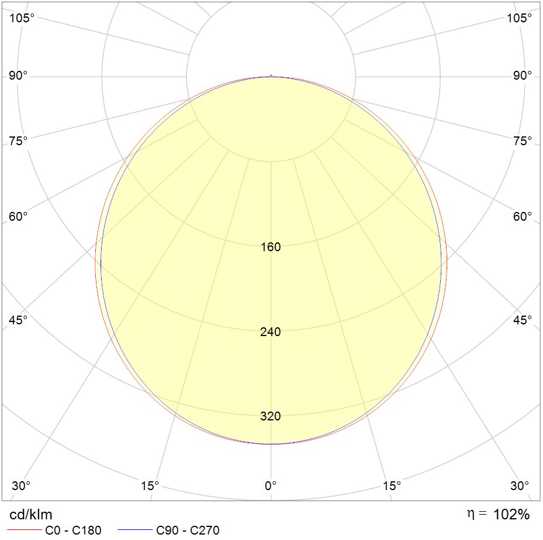

Light Distribution
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | L1 (mm) | L2 (mm) | Files |
|---|---|---|---|---|---|---|---|---|---|
| G20120YGT.28.40 | 28 | 4000 | 3400 | 80 | 220-240/50-60 | 5,3 | 2100 | 200 |
|
