Housing
Aluminum injection frame with electrostatic powder coating and aluminum heatsink.
Optics
Highly efficient PMMA lens, designed specially for High Power LED.
Led
High-efficacy High Power LED with CRI>80, achieving L70B50 ≥ 50,000 hours of lifetime.
Driver
Constant current output LED driver with high efficiency and pf >0,8.
Options
Dimming via DALI
Color
Ral 9016
Ral 9005
Ral 9006

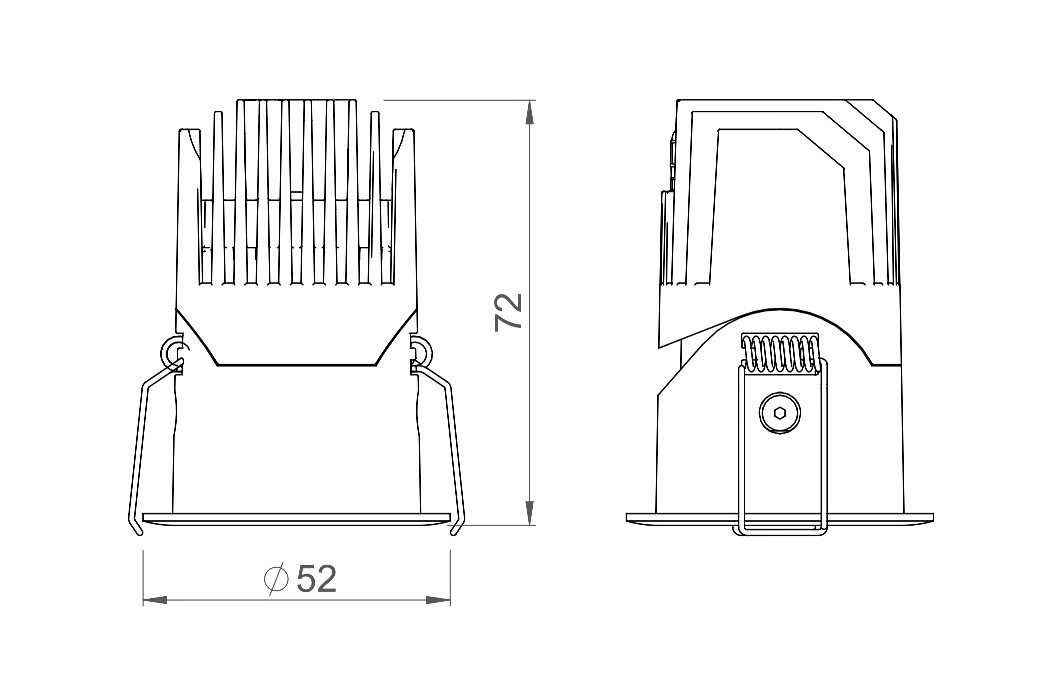

Dimensions
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Cut-out Size (mm) | Beam Angle | Files |
|---|---|---|---|---|---|---|---|---|---|
| DGFLR.50.8.3.90.24 | 8,5 | 3000 | 270 | >90 | 220-240/50-60 | 0,07 | Ø45 | 24° |
|
| DGFLR.50.8.4.90.24 | 8,5 | 4000 | 325 | >90 | 220-240/50-60 | 0,07 | Ø45 | 24° |
|
| DGFLR.50.8.3.90.55 | 8,5 | 3000 | 340 | >90 | 220-240/50-60 | 0,07 | Ø45 | 55° |
|
| DGFLR.50.8.4.90.55 | 8,5 | 4000 | 385 | >90 | 220-240/50-60 | 0,07 | Ø45 | 55° |
|
