Housing
Aluminum injection frame with electrostatic powder coating and die-cast aluminum heatsink.
Optics
Highly efficient PMMA lens, designed specially for High Power LED.
Led
High-efficacy High Power LED with CRI>80, achieving L70B50 ≥ 50,000 hours of lifetime.
Driver
Constant current output LED driver with high efficiency and pf >0,8.
Options
Dimming via DALI
Color
Ral 9016
Ral 9005
Ral 9006

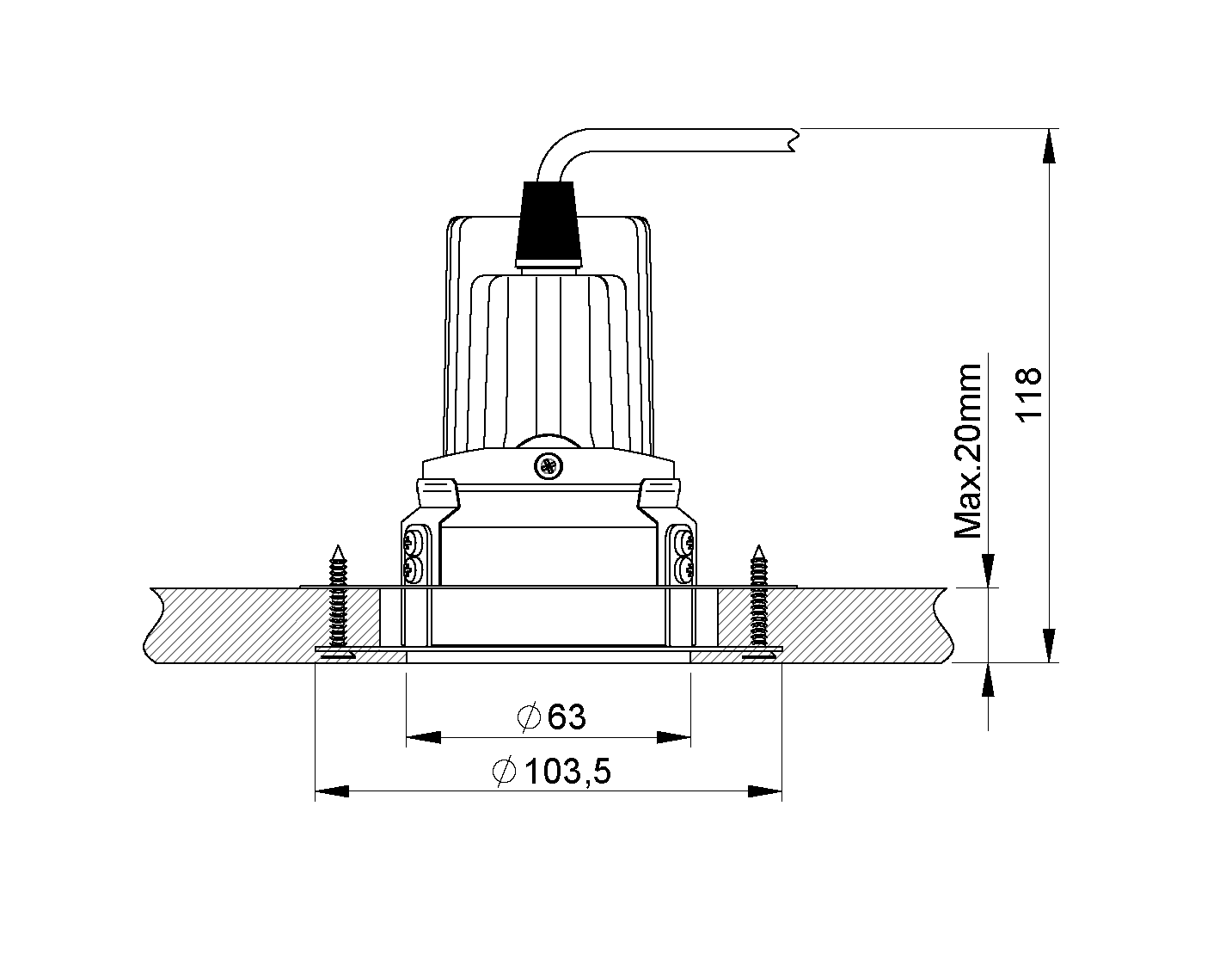

Dimensions
Light Distribution

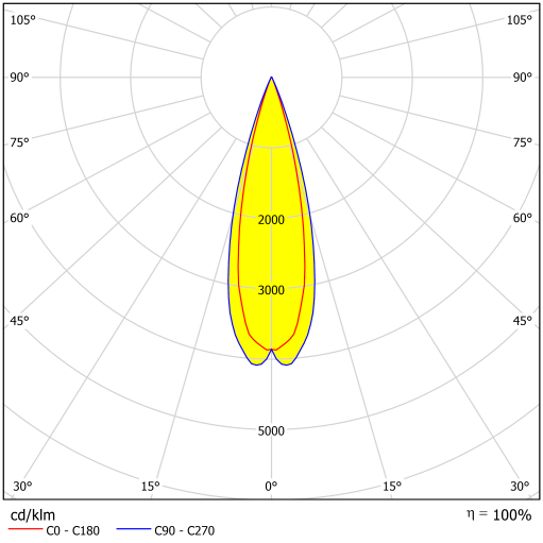

- DGSAT.060.11.40.25

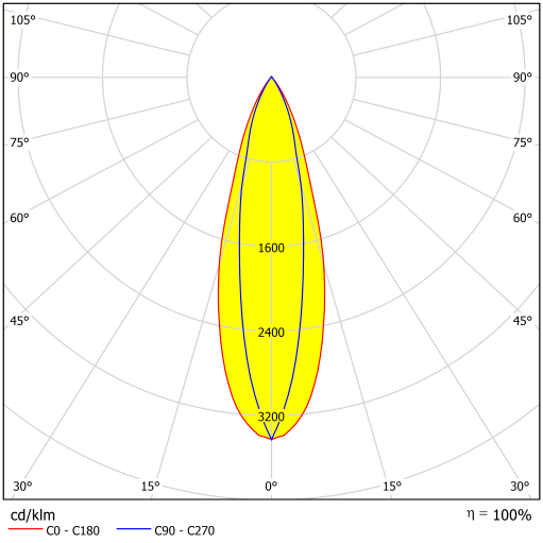

- DGSAT.060.11.40.35

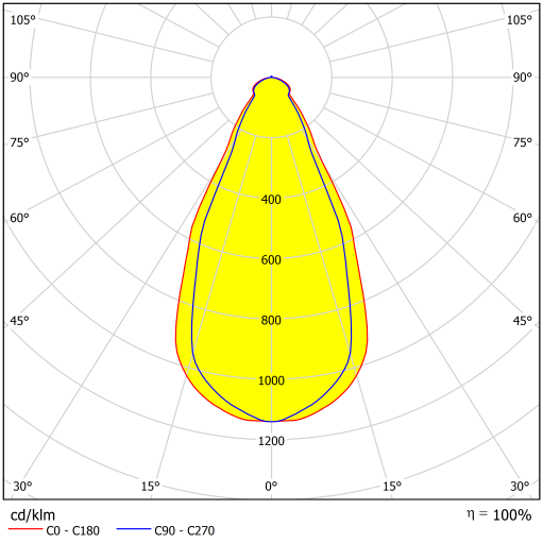

- DGSAT.060.11.40.60
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Cut-out Size (mm) | Beam Angle | Files |
|---|---|---|---|---|---|---|---|---|---|
| DGSAT.060.6.30.25 | 6 | 3000 | 470 | >80 | 220-240/50-60 | 0,3 | Ø75 | 25° |
|
| DGSAT.060.6.40.25 | 6 | 4000 | 540 | >80 | 220-240/50-60 | 0,3 | Ø75 | 25° |
|
| DGSAT.060.6.30.35 | 6 | 3000 | 480 | >80 | 220-240/50-60 | 0,3 | Ø75 | 35° |
|
| DGSAT.060.6.40.35 | 6 | 4000 | 510 | >80 | 220-240/50-60 | 0,3 | Ø75 | 35° |
|
| DGSAT.060.6.30.60 | 6 | 3000 | 360 | >80 | 220-240/50-60 | 0,3 | Ø75 | 60° |
|
| DGSAT.060.6.40.60 | 6 | 4000 | 385 | >80 | 220-240/50-60 | 0,3 | Ø75 | 60° |
|
| DGSAT.060.8.30.25 | 8 | 3000 | 615 | >80 | 220-240/50-60 | 0,3 | Ø75 | 25° |
|
| DGSAT.060.8.40.25 | 8 | 4000 | 670 | >80 | 220-240/50-60 | 0,3 | Ø75 | 25° |
|
| DGSAT.060.8.30.35 | 8 | 3000 | 630 | >80 | 220-240/50-60 | 0,3 | Ø75 | 35° |
|
| DGSAT.060.8.40.35 | 8 | 4000 | 660 | >80 | 220-240/50-60 | 0,3 | Ø75 | 35° |
|
| DGSAT.060.8.30.60 | 8 | 3000 | 465 | >80 | 220-240/50-60 | 0,3 | Ø75 | 60° |
|
| DGSAT.060.8.40.60 | 8 | 4000 | 515 | >80 | 220-240/50-60 | 0,3 | Ø75 | 60° |
|
| DGSAT.060.11.30.25 | 11 | 3000 | 800 | >80 | 220-240/50-60 | 0,3 | Ø75 | 25° |
|
| DGSAT.060.11.40.25 | 11 | 4000 | 900 | >80 | 220-240/50-60 | 0,3 | Ø75 | 25° |
|
| DGSAT.060.11.30.35 | 11 | 3000 | 800 | >80 | 220-240/50-60 | 0,3 | Ø75 | 35° |
|
| DGSAT.060.11.40.35 | 11 | 4000 | 870 | >80 | 220-240/50-60 | 0,3 | Ø75 | 35° |
|
| DGSAT.060.11.30.60 | 11 | 3000 | 610 | >80 | 220-240/50-60 | 0,3 | Ø75 | 60° |
|
| DGSAT.060.11.40.60 | 11 | 4000 | 650 | >80 | 220-240/50-60 | 0,3 | Ø75 | 60° |
|
