Housing
Aluminum injection frame with electrostatic powder coating and die-cast aluminum heatsink.
Optics
Highly efficient PMMA lens, designed specially for High Power LED.
Led
High-efficacy High Power LED with CRI>80, achieving L70B50 ≥ 50,000 hours of lifetime.
Driver
Constant current output LED driver with high efficiency and pf >0,8.
Options
Dimming via DALI
IP44/20 can be produced
Color
Ral 9016
Ral 9005
Ral 9006

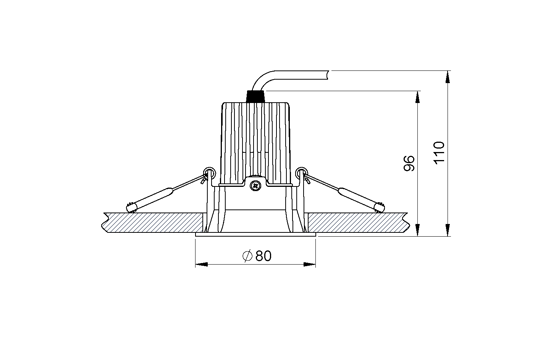

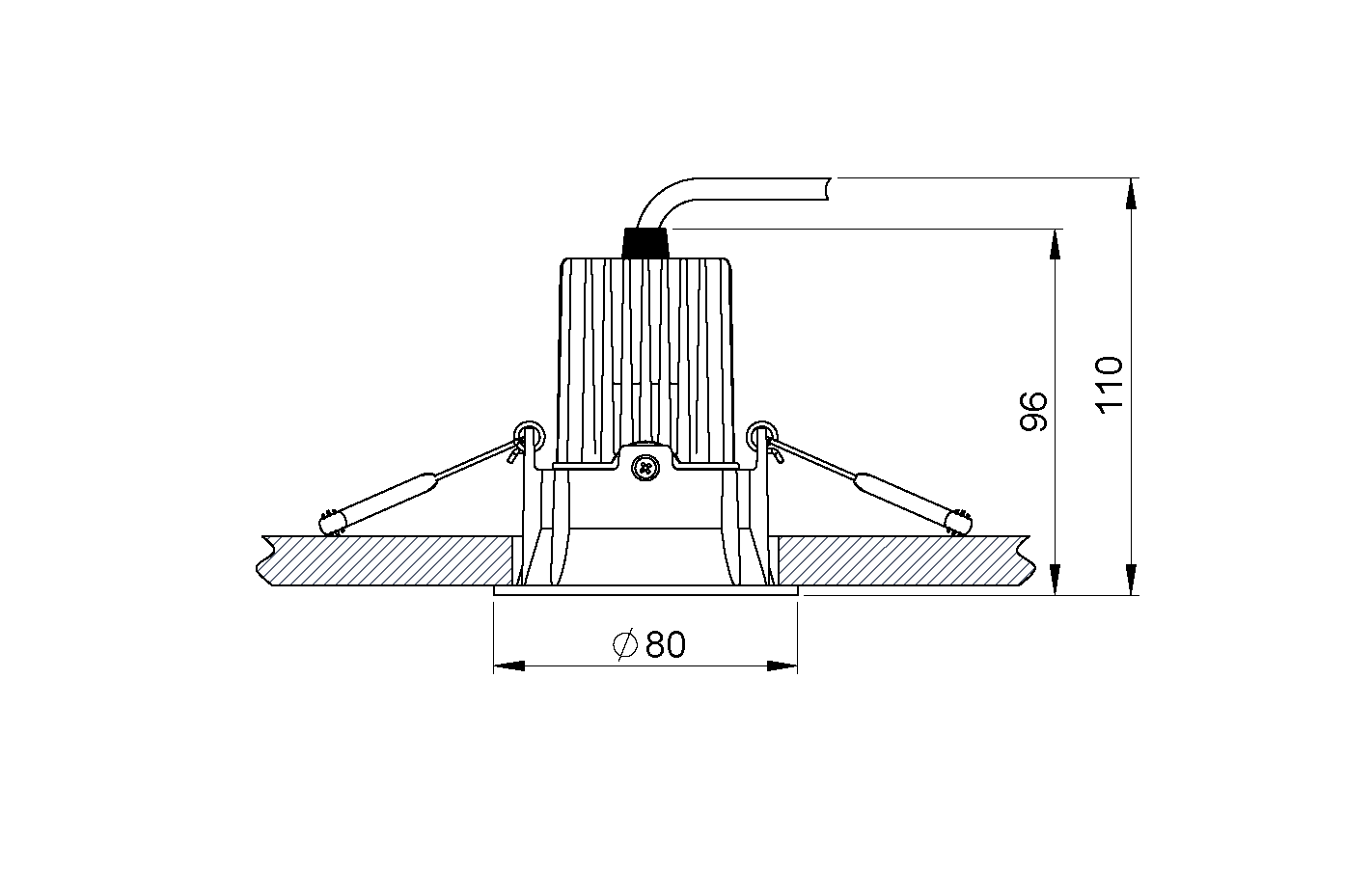

Dimensions
Light Distribution

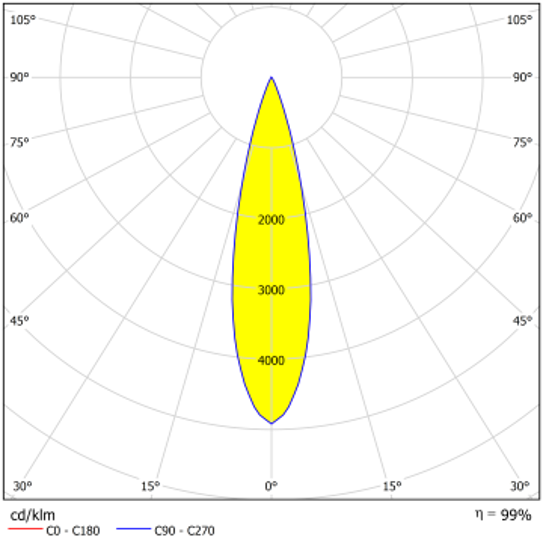

- DGSAY.080.11.40.25

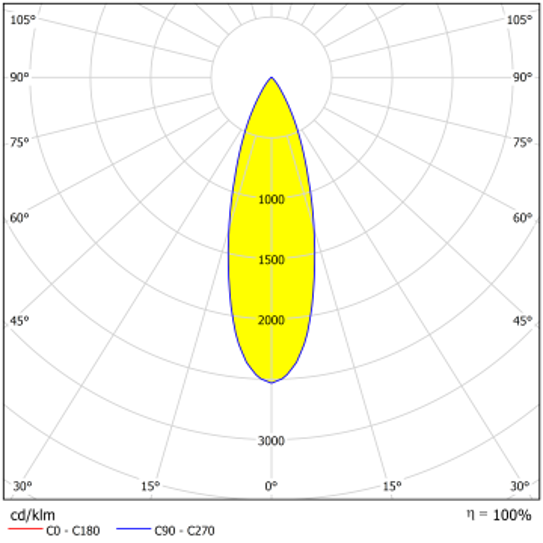

- DGSAY.080.11.40.35

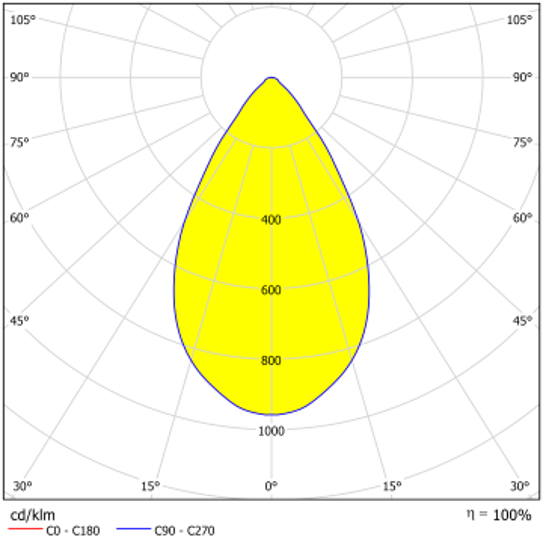

- DGSAY.080.11.40.60
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Cut-out Size (mm) | Beam Angle | Files |
|---|---|---|---|---|---|---|---|---|---|
| DGSAY.080.6.30.25 | 6 | 3000 | 495 | >80 | 220-240/50-60 | 0,36 | Ø70 | 25° |
|
| DGSAY.080.6.40.25 | 6 | 4000 | 550 | >80 | 220-240/50-60 | 0,36 | Ø70 | 25° |
|
| DGSAY.080.6.30.35 | 6 | 3000 | 505 | >80 | 220-240/50-60 | 0,36 | Ø70 | 35° |
|
| DGSAY.080.6.40.35 | 6 | 4000 | 560 | >80 | 220-240/50-60 | 0,36 | Ø70 | 35° |
|
| DGSAY.080.6.30.60 | 6 | 3000 | 475 | >80 | 220-240/50-60 | 0,36 | Ø70 | 60° |
|
| DGSAY.080.6.40.60 | 6 | 4000 | 530 | >80 | 220-240/50-60 | 0,36 | Ø70 | 60° |
|
| DGSAY.080.8.30.25 | 8 | 3000 | 660 | >80 | 220-240/50-60 | 0,36 | Ø70 | 25° |
|
| DGSAY.080.8.40.25 | 8 | 4000 | 700 | >80 | 220-240/50-60 | 0,36 | Ø70 | 25° |
|
| DGSAY.080.8.30.35 | 8 | 3000 | 660 | >80 | 220-240/50-60 | 0,36 | Ø70 | 35° |
|
| DGSAY.080.8.40.35 | 8 | 4000 | 740 | >80 | 220-240/50-60 | 0,36 | Ø70 | 35° |
|
| DGSAY.080.8.30.60 | 8 | 3000 | 620 | >80 | 220-240/50-60 | 0,36 | Ø70 | 60° |
|
| DGSAY.080.8.40.60 | 8 | 4000 | 690 | >80 | 220-240/50-60 | 0,36 | Ø70 | 60° |
|
| DGSAY.080.11.30.25 | 11 | 3000 | 880 | >80 | 220-240/50-60 | 0,36 | Ø70 | 25° |
|
| DGSAY.080.11.40.25 | 11 | 4000 | 970 | >80 | 220-240/50-60 | 0,36 | Ø70 | 25° |
|
| DGSAY.080.11.30.35 | 11 | 3000 | 860 | >80 | 220-240/50-60 | 0,36 | Ø70 | 35° |
|
| DGSAY.080.11.40.35 | 11 | 4000 | 955 | >80 | 220-240/50-60 | 0,36 | Ø70 | 35° |
|
| DGSAY.080.11.30.60 | 11 | 3000 | 820 | >80 | 220-240/50-60 | 0,36 | Ø70 | 60° |
|
| DGSAY.080.11.40.60 | 11 | 4000 | 910 | >80 | 220-240/50-60 | 0,36 | Ø70 | 60° |
|
