Housing
Aluminum injection frame with electrostatic powder coating and die-cast aluminum heatsink
Difuser
Opal white diffuser with lambertian light distribution and high transmissivity
LED
High-efficacy mid power LED with CRI>80, achieving L70B50 ≥ 50,000 hours of lifetime
Driver
Constant current output LED driver with high efficiency and Pf≥0.90
Operating Temperature Range
0 °C/+35 °C
Option
DALI and Emergency Lighting Kit
Color
Ral 9016
Ral 9005
Ral 9006

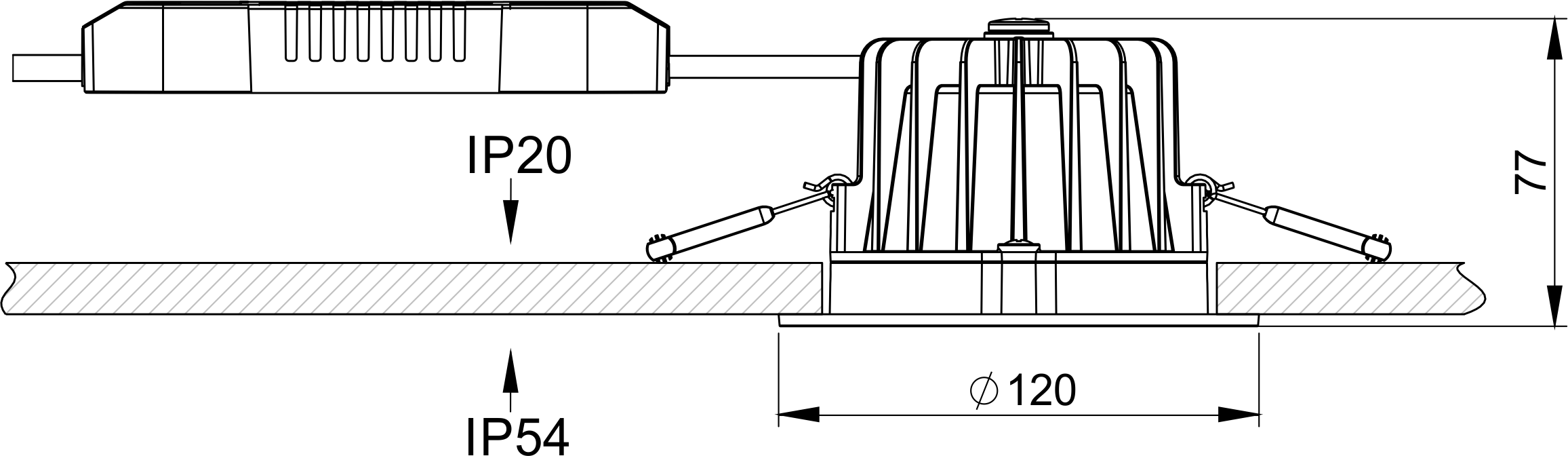

Dimensions

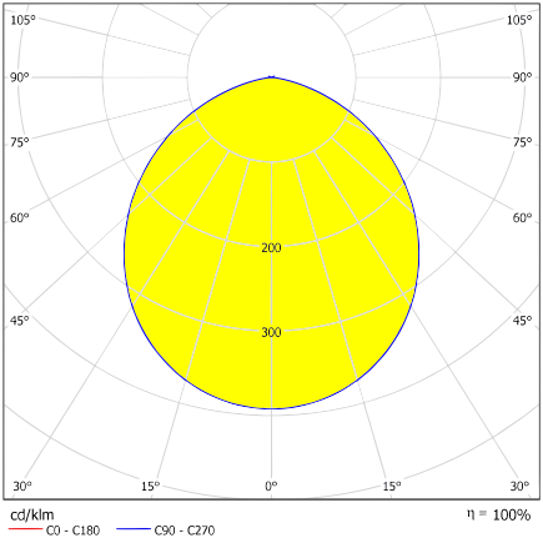

Light Distribution
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Cut-out Size (mm) | Files |
|---|---|---|---|---|---|---|---|---|
| DGMON.120.7.40 | 7 | 4000 | 650 | >80 | 220-240/50-60 | 0,5 | Ø105 |
|
| DGMON.120.7.30 | 7 | 3000 | 590 | >80 | 220-240/50-60 | 0,5 | Ø105 |
|
| DGMON.120.10.40 | 10 | 4000 | 910 | >80 | 220-240/50-60 | 0,5 | Ø105 |
|
| DGMON.120.10.30 | 10 | 3000 | 830 | >80 | 220-240/50-60 | 0,5 | Ø105 |
|
