Housing
Aluminum injection frame with electrostatic powder coating and die-cast aluminum heatsink
Glass
Transparent tempered glass
*Reflector
Anodized aluminum reflector, designed specially for LED modules
LED
High-efficacy COB LED with CRI>80, achieving L70B50 ≥ 50,000 hours of lifetime
Driver
Constant current output LED driver with high efficiency and Pf≥0.90
Operating Temperature Range
0 °C/+35 °C
Option
DALI and Emergency Lighting Kit
*19 °, 30 °, 65 ° and 75 ° angle options are available.

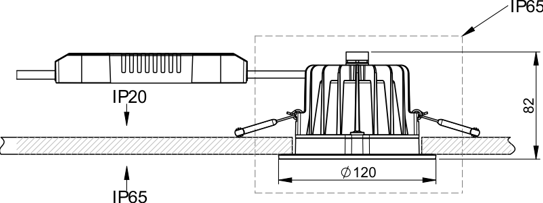

Dimensions
Light Distribution

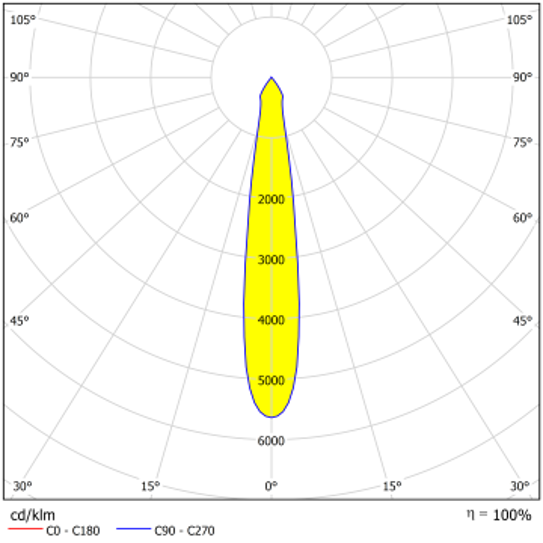

- DGMRW.120.20.40.19

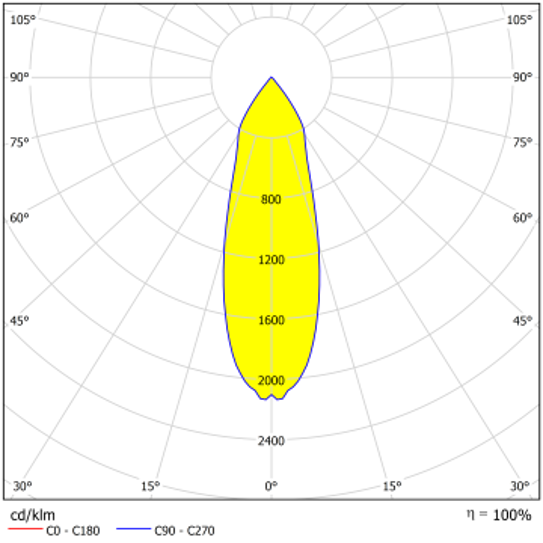

- DGMRW.120.20.40.30

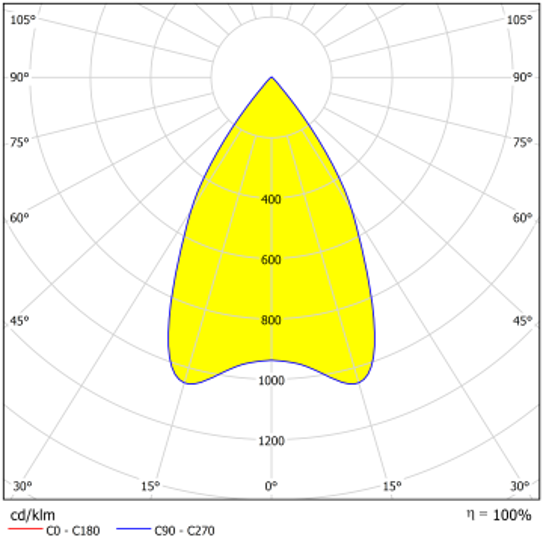

- DGMRW.120.20.40.65

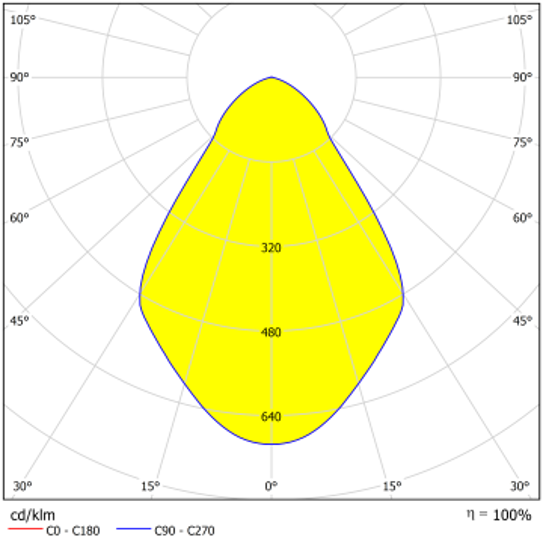

- DGMRW.120.20.40.75
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Cut-out Size (mm) | Beam Angle | Files |
|---|---|---|---|---|---|---|---|---|---|
| DG 1012 MRW DGMRW.120.10.40.19 | 10 | 4000 | 1210 | 80 | 220-240/50-60 | 0,5 | Ø105 | 19° |
|
| DG 1012 MRW DGMRW.120.10.30.19 | 10 | 3000 | 1160 | 80 | 220-240/50-60 | 0,5 | Ø105 | 19° |
|
| DG 1012 MRW DGMRW.120.10.40.30 | 10 | 4000 | 1230 | 80 | 220-240/50-60 | 0,5 | Ø105 | 30° |
|
| DG 1012 MRW DGMRW.120.10.30.30 | 10 | 3000 | 1180 | 80 | 220-240/50-60 | 0,5 | Ø105 | 30° |
|
| DG 1012 MRW DGMRW.120.10.40.65 | 10 | 4000 | 1290 | 80 | 220-240/50-60 | 0,5 | Ø105 | 65° |
|
| DG 1012 MRW DGMRW.120.10.30.65 | 10 | 3000 | 1230 | 80 | 220-240/50-60 | 0,5 | Ø105 | 65° |
|
| DG 1012 MRW DGMRW.120.10.40.75 | 10 | 4000 | 1240 | 80 | 220-240/50-60 | 0,5 | Ø105 | 75° |
|
| DG 1012 MRW DGMRW.120.10.30.75 | 10 | 3000 | 1190 | 80 | 220-240/50-60 | 0,5 | Ø105 | 75° |
|
| DG 1012 MRW DGMRW.120.14.40.19 | 14 | 4000 | 1660 | 80 | 220-240/50-60 | 0,5 | Ø105 | 19° |
|
| DG 1012 MRW DGMRW.120.14.30.19 | 14 | 3000 | 1590 | 80 | 220-240/50-60 | 0,5 | Ø105 | 19° |
|
| DG 1012 MRW DGMRW.120.14.40.30 | 14 | 4000 | 1690 | 80 | 220-240/50-60 | 0,5 | Ø105 | 30° |
|
| DG 1012 MRW DGMRW.120.14.30.30 | 14 | 3000 | 1610 | 80 | 220-240/50-60 | 0,5 | Ø105 | 30° |
|
| DG 1012 MRW DGMRW.120.14.40.65 | 14 | 4000 | 1770 | 80 | 220-240/50-60 | 0,5 | Ø105 | 65° |
|
| DG 1012 MRW DGMRW.120.14.30.65 | 14 | 3000 | 1690 | 80 | 220-240/50-60 | 0,5 | Ø105 | 65° |
|
| DG 1012 MRW DGMRW.120.14.40.75 | 14 | 4000 | 1700 | 80 | 220-240/50-60 | 0,5 | Ø105 | 75° |
|
| DG 1012 MRW DGMRW.120.14.30.75 | 14 | 3000 | 1630 | 80 | 220-240/50-60 | 0,5 | Ø105 | 75° |
|
| DG 1012 MRW DGMRW.120.20.40.19 | 20 | 4000 | 2380 | 80 | 220-240/50-60 | 0,5 | Ø105 | 19° |
|
| DG 1012 MRW DGMRW.120.20.30.19 | 20 | 3000 | 2270 | 80 | 220-240/50-60 | 0,5 | Ø105 | 19° |
|
| DG 1012 MRW DGMRW.120.20.40.30 | 20 | 4000 | 2380 | 80 | 220-240/50-60 | 0,5 | Ø105 | 30° |
|
| DG 1012 MRW DGMRW.120.20.30.30 | 20 | 3000 | 2270 | 80 | 220-240/50-60 | 0,5 | Ø105 | 30° |
|
| DG 1012 MRW DGMRW.120.20.40.65 | 20 | 4000 | 2530 | 80 | 220-240/50-60 | 0,5 | Ø105 | 65° |
|
| DG 1012 MRW DGMRW.120.20.30.65 | 20 | 3000 | 2410 | 80 | 220-240/50-60 | 0,5 | Ø105 | 65° |
|
| DG 1012 MRW DGMRW.120.20.40.75 | 20 | 4000 | 2450 | 80 | 220-240/50-60 | 0,5 | Ø105 | 75° |
|
| DG 1012 MRW DGMRW.120.20.30.75 | 20 | 3000 | 2340 | 80 | 220-240/50-60 | 0,5 | Ø105 | 75° |
|
