Housing
Aluminum injection frame with electrostatic powder coating and die-cast aluminum heatsink.
Optics
Anodized aluminum reflector, designed specially for LED modules.
Led
High-efficacy COB LED with CRI>80, achieving L70B50 ≥ 50,000 hours of lifetime.
Driver
Constant current output LED driver with high
efficiency and pf >0,9
Operating Temperature Range
0 °C/+35 °C
Options
1 or 3 hours emergency lighting kit
Dimming via DALI
Color
Ral 9016
Ral 9005
Ral 9006

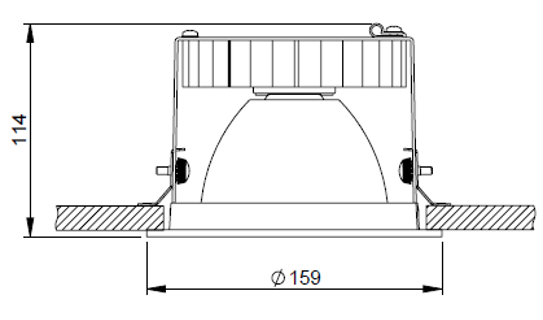

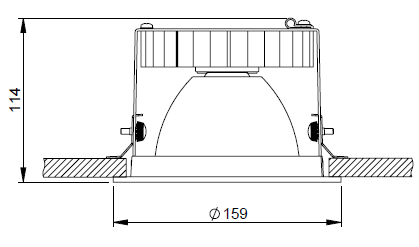

Dimensions

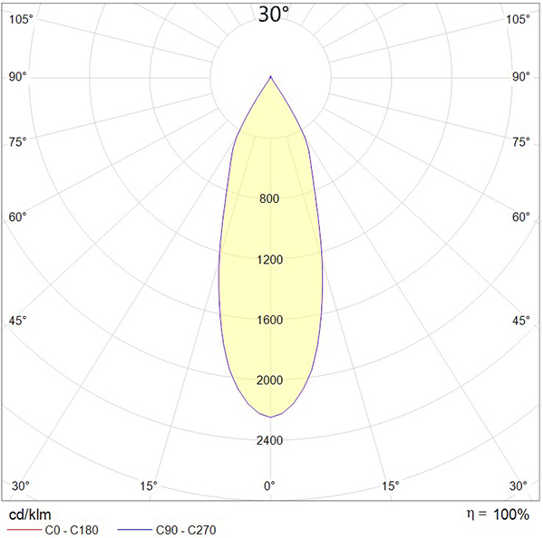

Light Distribution
- DG 1016 ATU 30°
- DG 1016 ATU 50°
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Cut-out Size (mm) | Beam Angle | Files |
|---|---|---|---|---|---|---|---|---|---|
| DGATU.160.15.30.30 | 15 | 3000 | 1590 | >80 | 220-240/50-60 | 0,9 | Ø142 | 30° |
|
| DGATU.160.15.40.30 | 15 | 4000 | 1570 | >80 | 220-240/50-60 | 0,9 | Ø142 | 30° |
|
| DGATU.160.15.30.50 | 15 | 3000 | 1540 | >80 | 220-240/50-60 | 0,9 | Ø142 | 50° |
|
| DGATU.160.15.40.50 | 15 | 4000 | 1610 | >80 | 220-240/50-60 | 0,9 | Ø142 | 50° |
|
| DGATU.160.20.30.30 | 20 | 3000 | 2210 | >80 | 220-240/50-60 | 0,9 | Ø142 | 30° |
|
| DGATU.160.20.40.30 | 20 | 4000 | 2320 | >80 | 220-240/50-60 | 0,9 | Ø142 | 30° |
|
| DGATU.160.20.30.50 | 20 | 3000 | 2140 | >80 | 220-240/50-60 | 0,9 | Ø142 | 50° |
|
| DGATU.160.20.40.50 | 20 | 4000 | 2240 | >80 | 220-240/50-60 | 0,9 | Ø142 | 50° |
|
| DGATU.160.27.30.30 | 27 | 3000 | 2930 | >80 | 220-240/50-60 | 0,9 | Ø142 | 30° |
|
| DGATU.160.27.40.30 | 27 | 4000 | 3070 | >80 | 220-240/50-60 | 0,9 | Ø142 | 30° |
|
| DGATU.160.27.30.50 | 27 | 3000 | 2830 | >80 | 220-240/50-60 | 0,9 | Ø142 | 50° |
|
| DGATU.160.27.40.50 | 27 | 4000 | 2960 | >80 | 220-240/50-60 | 0,9 | Ø142 | 50° |
|
