Housing
Aluminum injection frame with electrostatic powder coating and die-cast aluminum heatsink.
Optics
Opal white polystyrene diffuser with lambertian light distribution.
Led
High-efficacy LED module with CRI>80, achieving L90B50 ≥ 50,000 hours of lifetime.
Driver
Constant current output LED driver with high efficiency and pf >0,9.
Operating Temperature Range
0 °C/+35 °C
Options
* 1 or 3 hours emergency lighting kit
* Dimming via DALI
Color
Ral 9016
Ral 9005
Ral 9006
Dimensions

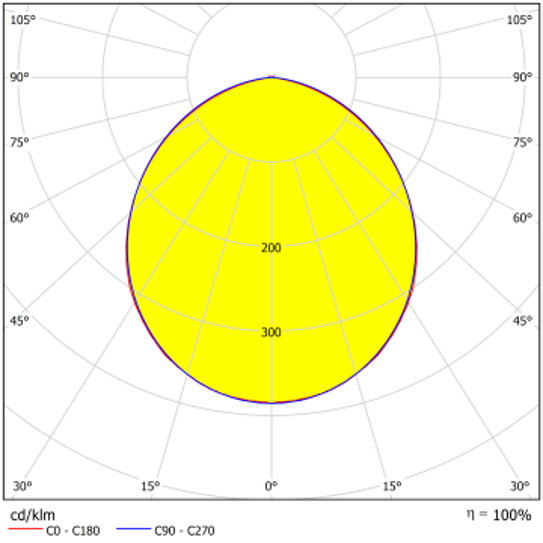

Light Distribution
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Cut-out Size (mm) | Files |
|---|---|---|---|---|---|---|---|---|
| DGMON+.200.13.30 | 13 | 3000 | 1570 | >80 | 220-240/50-60 | 0,8 | Ø175 |
|
| DGMON+.200.13.40 | 13 | 4000 | 1690 | >80 | 220-240/50-60 | 0,8 | Ø175 |
|
| DGMON+.200.17.30 | 17 | 3000 | 2180 | >80 | 220-240/50-60 | 0,8 | Ø175 |
|
| DGMON+.200.17.40 | 17 | 4000 | 2330 | >80 | 220-240/50-60 | 0,8 | Ø175 |
|
