DG 1023 MON+Header

Moon

Ip 54 20Ik 02Ikon 1Toprak YokCeEacAcil Cikis

Housing
Aluminum injection frame with electrostatic powder coating and die-cast aluminum heatsink.

Optics
Opal white polystyrene diffuser with lambertian light distribution.

Led
High-efficacy LED module with CRI>80, achieving L90B50 ≥ 50,000 hours of lifetime.

Driver
Constant current output LED driver with high efficiency and pf >0,9.

Operating Temperature Range
0 °C/+35 °C

Options
* 1 or 3 hours emergency lighting kit
* Dimming via DALI

Color
Ral 9016
Ral 9005
Ral 9006
Dimensions
Dg 1023 Mon Olculer

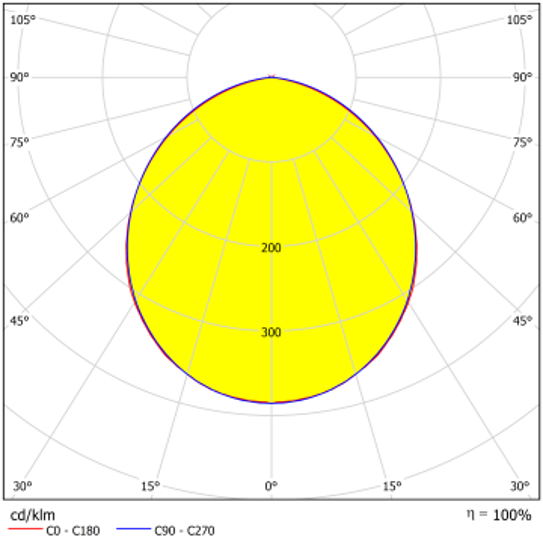

Light Distribution
1023Monplus DG 1023 MON+
Filter By
Technical Data
Type Code Power (w) CCT (K) Light Output (lm) CRI V/Hz Weight (Kg) Cut-out Size (mm) Files
DGMON+.230.21.30 21 3000 2680 >80 220-240/50-60 1 Ø205 Files
DGMON+.230.21.40 21 4000 2930 >80 220-240/50-60 1 Ø205 Files
DGMON+.230.27.30 27 3000 3600 >80 220-240/50-60 1 Ø205 Files
DGMON+.230.27.40 27 4000 3845 >80 220-240/50-60 1 Ø205 Files
