Housing
Aluminum injection frame with electrostatic powder coating and die-cast aluminum heatsink.
Optics
Highly efficient PMMA lens, designed specially for High Power LED.
Led
High-efficacy High Power LED with CRI>80, achieving L70B50 ≥ 50,000 hours of lifetime.
Driver
Constant current output LED driver with high efficiency and pf >0,9.
Options
* Dimming via DALI
* 80° and 50° light distribution for lens

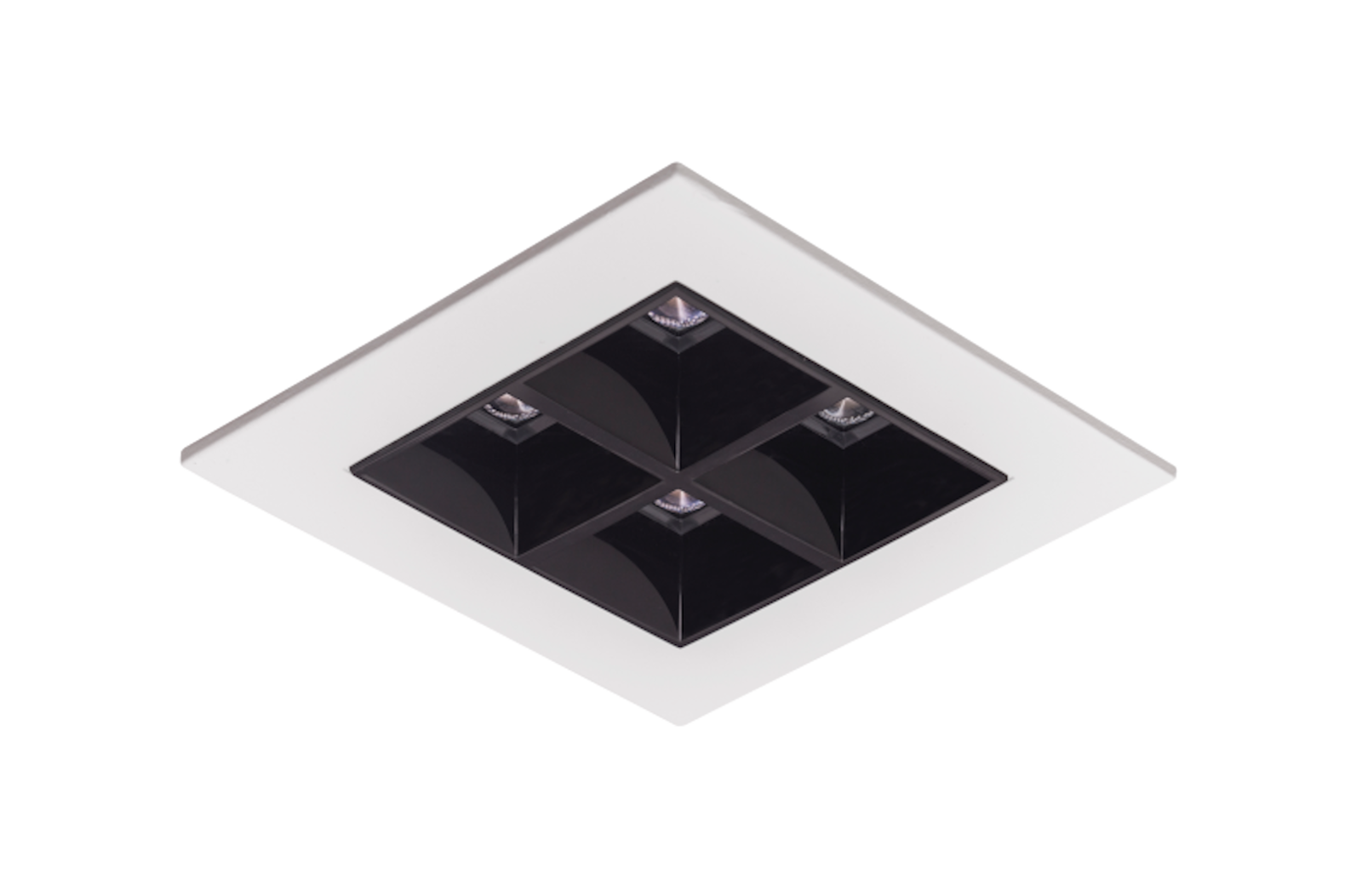

* Black and White color option for reflector

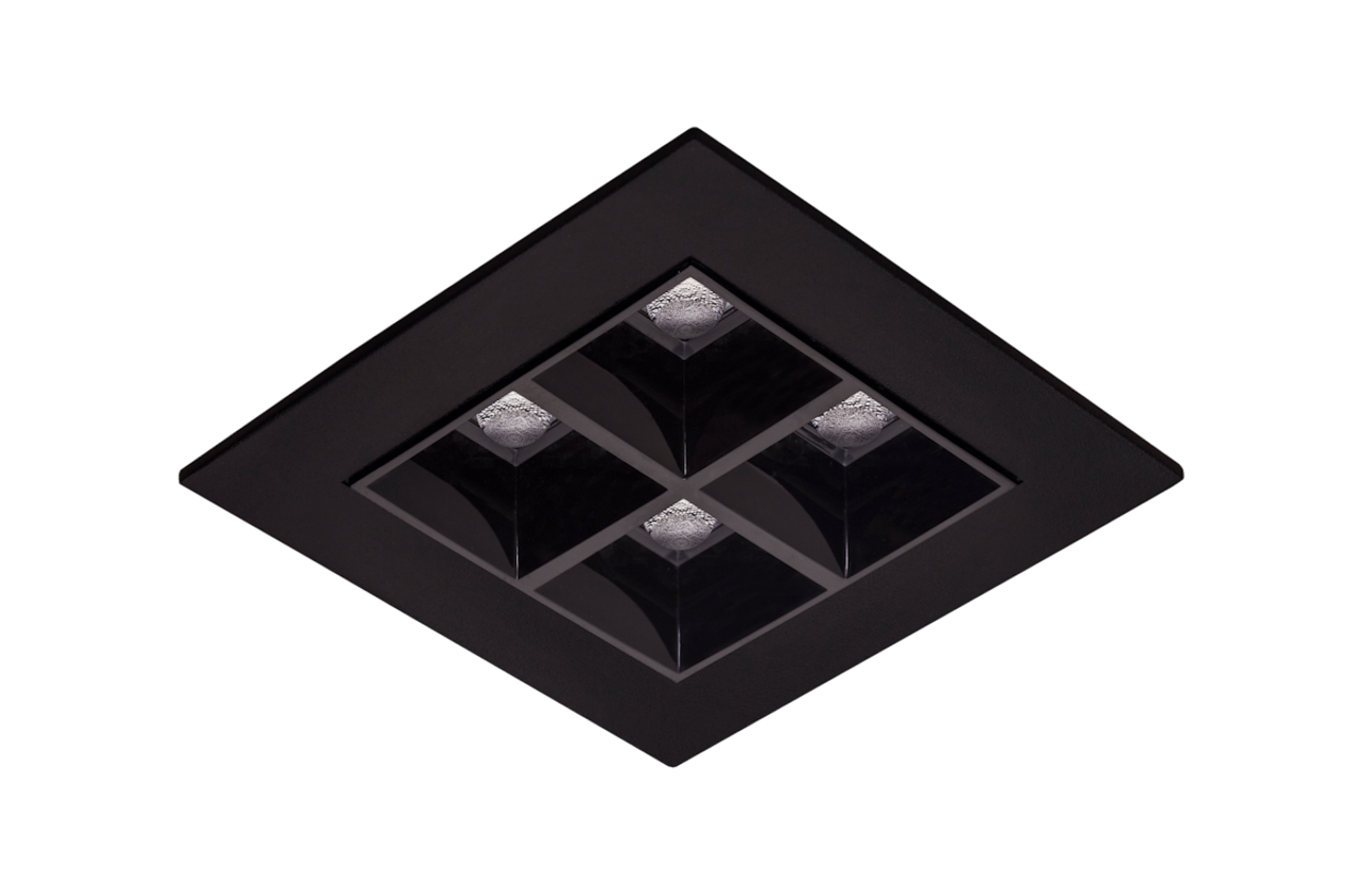

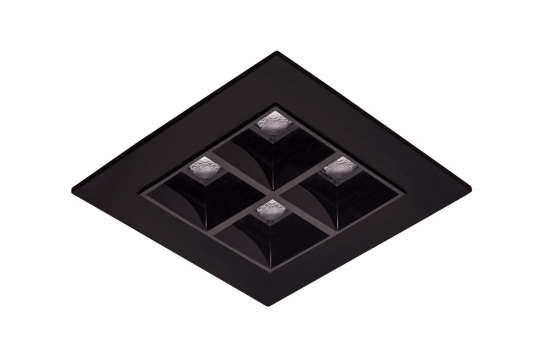

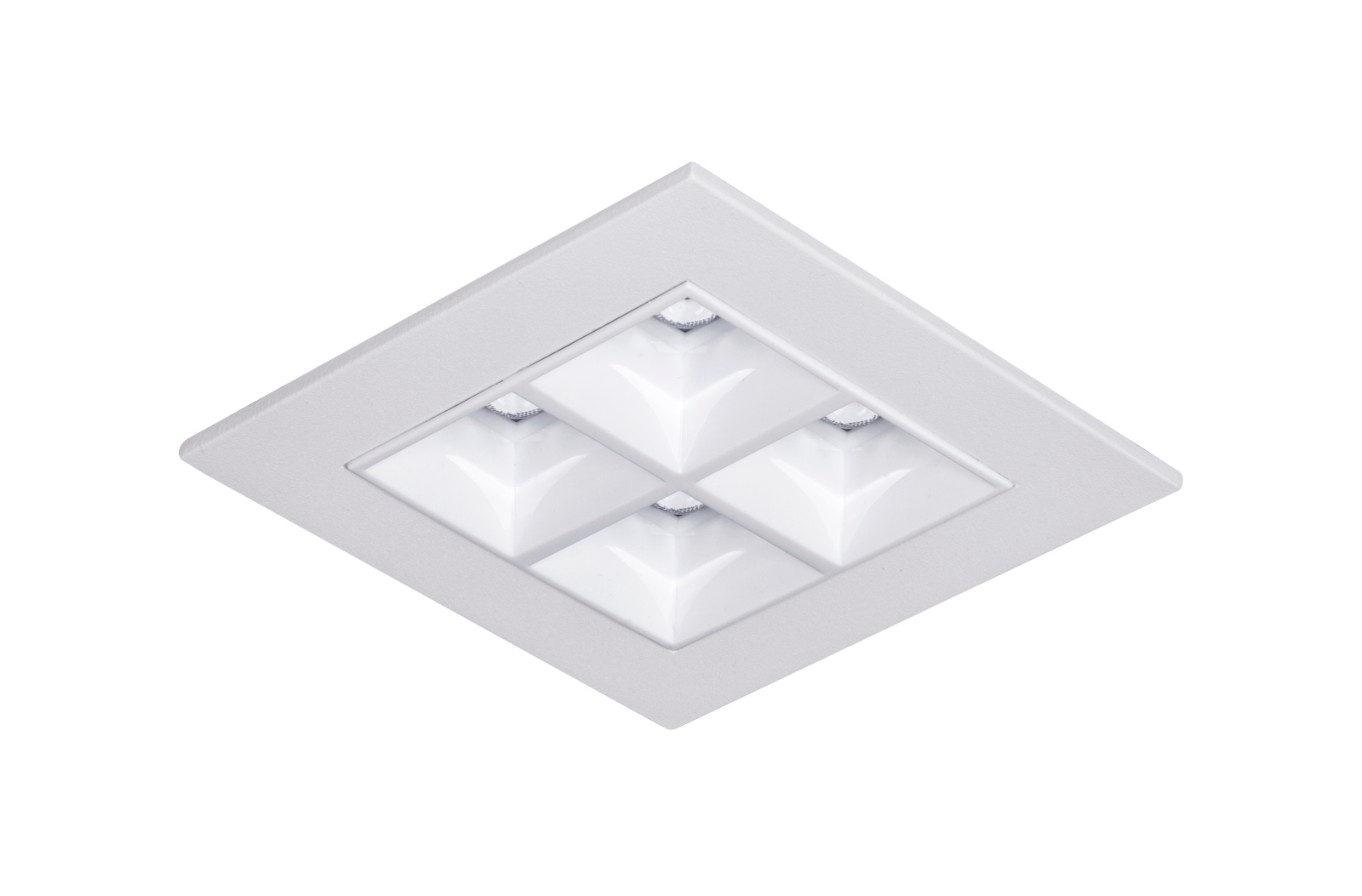

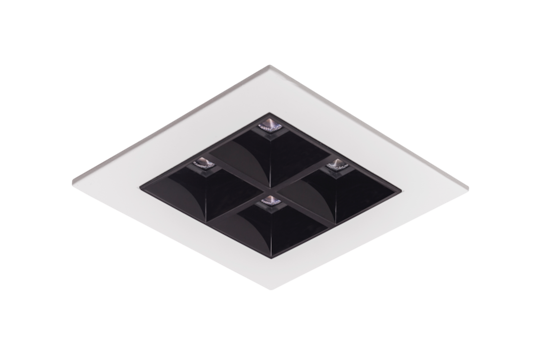

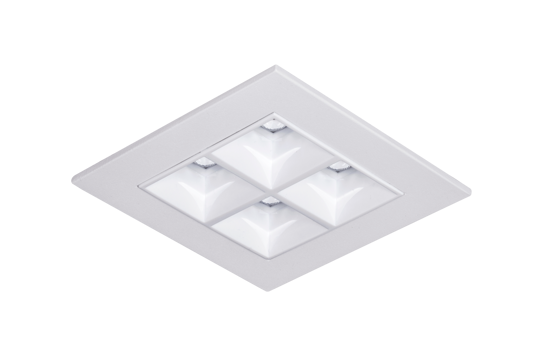

Color
Ral 9016
Ral 9005

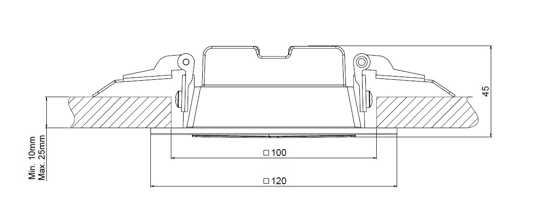

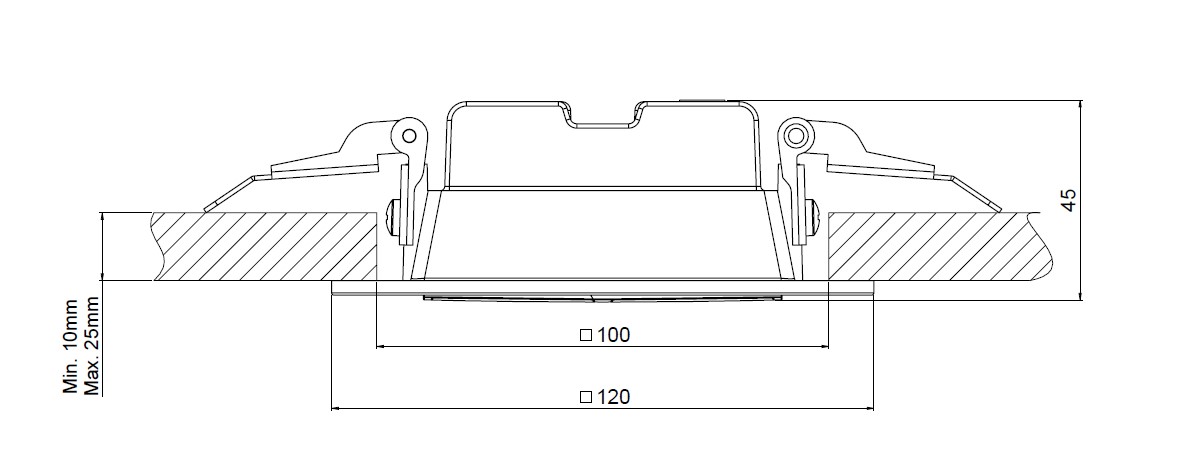

Dimensions
Light Distribution
- 80° White Reflector

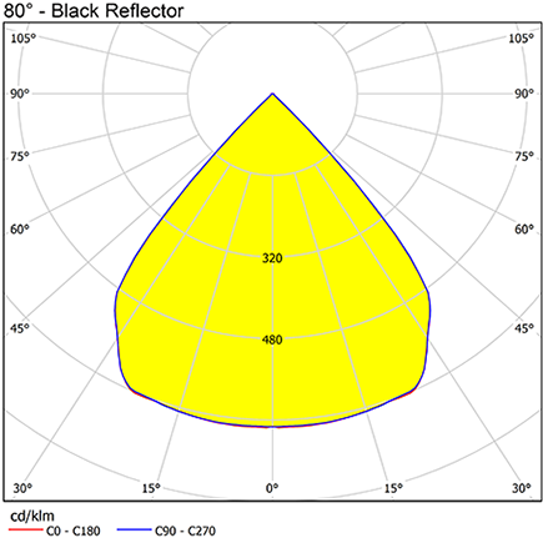

- 80° Black Reflector

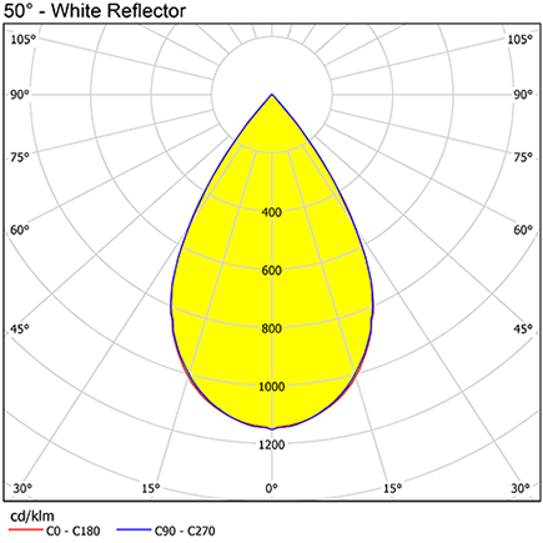

- 50° White Reflector

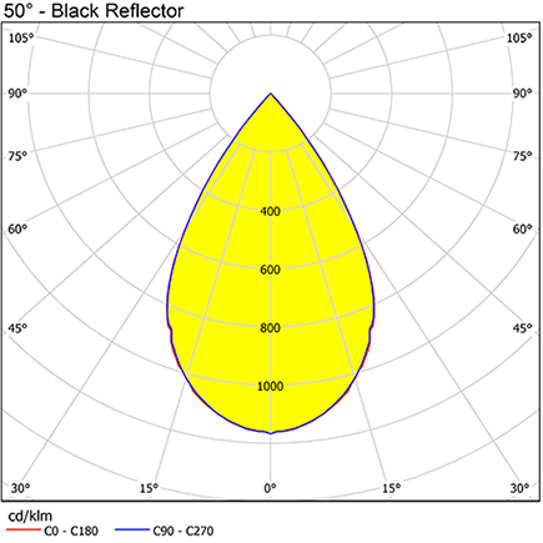

- 50° Black Reflector
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Cut-out Size (mm) | Beam Angle | Color | Files |
|---|---|---|---|---|---|---|---|---|---|---|
| DGCFT.120.5.30.50 | 5 | 3000 | 580 | >80 | 220-240/50-60 | 0,42 | 100x100 | 50° | Beyaz Reflektör (White Reflector) |
|
| DGCFT.120.5.40.50 | 5 | 4000 | 680 | >80 | 220-240/50-60 | 0,42 | 100x100 | 50° | Beyaz Reflektör (White Reflector) |
|
| DGCFT.120.5.30.80 | 5 | 3000 | 560 | >80 | 220-240/50-60 | 0,42 | 100x100 | 80° | Beyaz Reflektör (White Reflector) |
|
| DGCFT.120.5.40.80 | 5 | 4000 | 685 | >80 | 220-240/50-60 | 0,42 | 100x100 | 80° | Beyaz Reflektör (White Reflector) |
|
| DGCFT.120.14.30.50 | 14 | 3000 | 1480 | >80 | 220-240/50-60 | 0,42 | 100x100 | 50° | Beyaz Reflektör (White Reflector) |
|
| DGCFT.120.14.40.50 | 14 | 4000 | 1730 | >80 | 220-240/50-60 | 0,42 | 100x100 | 50° | Beyaz Reflektör (White Reflector) |
|
| DGCFT.120.14.30.80 | 14 | 3000 | 1500 | >80 | 220-240/50-60 | 0,42 | 100x100 | 80° | Beyaz Reflektör (White Reflector) |
|
| DGCFT.120.14.40.80 | 14 | 4000 | 1750 | >80 | 220-240/50-60 | 0,42 | 100x100 | 80° | Beyaz Reflektör (White Reflector) |
|
| DGCFT.120.20.30.50 | 20 | 3000 | 1970 | >80 | 220-240/50-60 | 0,42 | 100x100 | 50° | Beyaz Reflektör (White Reflector) |
|
| DGCFT.120.20.40.50 | 20 | 4000 | 2330 | >80 | 220-240/50-60 | 0,42 | 100x100 | 50° | Beyaz Reflektör (White Reflector) |
|
| DGCFT.120.20.30.80 | 20 | 3000 | 2000 | >80 | 220-240/50-60 | 0,42 | 100x100 | 80° | Beyaz Reflektör (White Reflector) |
|
| DGCFT.120.20.40.80 | 20 | 4000 | 2330 | >80 | 220-240/50-60 | 0,42 | 100x100 | 80° | Beyaz Reflektör (White Reflector) |
|
| DGCFT.120.5.30.50.B | 5 | 3000 | 555 | >80 | 220-240/50-60 | 0,42 | 100x100 | 50° | Siyah Reflektör (Black Reflector) |
|
| DGCFT.120.5.40.50.B | 5 | 4000 | 670 | >80 | 220-240/50-60 | 0,42 | 100x100 | 50° | Siyah Reflektör (Black Reflector) |
|
| DGCFT.120.5.30.80.B | 5 | 3000 | 555 | >80 | 220-240/50-60 | 0,42 | 100x100 | 80° | Siyah Reflektör (Black Reflector) |
|
| DGCFT.120.5.40.80.B | 5 | 4000 | 630 | >80 | 220-240/50-60 | 0,42 | 100x100 | 80° | Siyah Reflektör (Black Reflector) |
|
| DGCFT.120.14.30.50.B | 14 | 3000 | 1450 | >80 | 220-240/50-60 | 0,42 | 100x100 | 50° | Siyah Reflektör (Black Reflector) |
|
| DGCFT.120.14.40.50.B | 14 | 4000 | 1690 | >80 | 220-240/50-60 | 0,42 | 100x100 | 50° | Siyah Reflektör (Black Reflector) |
|
| DGCFT.120.14.30.80.B | 14 | 3000 | 1400 | >80 | 220-240/50-60 | 0,42 | 100x100 | 80° | Siyah Reflektör (Black Reflector) |
|
| DGCFT.120.14.40.80.B | 14 | 4000 | 1630 | >80 | 220-240/50-60 | 0,42 | 100x100 | 80° | Siyah Reflektör (Black Reflector) |
|
| DGCFT.120.20.30.50.B | 20 | 3000 | 1910 | >80 | 220-240/50-60 | 0,42 | 100x100 | 50° | Siyah Reflektör (Black Reflector) |
|
| DGCFT.120.20.40.50.B | 20 | 4000 | 2270 | >80 | 220-240/50-60 | 0,42 | 100x100 | 50° | Siyah Reflektör (Black Reflector) |
|
| DGCFT.120.20.30.80.B | 20 | 3000 | 1870 | >80 | 220-240/50-60 | 0,42 | 100x100 | 80° | Siyah Reflektör (Black Reflector) |
|
| DGCFT.120.20.40.80.B | 20 | 4000 | 2170 | >80 | 220-240/50-60 | 0,42 | 100x100 | 80° | Siyah Reflektör (Black Reflector) |
|
