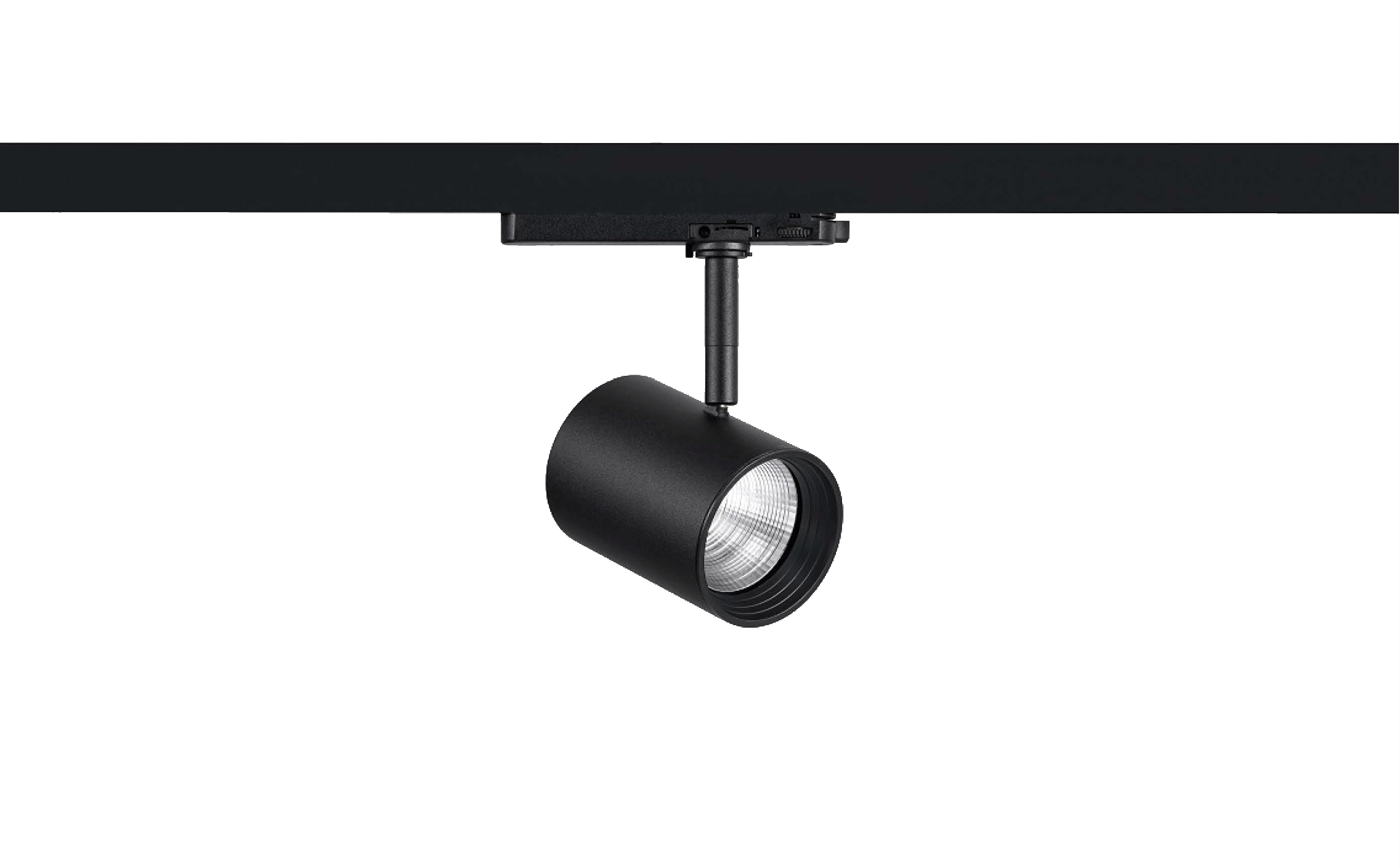

Ds 1009 Crs Header

Crossroad

Ip 20Ikon 25Toprak Yok355 DereceDerece 5 90

Installation
Installation on three-phase track.

Housing
Electrostatic powder coating aluminium and die-cast aluminum heatsink.

Optics
Designed specially for LED modules. Polycarbonate with metallic reflective surface coating

Led
High-efficacy COB LED with CRI>80, achieving L70B50 ≥ 50,000 hours of lifetime.

Driver
Constant current output LED driver with high efficiency and pf >0,9.

Ambient Temperature
0 °C /+25 °C

Options
Dimming via DALI

Color
Ral 9016
Ral 9005

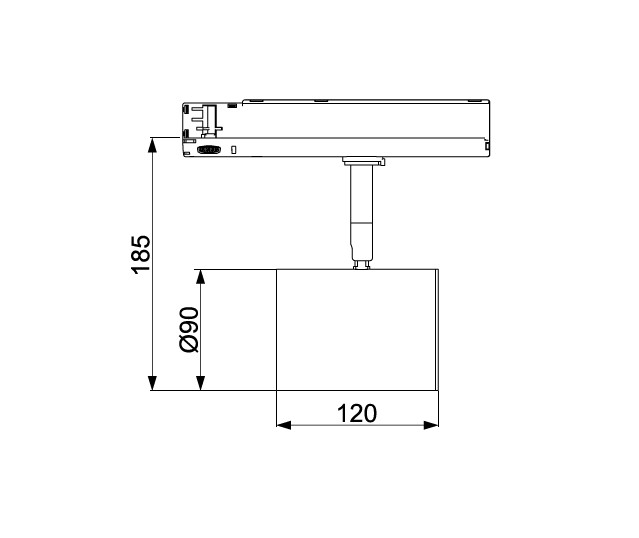

Dimensions
Ds1009crs Teknik Cizim
Light Distribution

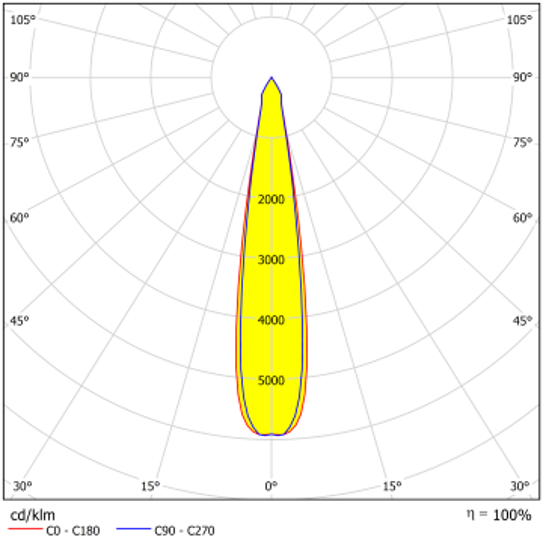

DSCRS.09.31.40.19.80 DSCRS.09.31.40.19.80

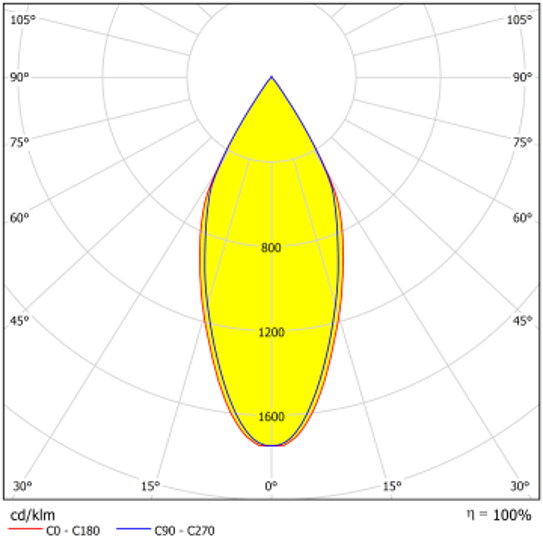

DSCRS.09.31.40.35.80 DSCRS.09.31.40.35.80

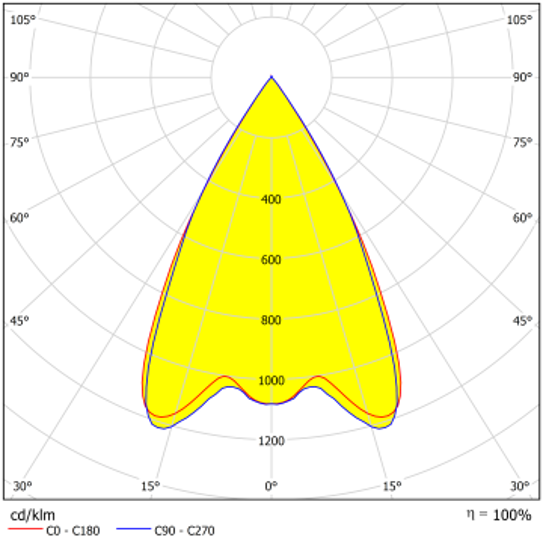

DSCRS.09.31.40.60.80 DSCRS.09.31.40.60.80
  • DSCRS.09.31.40.19.80
  • DSCRS.09.31.40.35.80
  • DSCRS.09.31.40.60.80
Filter By
Technical Data
Type Code Power (w) CCT (K) Light Output (lm) CRI V/Hz Weight (Kg) Beam Angle Files
DSCRS.09.20.30.19.80 20 3000 2090 >80 220-240/50-60 0,65 19° Files
DSCRS.09.20.40.19.80 20 4000 2250 >80 220-240/50-60 0,65 19° Files
DSCRS.09.20.30.35.80 20 3000 2040 >80 220-240/50-60 0,65 35° Files
DSCRS.09.20.40.35.80 20 3000 2190 >80 220-240/50-60 0,65 35° Files
DSCRS.09.20.30.60.80 20 3000 2050 >80 220-240/50-60 0,65 60° Files
DSCRS.09.20.40.60.80 20 4000 2200 >80 220-240/50-60 0,65 60° Files
DSCRS.09.31.30.19.80 31 3000 3000 >80 220-240/50-60 0,65 19° Files
DSCRS.09.31.40.19.80 31 4000 3230 >80 220-240/50-60 0,65 19° Files
DSCRS.09.31.30.35.80 31 3000 2970 >80 220-240/50-60 0,65 35° Files
DSCRS.09.31.40.35.80 31 4000 3190 >80 220-240/50-60 0,65 35° Files
DSCRS.09.31.30.60.80 31 3000 2940 >80 220-240/50-60 0,65 60° Files
DSCRS.09.31.40.60.80 31 4000 3160 >80 220-240/50-60 0,65 60° Files
DSCRS.09.20.32.19.90 20 3200 1850 >90 220-240/50-60 0,65 19° Files
DSCRS.09.20.40.19.90 20 4000 1970 >90 220-240/50-60 0,65 19° Files
DSCRS.09.20.32.35.90 20 3200 1770 >90 220-240/50-60 0,65 35° Files
DSCRS.09.20.40.35.90 20 3000 1890 >90 220-240/50-60 0,65 35° Files
LDT
DSCRS.09.20.32.65.90 20 3200 1740 >90 220-240/50-60 0,65 65° Files
DSCRS.09.20.40.65.90 20 4000 1860 >90 220-240/50-60 0,65 65° Files
LDT
DSCRS.09.31.32.19.90 31 3200 2690 >90 220-240/50-60 0,65 19° Files
DSCRS.09.31.40.19.90 31 4000 2830 >90 220-240/50-60 0,65 19° Files
DSCRS.09.31.32.35.90 31 3200 2650 >90 220-240/50-60 0,65 35° Files
DSCRS.09.31.40.35.90 31 4000 2790 >90 220-240/50-60 0,65 35° Files
DSCRS.09.31.32.65.90 31 3200 2640 >90 220-240/50-60 0,65 65° Files
DSCRS.09.31.40.65.90 31 4000 2770 >90 220-240/50-60 0,65 65° Files
