Installation
Installation on three-phase track.
Housing
Aluminum injection frame with electrostatic powder coating and die-cast aluminum heatsink.
Optics
Anodized aluminum reflector, designed specially for LED modules.
Led
High-efficacy COB LED with CRI>80, achieving L70B50 ≥ 50,000 hours of lifetime.
Driver
Constant current output LED driver with high efficiency and pf >0,9.
Ambient Temperature
0 °C /+25 °C
Options
* Clear tempered glass
* Dimming via DALI
Color
Ral 9016
Ral 9005

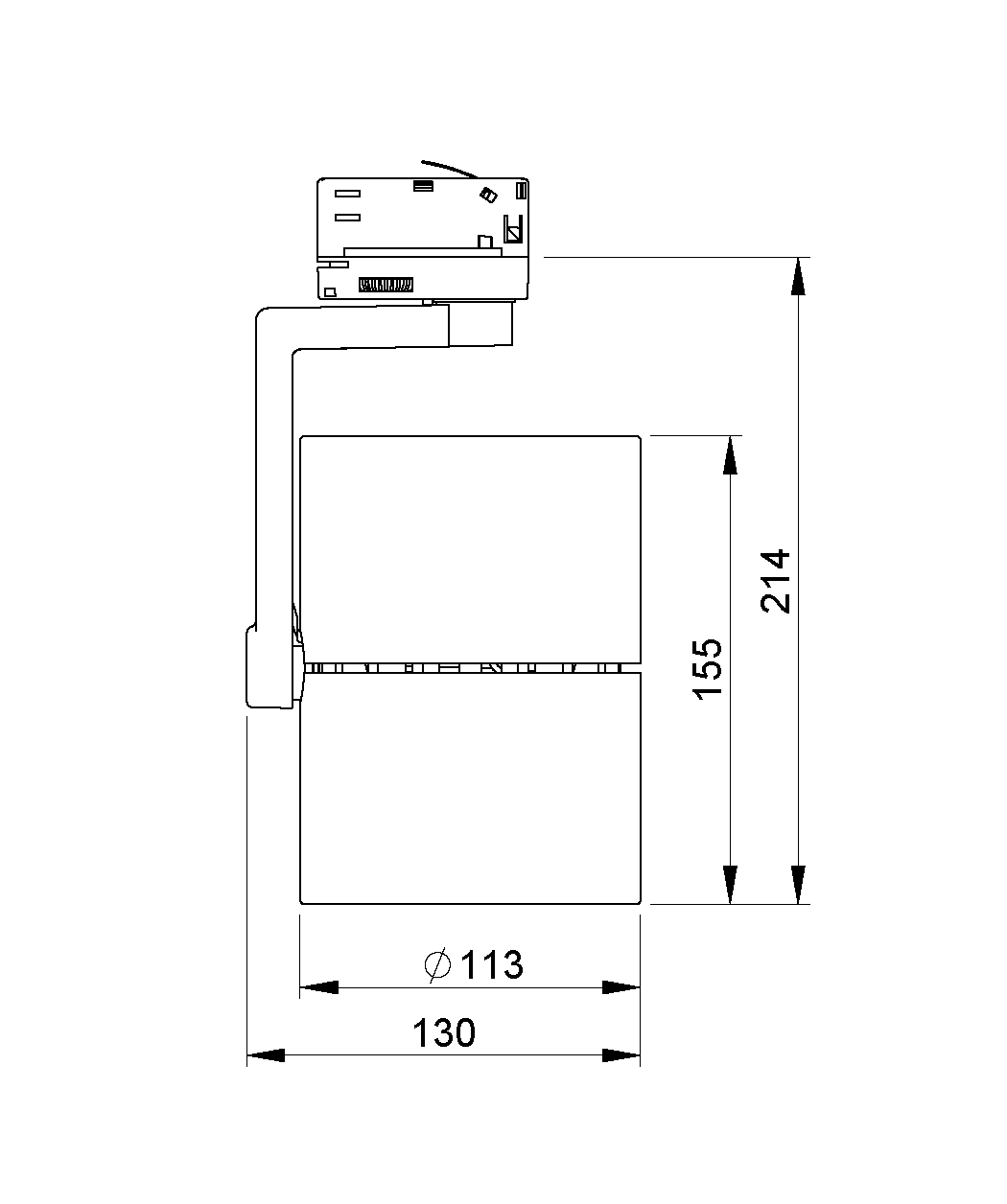

Dimensions
Light Distribution

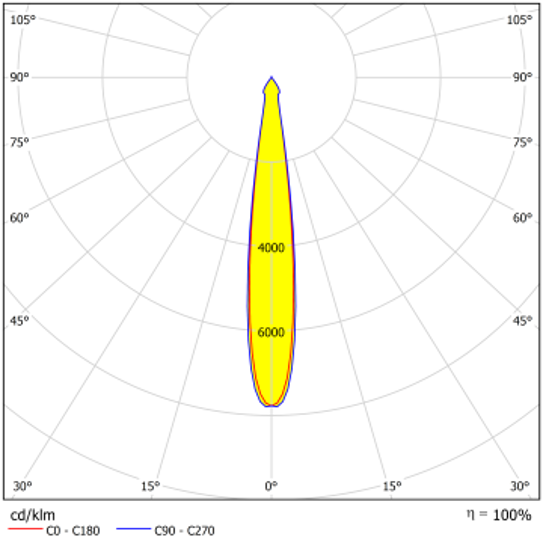

- DSPLN.11.35.40.15.80

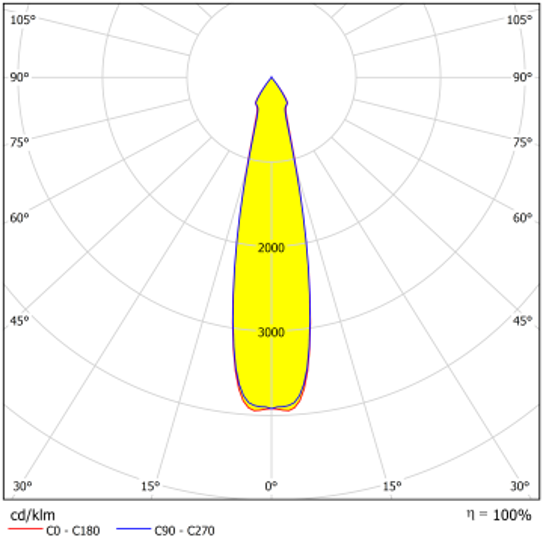

- DSPLN.11.35.40.24.80
- DSPLN.11.35.40.42.80
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Beam Angle | Files |
|---|---|---|---|---|---|---|---|---|
| DSPLN.11.19.30.15.80 | 19 | 3000 | 2160 | >80 | 220-240/50-60 | 1,25 | 15° |
|
| DSPLN.11.19.40.15.80 | 19 | 4000 | 2290 | >80 | 220-240/50-60 | 1,25 | 15° |
|
| DSPLN.11.19.30.24.80 | 19 | 3000 | 2140 | >80 | 220-240/50-60 | 1,25 | 24° |
|
| DSPLN.11.19.40.24.80 | 19 | 4000 | 2280 | >80 | 220-240/50-60 | 1,25 | 24° |
|
| DSPLN.11.19.30.42.80 | 19 | 3000 | 2160 | >80 | 220-240/50-60 | 1,25 | 42° |
|
| DSPLN.11.19.40.42.80 | 19 | 4000 | 2220 | >80 | 220-240/50-60 | 1,25 | 42° |
|
| DSPLN.11.27.30.15.80 | 27 | 3000 | 2850 | >80 | 220-240/50-60 | 1,25 | 15° |
|
| DSPLN.11.27.40.15.80 | 27 | 4000 | 2980 | >80 | 220-240/50-60 | 1,25 | 15° |
|
| DSPLN.11.27.30.24.80 | 27 | 3000 | 2820 | >80 | 220-240/50-60 | 1,25 | 24° |
|
| DSPLN.11.27.40.24.80 | 27 | 4000 | 2930 | >80 | 220-240/50-60 | 1,25 | 24° |
|
| DSPLN.11.27.30.42.80 | 27 | 3000 | 2790 | >80 | 220-240/50-60 | 1,25 | 42° |
|
| DSPLN.11.27.40.42.80 | 27 | 4000 | 2920 | >80 | 220-240/50-60 | 1,25 | 42° |
|
| DSPLN.11.35.30.15.80 | 35 | 3000 | 3290 | >80 | 220-240/50-60 | 1,25 | 15° |
|
| DSPLN.11.35.40.15.80 | 35 | 4000 | 3510 | >80 | 220-240/50-60 | 1,25 | 15° |
|
| DSPLN.11.35.30.24.80 | 35 | 3000 | 3250 | >80 | 220-240/50-60 | 1,25 | 24° |
|
| DSPLN.11.35.40.24.80 | 35 | 4000 | 3440 | >80 | 220-240/50-60 | 1,25 | 24° |
|
| DSPLN.11.35.30.42.80 | 35 | 3000 | 3560 | >80 | 220-240/50-60 | 1,25 | 42° |
|
| DSPLN.11.35.40.42.80 | 35 | 4000 | 3950 | >80 | 220-240/50-60 | 1,25 | 42° |
|
| DSPLN.11.19.30.15.90 | 19 | 3000 | 1950 | >90 | 220-240/50-60 | 1,25 | 15° |
|
| DSPLN.11.19.40.15.90 | 19 | 4000 | 2025 | >90 | 220-240/50-60 | 1,25 | 15° |
|
| DSPLN.11.19.30.24.90 | 19 | 3000 | 1900 | >90 | 220-240/50-60 | 1,25 | 24° |
|
| DSPLN.11.19.40.24.90 | 19 | 4000 | 1990 | >90 | 220-240/50-60 | 1,25 | 24° |
|
| DSPLN.11.19.30.42.90 | 19 | 3000 | 1870 | >90 | 220-240/50-60 | 1,25 | 42° |
|
| DSPLN.11.19.40.42.90 | 19 | 4000 | 1960 | >90 | 220-240/50-60 | 1,25 | 42° |
|
| DSPLN.11.27.30.15.90 | 27 | 3000 | 2540 | >90 | 220-240/50-60 | 1,25 | 15° |
|
| DSPLN.11.27.40.15.90 | 27 | 4000 | 2800 | >90 | 220-240/50-60 | 1,25 | 15° |
|
| DSPLN.11.27.30.24.90 | 27 | 3000 | 2430 | >90 | 220-240/50-60 | 1,25 | 24° |
|
| DSPLN.11.27.40.24.90 | 27 | 4000 | 2750 | >90 | 220-240/50-60 | 1,25 | 24° |
|
| DSPLN.11.27.30.42.90 | 27 | 3000 | 2540 | >90 | 220-240/50-60 | 1,25 | 42° |
|
| DSPLN.11.27.40.42.90 | 27 | 4000 | 2730 | >90 | 220-240/50-60 | 1,25 | 42° |
|
| DSPLN.11.35.30.15.90 | 35 | 3000 | 3120 | >90 | 220-240/50-60 | 1,25 | 15° |
|
| DSPLN.11.35.40.15.90 | 35 | 4000 | 3430 | >90 | 220-240/50-60 | 1,25 | 15° |
|
| DSPLN.11.35.30.24.90 | 35 | 3000 | 3065 | >90 | 220-240/50-60 | 1,25 | 24° |
|
| DSPLN.11.35.40.24.90 | 35 | 4000 | 3260 | >90 | 220-240/50-60 | 1,25 | 24° |
|
| DSPLN.11.35.30.42.90 | 35 | 3000 | 3110 | >90 | 220-240/50-60 | 1,25 | 42° |
|
| DSPLN.11.35.40.42.90 | 35 | 4000 | 3200 | >90 | 220-240/50-60 | 1,25 | 42° |
|
