Installation
Installation on three-phase track.
Housing
Sheet steel with electrostatic powder coating.
Lamp Base
Porcelain E-27
Led
High efficacy PAR30 LED lamp with integrated driver and heatsink. Connected directly to the mains. Achieves 40,000 hours of lifetime and CRI > 80.
Ambient Temperature
0 °C /+25 °C
Color
Ral 9016
Ral 9005
Ral 9006

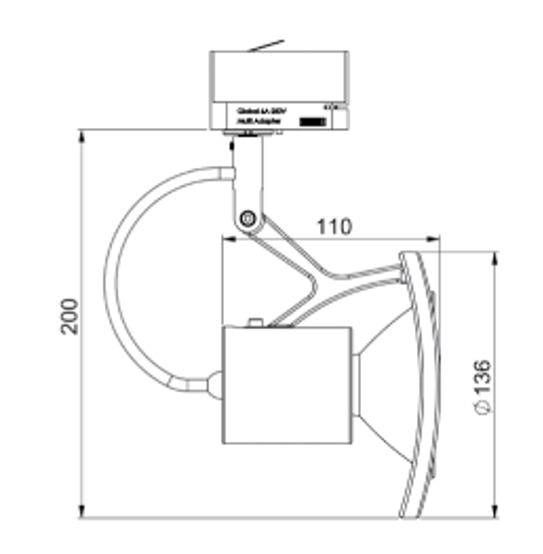

Dimensions

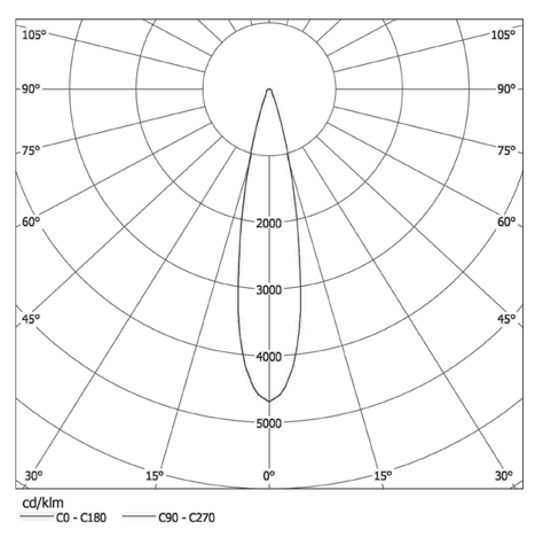

Light Distribution
Downloads
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Beam Angle |
|---|---|---|---|---|---|---|---|
| DSMRP.136.13.27.33 | 13 | 2700 | 750 | >80 | 220-240/50-60 | 0,96 | 33° |
