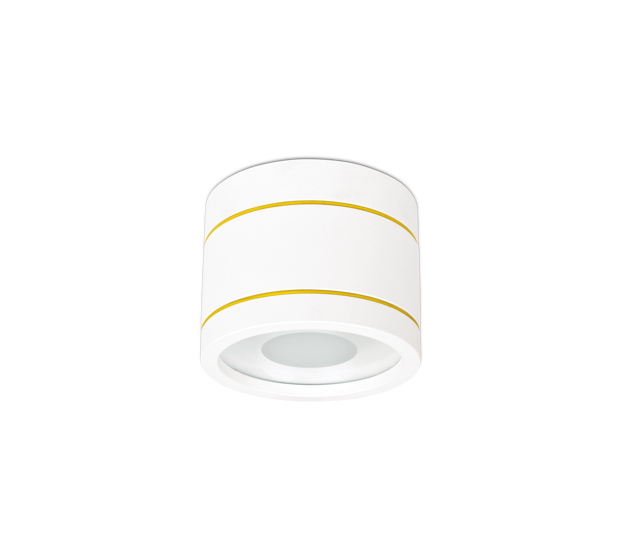

Ds 1015 Rol Header

Roller

Ip 54Ik 06Ikon 1ToprakCeEacIndoor

Housing
Circular formed aluminum body with electrostatic powder coating.

Glass
Tempered glass

Led
High efficacy PAR30 LED lamp with integrated driver and heatsink. Connected directly to the mains. Achieves 40,000 hours of lifetime and CRI > 80.

Lamp Base
Porcelain E-27

Color
Ral 9016
Ral 9005
Ral 9006

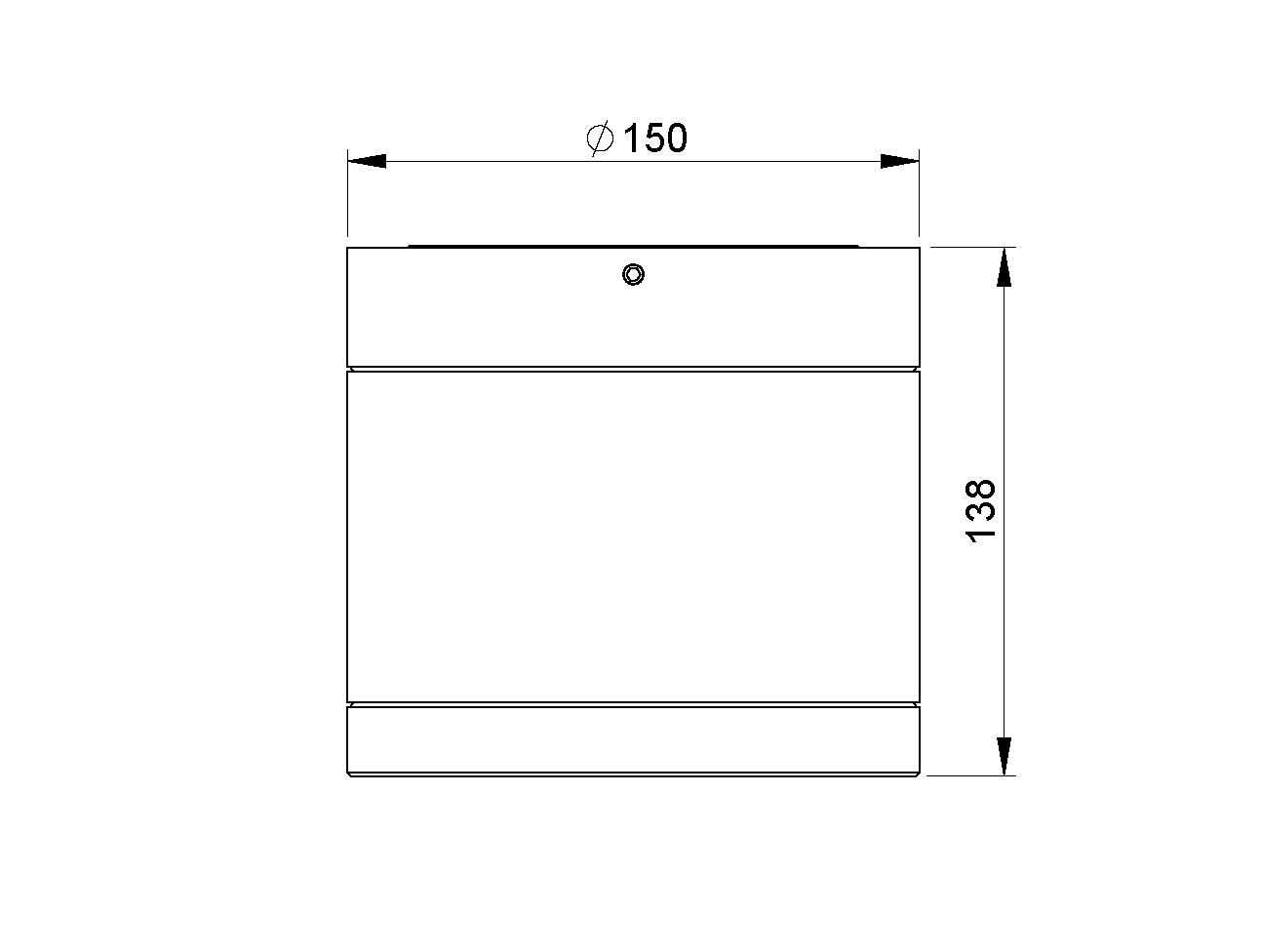

Dimensions
Ds 1015 Rol Katalog

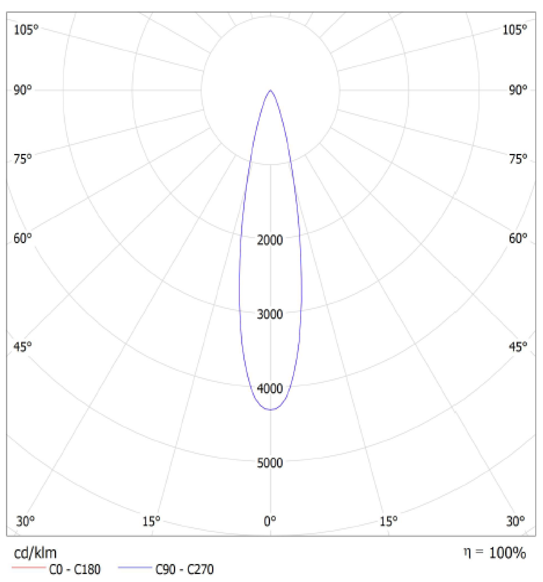

Light Distribution
Ds1015rol Ide DS 1015 ROL
Filter By
Technical Data
Type Code Power (w) CCT (K) Light Output (lm) CRI V/Hz Weight (Kg) Files
DSROL.150.10.30 10 3000 940 >80 220-240/50-60 1,4 Files
DSROL.150.10.40 10 4000 940 >80 220-240/50-60 1,4 Files
