Housing
Aluminum injection frame with electrostatic powder coating and die-cast aluminum heatsink.
Optics
Opal white polystyrene diffuser with lambertian light distribution.
Led
High-efficacy Mid power LED module with CRI>80, achieving L90B50 ≥ 50,000 hours of lifetime.
Driver
Constant current output LED driver with high efficiency and Pf≥0.95
Operating Temperature Range
0 °C/+35 °C
Options
Dimming via DALI
Color
Ral 9016
Ral 9005
Ral 9006
Dimensions

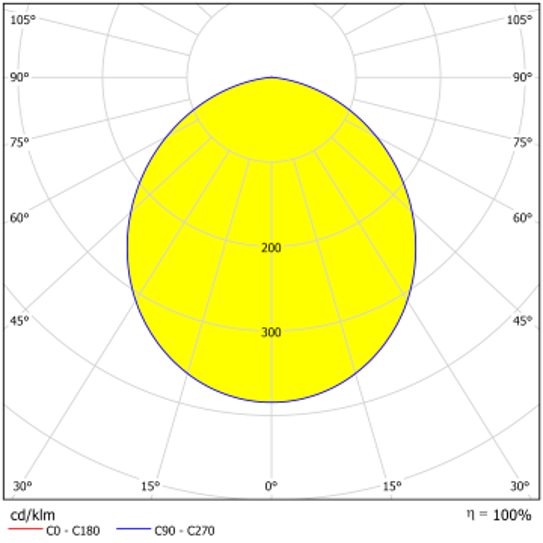

Light Distribution
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Files |
|---|---|---|---|---|---|---|---|
| DSMON.187.9.40 | 9 | 4000 | 795 | >80 | 220-240/50-60 | 0,9 |
|
| DSMON.187.9.30 | 9 | 3000 | 740 | >80 | 220-240/50-60 | 0,9 |
|
| DSMON.187.13.30 | 13 | 3000 | 975 | >80 | 220-240/50-60 | 0,9 |
|
| DSMON.187.13.40 | 13 | 4000 | 1050 | >80 | 220-240/50-60 | 0,9 |
|
