Housing
Electrostatic matte powder painted aluminum.
Optics
Opal white diffuser with lambertian light distribution and high transmissivity.
Led
High-efficacy LED module with CRI>80, achieving L90B50 ≥ 50,000 hours of lifetime.
Driver
Constant current output LED driver with high efficiency and Pf≥0.95
Operating Temperature Range
0 °C/+35 °C
Options
1 or 3 hours emergency lighting kit
Dimming via DALI
Color
Ral 9016
Ral 9005
Ral 9006

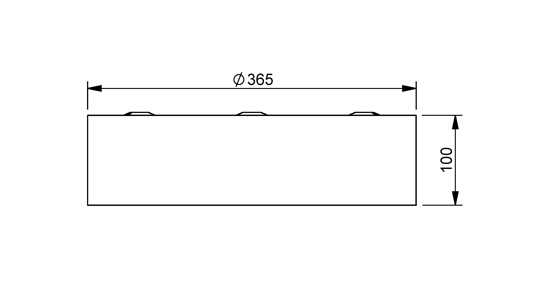

Dimensions

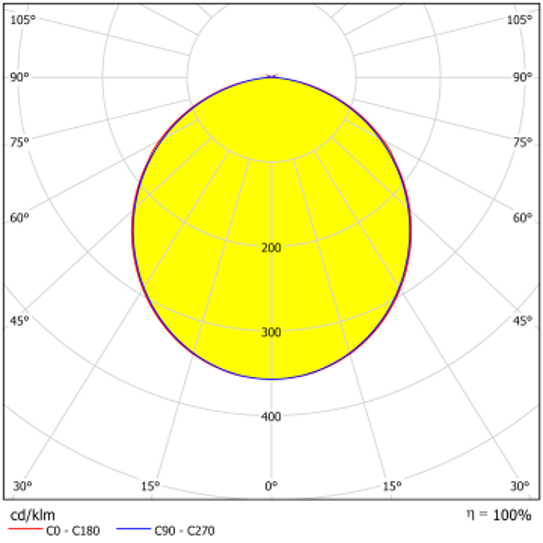

Light Distribution
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Files |
|---|---|---|---|---|---|---|---|
| DSLOT+.360.16.30 | 16 | 3000 | 1950 | >80 | 220-240/50-60 | 2,9 |
|
| DSLOT+.360.16.40 | 16 | 4000 | 2070 | >80 | 220-240/50-60 | 2,9 |
|
