Neat Fixed

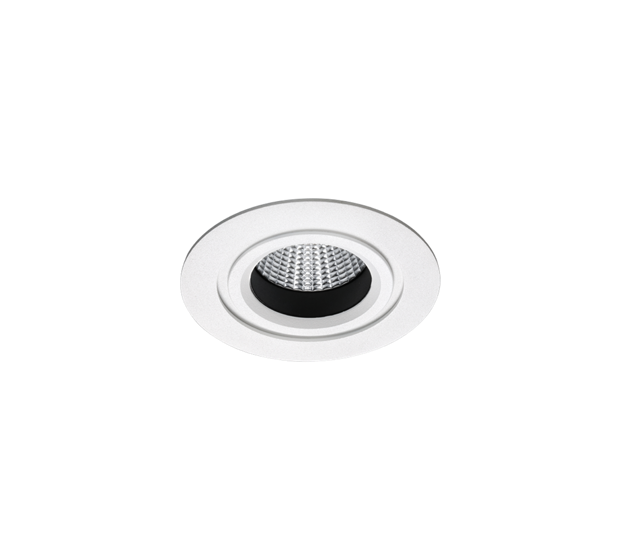

Fixed compact round downlight for medium output applications. High end finish and easy to customize with accessories and colour combinations. Neat comes in a variety of lumen packages, beam angles, colour temperatures and offers CRI80 as well as CRI90. The driver can be either a fixed output type as well as DALI. Neat is available as a directional variant with identical format and design.

DESCRIPTION
Compact ceiling recessed downlight made of steel and aluminium. Powder coated in either structural white or black paint. Neat is designed to personalise with accessories such as an anti-glare baffle, a softening patterned glass or a honeycomb louvre. The setup of the product allows an easy integration and even a combination of these accessories.

LED DATA
Cree COB modules integrated, ensuring a great performance and high system efficacy.

RANGE
The Neat range comes in a fixed version and a directional version, in the same design and format so that both can be perfectly combined in one installation. Various versions are available: 1000lm and 1800lm in 2700, 3000 and 4000K, both CRI80+ and CRI90+, both with either a fixed output driver or a DALI driver.

POWER SUPPLY
230V (LED driver included)

INSTALLATION
Ceiling recessed by means of torsion springs.

Technical Data
Type Code Power (w) CCT (K) Light Output (lm) CRI V/Hz
KOD EKLENECEK 8 2700 930 >80 220-240/50-60
