Installation
Installation on three-phase track.
Housing
Electrostatic powder painted ,aluminum extrusion profile
Optics
Optic acrylic lens
Reflector
Matt anodized aluminium
Louver
Anti-glare electrostatic powder painted sheet
Led
High-efficacy mid power LED with CRI>80, achieving L70B50 ≥ 50,000 hours of lifetime.
Driver
Constant current output LED driver with high efficiency and Pf≥0.95
Color
Ral 9016
Ral 9005
Dimensions

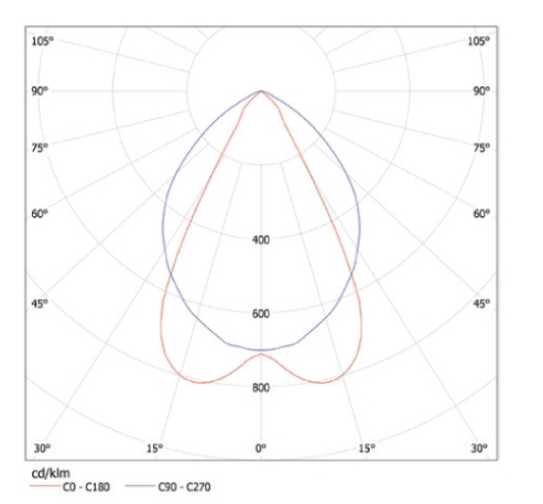

Light Distribution
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | L (mm) | L1 (mm) | Files |
|---|---|---|---|---|---|---|---|---|---|
| SRPAP.880.42.30.80 | 42 | 3000 | 3340 | >80 | 220-240/50-60 | 0,14 | 880 | 990 |
|
| SRPAN.880.42.40 | 42 | 4000 | 3500 | >80 | 220-240/50-60 | 0,14 | 880 | 990 |
|
| SRPAP.1450.68.30.80 | 68 | 3000 | 4510 | >80 | 220-240/50-60 | 0,14 | 1450 | 1567 |
|
| SRPAP.1450.68.40.80 | 68 | 4000 | 4800 | >80 | 220-240/50-60 | 0,14 | 1450 | 1567 |
|
