Housing
Electrostatic powder painted ,aluminum extrusion profile
Optics
Optic acrylic lens
Reflector
Matt anodized aluminium
Louver
Anti-glare electrostatic powder painted sheet
Led
High-efficacy mid power LED with CRI>80, achieving L70B50 ≥ 50,000 hours of lifetime.
Driver
Constant current output LED driver with high efficiency and Pf≥0.95
Color
Ral 9016
Ral 9005
Ral 9006
Dimensions

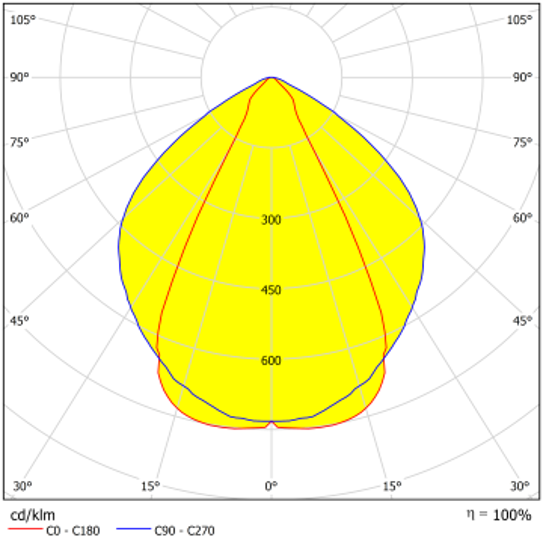

Light Distribution
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Beam Angle | L (mm) | L1 (mm) | Files |
|---|---|---|---|---|---|---|---|---|---|---|
| SR 0880 PAN SRPAN.880.42.30.55/85 | 42 | 3000 | 4510 | >80 | 220-240/50-60 | 3 | 55°/85° | 880 | 990 |
|
| SR 0880 PAN SRPAN.880.42.40.55/85 | 42 | 4000 | 4800 | >80 | 220-240/50-60 | 3 | 55°/85° | 880 | 990 |
|
| SR 1450 PAN SRPAN.1450.68.30.55/85 | 68 | 3000 | 7750 | >80 | 220-240/50-60 | 4,90 | 55°/85° | 1450 | 1567 |
|
| SR 1450 PAN SRPAN.1450.68.40.55/85 | 68 | 4000 | 8240 | >80 | 220-240/50-60 | 4,90 | 55°/85° | 1450 | 1567 |
|
| SR 0600 PAN SRPAN.600.29.30.55/85 | 29 | 3000 | 3060 | >80 | 220-240/50-60 | 2,50 | 55°/85° | 602 | 710 |
|
| SR 0600 PAN SR.PAN.600.29.40.55/85 | 29 | 4000 | 3250 | >80 | 220-240/50-60 | 2,50 | 55°/85° | 602 | 710 |
|
| SR 1450 PAP (1) SRDAN.1450.72.30.55/85 | 63 | 3000 | 6000 | >80 | 220-240/50-60 | 4,90 | ||||
| SR 1450 PAP (1) SRDAN.1450.72.40.55/85 | 63 | 4000 | 6440 | >80 | 220-240/50-60 | 4,90 | ||||
| SR 1450 PAP (1) SRDAN.1450.72.30.55/85 (1) | 144 | 3000 | 13800 | >80 | 220-240/50-60 | 4,90 | ||||
| SR 1450 PAP (1) SRDAN.1450.72.30.55/85 (2) | 144 | 4000 | 14800 | >80 | 220-240/50-60 | 4,90 |
