Housing
Produced through injection method, stroke and UV ray resistant Polycarbonate (PC).
Optics
Produced through injection method, strokeresistant, opal acrylic (PMMA) diffuser.
Led
High-efficacy LED MODULE with CRI>80, achieving L90B50 ≥ 50,000 hours of lifetime.
Gasket
EPDM material monoblock gasket
Interior Housing
High quality steel sheet with electrostatic powder coating, mounted with special clips.
Driver
Constant current output LED driver with high efficiency and Pf≥0.95.
Ambient Temperature
-20 °C/+35 °C (With Emergency Lighting Unit : +5 °C/+30 °C)
Options
1 or 3 hours emergency lighting kit
Dimming via DALI
With sensor
Dimensions

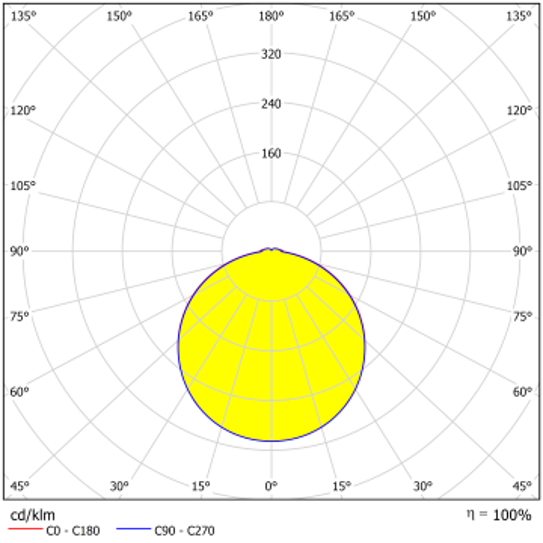

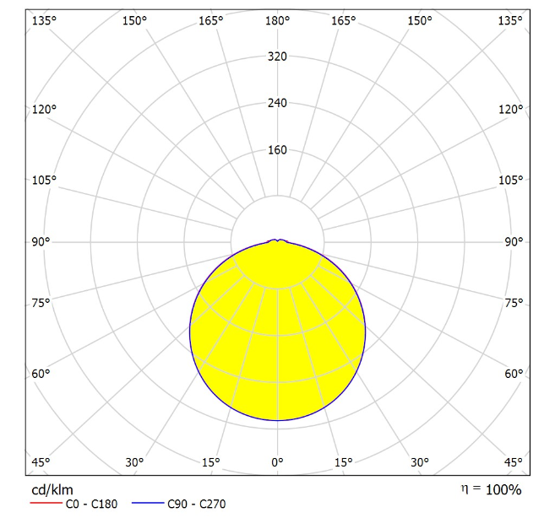

Light Distribution
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Files |
|---|---|---|---|---|---|---|---|
| EOPC.360.15.30 | 15 | 3000 | 1550 | >80 | 220-240/50-60 | 2 |
|
| EOPC.360.15.40 | 15 | 4000 | 1650 | >80 | 220-240/50-60 | 2 |
|
| EOPC.360.21.30 | 21 | 3000 | 2100 | >80 | 220-240/50-60 | 2 |
|
| EOPC.360.21.40 | 21 | 4000 | 2230 | >80 | 220-240/50-60 | 2 |
|
| EOPC.360.27.30 | 27 | 3000 | 2700 | >80 | 220-240/50-60 | 2 |
|
| EOPC.360.27.40 | 27 | 4000 | 2870 | >80 | 220-240/50-60 | 2 |
|
