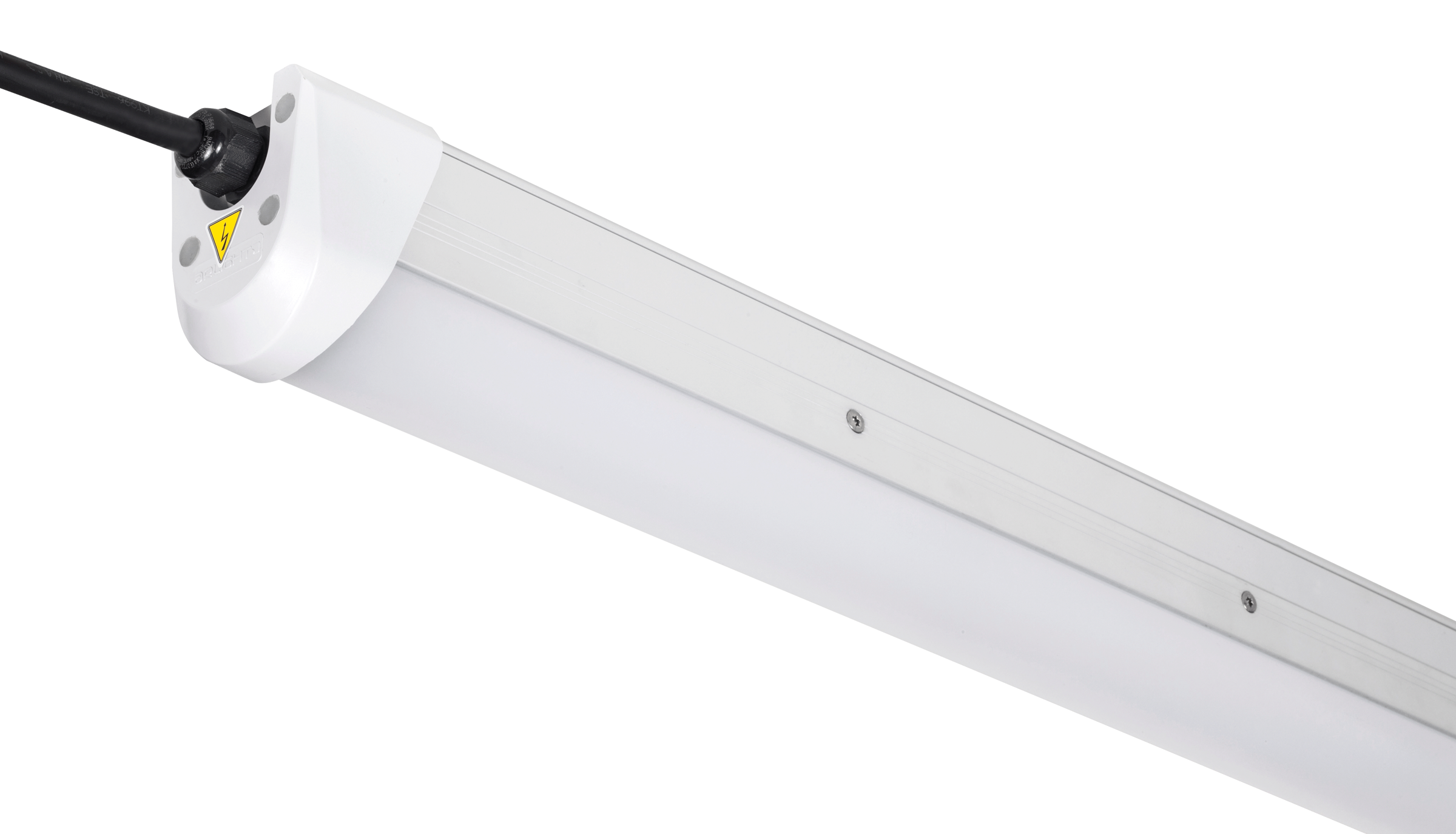

Housing
Matte natural anodized, aluminum extrusion profile and stainless-steel mounting accessories with polycarbonate end-cap.
Optics
Opal, white, diffusing polycarbonate lens with lambertian light distribution.
Led
High efficacy mid-power LED with CRI>80. Efficacy up to 145 lm/W L90B50 > 50,000 hours of life time.
Driver
Constant current, have high efficency and high power factor correction PF>0.9
Gasket
Silicone
Certificate
II 3G Ex nR IIC T6 Gc
II 3D Ex tc IIIC T85°C Dc
Ambient Temperature
-25 °C/+40 °C (With Emergency Lighting Unit : +5 °C/+30 °C)
Options
1 or 3 hours emergency lighting kit
Dimming via DALI
Dimensions
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | L (mm) | L1 (mm) | Files |
|---|---|---|---|---|---|---|---|---|---|
| EXO.600.19.40 | 19 | 4000 | 2480 | >80 | 220-240/50-60 | 1,9 | 635 | 652 |
|
| EXO.600.26.40 | 26 | 4000 | 3440 | >80 | 220-240/50-60 | 1,9 | 635 | 652 |
|
| EXO.900.27.40 | 27 | 4000 | 3750 | >80 | 220-240/50-60 | 2,6 | 923 | 940 |
|
| EXO.900.38.40 | 38 | 4000 | 5045 | >80 | 220-240/50-60 | 2,6 | 923 | 940 |
|
| EXO.1200.34.40 | 34 | 4000 | 4680 | >80 | 220-240/50-60 | 3,3 | 1211 | 1228 |
|
| EXO.1200.49.40 | 49 | 4000 | 6300 | >80 | 220-240/50-60 | 3,3 | 1211 | 1228 |
|
| EXO.1500.44.40 | 44 | 4000 | 6420 | >80 | 220-240/50-60 | 3,9 | 1500 | 1515 |
|
| EXO.1500.61.40 | 61 | 4000 | 8530 | >80 | 220-240/50-60 | 3,9 | 1500 | 1515 |
|
