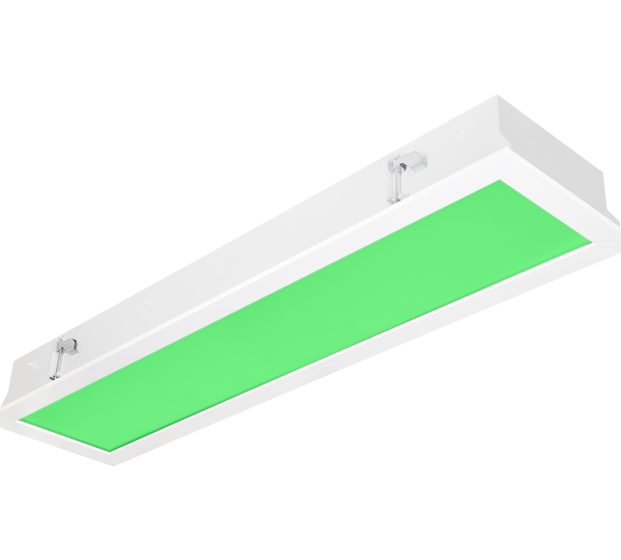

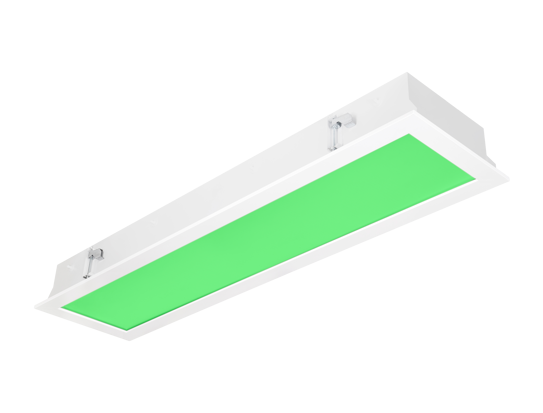

Hylum supports healthcare professionals in stressful operating room environments. The fixture has high-quality LEDs in green and 90 CRI white. Green LED light helps reduce stress during surgical operations, increase eye comfort and concentration. It prevents reflections and glare of different objects on the monitor, allowing focus during surgical operations performed on the screen. The fixture is ideal for hygienic environments and can be easily cleaned. It can be easily installed with practical mounting parts and mounting method. As a product with IP protection; Since there are no bolts or other connection parts on the visible surface, it does not disrupt visual aesthetics and does not compromise on simplicity and elegance.

Housing
Antibacterial electrostatic powder coated DKP sheet metal body and aluminum frame

Diffuser
UV resistant, non-yellowing, micro prismatic PMMA diffuser providing homogeneous light distribution

Glass
Transparent, tempered glass

Led
Mid power led with high efficacy factor and high color rendering
Green LEDs at wavelength of 525 nm
Achieving L80B50 ≥ 50.000 hours of lifetime

Driver
Constant current output LED driver with high efficiency, Pf ≥ 0.90

Ambient Temperature
-25 °C/+35 °C (With emergency lighting unit +5 °C/+30 °C)

Options
3 hours emergency lighting kit

Color
Ral 9016
Dimensions
Hylum3012 Teknik Cizim
Technical Data
Type Code Power (w) CCT (K) Light Output (lm) CRI V/Hz Weight (Kg) Cut-out Size (mm) Files
EHYM.3012.92.40GR.90 92 4000 4400 >90 220-240/50-60 12 280x1180 Files
