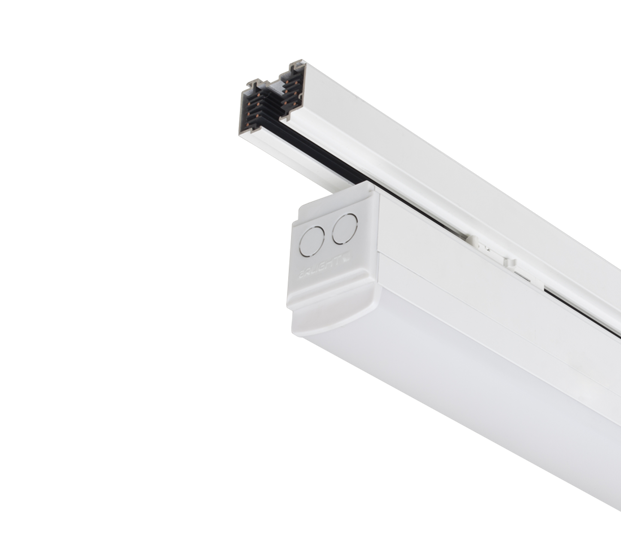

Lighting Fixture Opal Diffuser 130°
- Products
- Linear
- Skyline
- On-Track Type Skyline
- 130° Opal Diffuser
Housing
Aluminium extrusion profile and stainless steel mounting accessories with plastic end cap.
Optics
Optic lens or opal, white, diffusing polycarbonate lens with lambertian light distribution.
Led
High-efficacy mid power LED with CRI>80, achieving L90B50 ≥50.000 hours of lifetime.
Driver
Constant current output LED driver with high efficiency and Pf≥95.

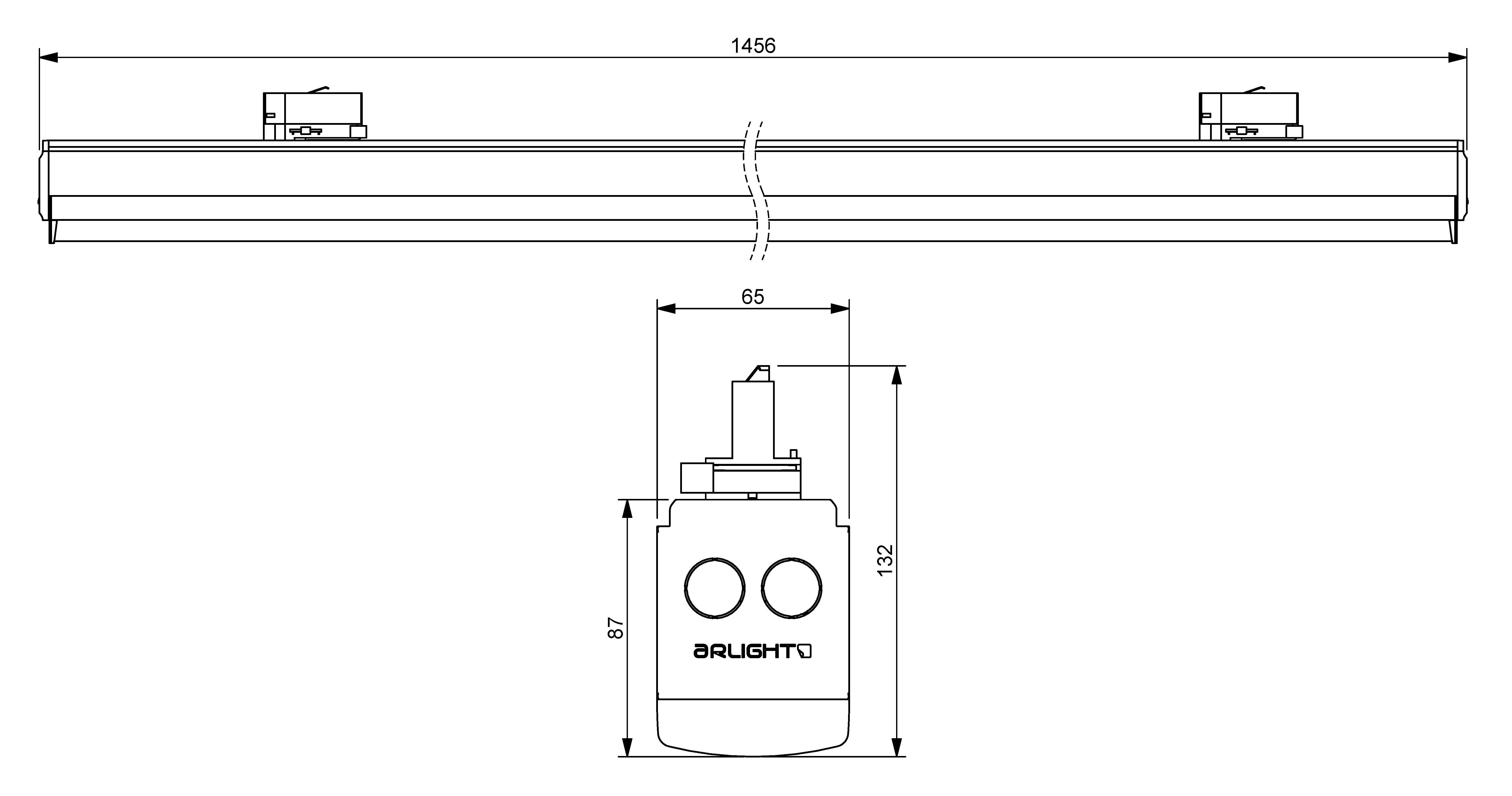

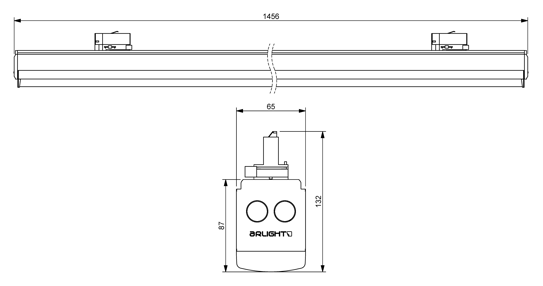

Dimensions

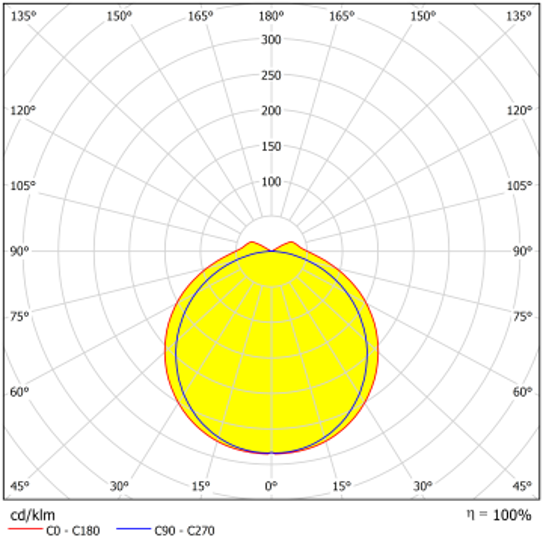

Light Distribution
Accessories
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Beam Angle | Files |
|---|---|---|---|---|---|---|---|---|
| SOSKR.25W.30.130 | 25 | 3000 | 3050 | >80 | 220-240/50-60 | 3,2 | 130° |
|
| SOSKR.25W.40.130 | 25 | 4000 | 3200 | >80 | 220-240/50-60 | 3,2 | 130° |
|
| SOSKR.35W.30.130 | 35 | 3000 | 4380 | >80 | 220-240/50-60 | 3,2 | 130° |
|
| SOSKR.35W.40.130 | 35 | 4000 | 4660 | >80 | 220-240/50-60 | 3,2 | 130° |
|
| SOSKR.51W.30.130 | 51 | 3000 | 6530 | >80 | 220-240/50-60 | 3,2 | 130° |
|
| SOSKR.51W.40.130 | 51 | 4000 | 6930 | >80 | 220-240/50-60 | 3,5 | 130° |
|
