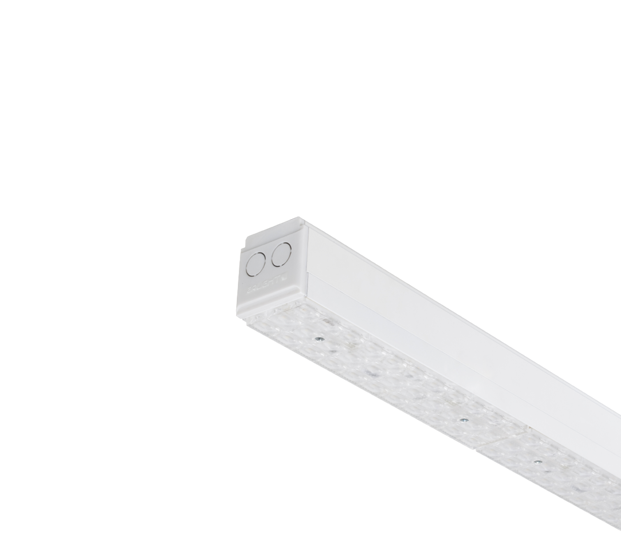

Light Module With Double Asymmetric Lens 100°/25°
- Products
- Linear
- Skyline
- Single System
- 100°/25° Optic Lens
Housing
Aluminium extrusion profile and stainless steel mounting accessories with plastic end cap.
Optics
Optic lens or opal, white, diffusing polycarbonate lens with lambertian light distribution.
Led
High-efficacy mid power LED with CRI>80, achieving L90B50 ≥50.000 hours of lifetime.
Driver
Constant current output LED driver with high efficiency and Pf≥95.
Dimensions

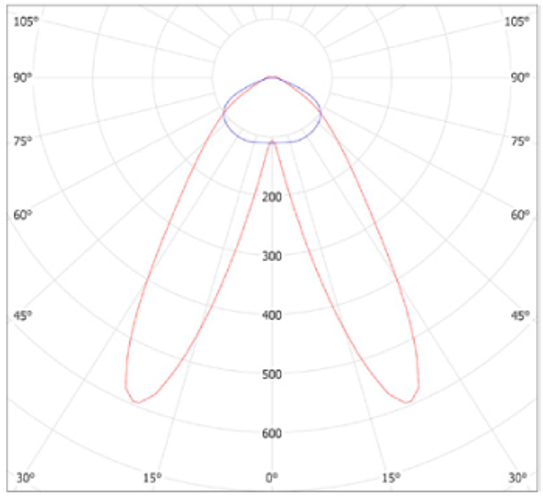

Light Distribution
Accessories
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Beam Angle | Files |
|---|---|---|---|---|---|---|---|---|
| SUSKS.25W.30.100/25 | 25 | 3000 | 3990 | >80 | 220-240/50-60 | 3,5 | 100°/25° |
|
| SUSKS.25W.40.100/25 | 25 | 4000 | 4190 | >80 | 220-240/50-60 | 3,5 | 100°/25° |
|
| SUSKS.35W.30.100/25 | 35 | 3000 | 5580 | >80 | 220-240/50-60 | 3,5 | 100°/25° |
|
| SUSKS.35W.40.100/25 | 35 | 4000 | 5930 | >80 | 220-240/50-60 | 3,5 | 100°/25° |
|
| SUSKS.58W.30.100/25 | 58 | 3000 | 8890 | >80 | 220-240/50-60 | 3,5 | 100°/25° |
|
| SUSKS.58W.40.100/25 | 58 | 4000 | 9460 | >80 | 220-240/50-60 | 3,5 | 100°/25° |
|
