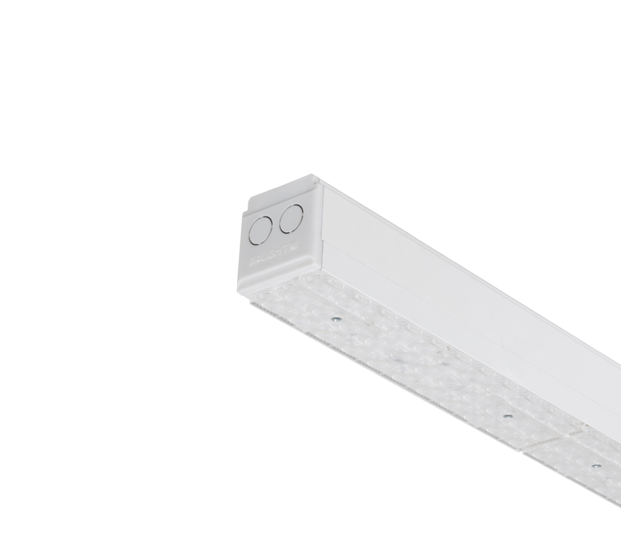

Housing
Aluminium extrusion profile and stainless steel mounting accessories with plastic end cap.
Optics
Optic lens or opal, white, diffusing polycarbonate lens with lambertian light distribution.
Led
High-efficacy mid power LED with CRI>80, achieving L90B50 ≥50.000 hours of lifetime.
Driver
Constant current output LED driver with high efficiency and Pf≥95.
Dimensions

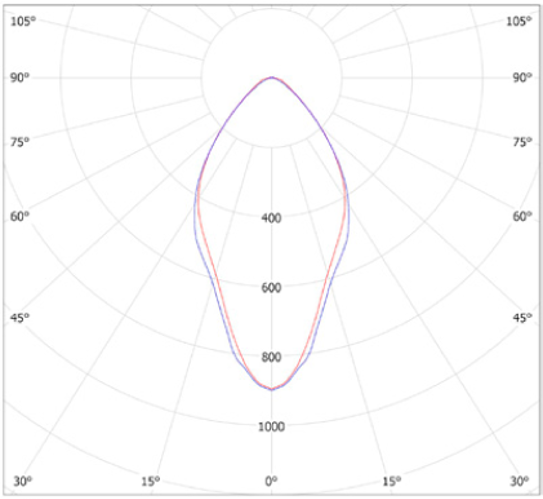

Light Distribution
Accessories
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Beam Angle | Files |
|---|---|---|---|---|---|---|---|---|
| SUSKS.25W.30.60 | 25 | 3000 | 3850 | >80 | 220-240/50-60 | 3,5 | 60° |
|
| SUSKS.25W.40.60 | 25 | 4000 | 4050 | >80 | 220-240/50-60 | 3,5 | 60° |
|
| SUSKS.35W.30.60 | 35 | 3000 | 5440 | >80 | 220-240/50-60 | 3,5 | 60° |
|
| SUSKS.35W.40.60 | 35 | 4000 | 5790 | >80 | 220-240/50-60 | 3,5 | 60° |
|
| SUSKS.58W.30.60 | 58 | 3000 | 8780 | >80 | 220-240/50-60 | 3,5 | 60° |
|
| SUSKS.58W.40.60 | 58 | 4000 | 9330 | >80 | 220-240/50-60 | 3,5 | 60° |
|
