Housing
Aluminum extrusion profile and steel mounting accessories
Optic
Anti-glare 80° optical lens
LED
High-efficacy mid power LED with CRI>80, achieving L90B50 ≥ 50,000 hours of lifetime
Driver
Constant current output LED driver with high efficiency and Pf≥0.90
Operating Temperature Range
0 °C/+35 °C
Option
Dimming via DALI
LL Low Lumen
HL High Lumen
*White housing, black baffle.
Color
Ral 9005
*Double

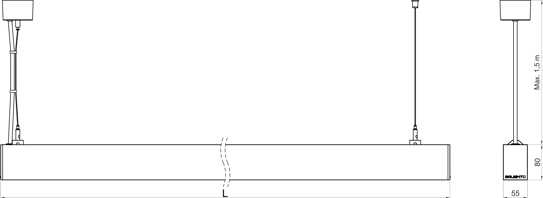

Dimensions
Light Distribution

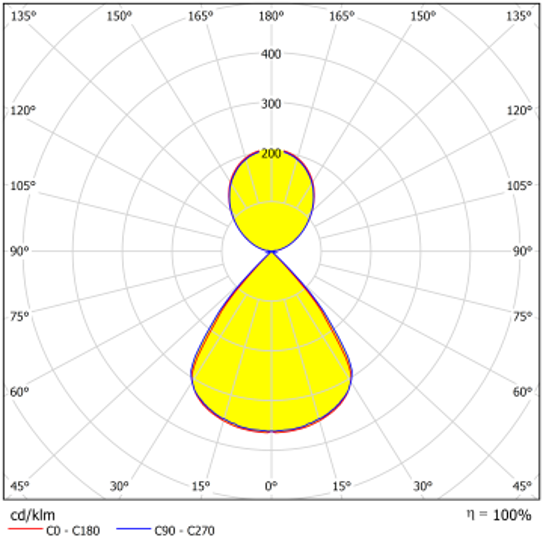

- S1980SCI 104W

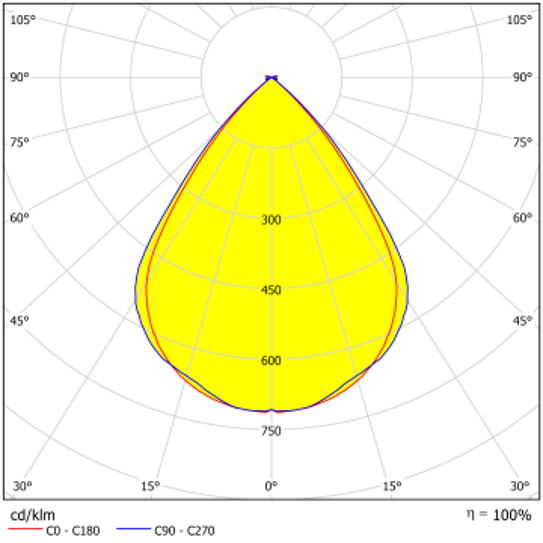

- S1980SCD 59W
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Direct | Lumen Variations | Files |
|---|---|---|---|---|---|---|---|---|---|
| SSCD.1140.25.30 | 25 | 3000 | 3020 | 80 | 220-240/50-60 | 4,0 | %100 | LL |
|
| SSCD.1140.25.40 | 25 | 4000 | 3210 | 80 | 220-240/50-60 | 4,0 | %100 | LL |
|
| SSCD.1140.35.30 | 35 | 3000 | 4330 | 80 | 220-240/50-60 | 4,0 | %100 | HL |
|
| SSCD.1140.35.40 | 35 | 4000 | 4600 | 80 | 220-240/50-60 | 4,0 | %100 | HL |
|
| SSCI.1140.51.30 | 51 | 3000 | 5830 | 80 | 220-240/50-60 | 4,2 | %50 | LL |
|
| SSCI.1140.51.40 | 51 | 4000 | 6260 | 80 | 220-240/50-60 | 4,2 | %50 | LL |
|
| SSCI.1140.61.30 | 61 | 3000 | 7140 | 80 | 220-240/50-60 | 4,2 | %60 | HL |
|
| SSCI.1140.61.40 | 61 | 4000 | 7660 | 80 | 220-240/50-60 | 4,2 | %60 | HL |
|
| SSCD.1420.31.30 | 31 | 3000 | 4080 | 80 | 220-240/50-60 | 5,3 | %100 | LL |
|
| SSCD.1420.31.40 | 31 | 4000 | 4340 | 80 | 220-240/50-60 | 5,3 | %100 | LL |
|
| SSCD.1420.43.30 | 43 | 3000 | 5540 | 80 | 220-240/50-60 | 5,3 | %100 | HL |
|
| SSCD.1420.43.40 | 43 | 4000 | 5900 | 80 | 220-240/50-60 | 5,3 | %100 | HL |
|
| SSCI.1420.63.30 | 63 | 3000 | 8150 | 80 | 220-240/50-60 | 5,5 | %50 | LL |
|
| SSCI.1420.63.40 | 63 | 4000 | 8760 | 80 | 220-240/50-60 | 5,5 | %50 | LL |
|
| SSCI.1420.76.30 | 76 | 3000 | 10330 | 80 | 220-240/50-60 | 5,5 | %60 | HL |
|
| SSCI.1420.76.40 | 76 | 4000 | 10330 | 80 | 220-240/50-60 | 5,5 | %60 | HL |
|
| SSCD.1980.41.30 | 41 | 3000 | 5590 | 80 | 220-240/50-60 | 6,4 | %100 | LL |
|
| SSCD.1980.41.40 | 41 | 4000 | 5940 | 80 | 220-240/50-60 | 6,4 | %100 | LL |
|
| SSCD.1980.59.30 | 59 | 3000 | 7550 | 80 | 220-240/50-60 | 6,4 | %100 | HL |
|
| SSCD.1980.59.40 | 59 | 4000 | 8200 | 80 | 220-240/50-60 | 6,4 | %100 | HL |
|
| SSCI.1980.85.40 | 85 | 4000 | 11080 | 80 | 220-240/50-60 | 6,6 | %50 | LL |
|
| SSCI.1980.85.30 | 85 | 3000 | 10310 | 80 | 220-240/50-60 | 6,6 | %50 | LL |
|
| SSCI.1980.104.40 | 104 | 4000 | 13340 | 80 | 220-240/50-60 | 6,6 | %60 | HL |
|
| SSCI.1980.104.30 | 104 | 3000 | 12270 | 80 | 220-240/50-60 | 6,6 | %60 | HL |
|
