Stella Anodized Recessed Header

Stella - Single - Recessed - Opal

Ip 40 20Ik 05Ikon 1ToprakCeEac

Housing
Aluminum extrusion profile and steel mounting accessories

Diffuser
Opal diffusing polycarbonate lens with lambertian light distribution

LED
High-efficacy mid power LED with CRI>80, achieving L90B50 ≥ 50,000 hours of lifetime

Driver
Constant current output LED driver with high efficiency and Pf≥0.90

Operating Temperature Range
0 °C/+35 °C

Option
Dimming via DALI

LL Low Lumen
ML Medium Lumen
HL High Lumen

*Matte natural anodized housing, finising G90 custom color.

Color
Ral 9016
Ral 9005
*Andz.

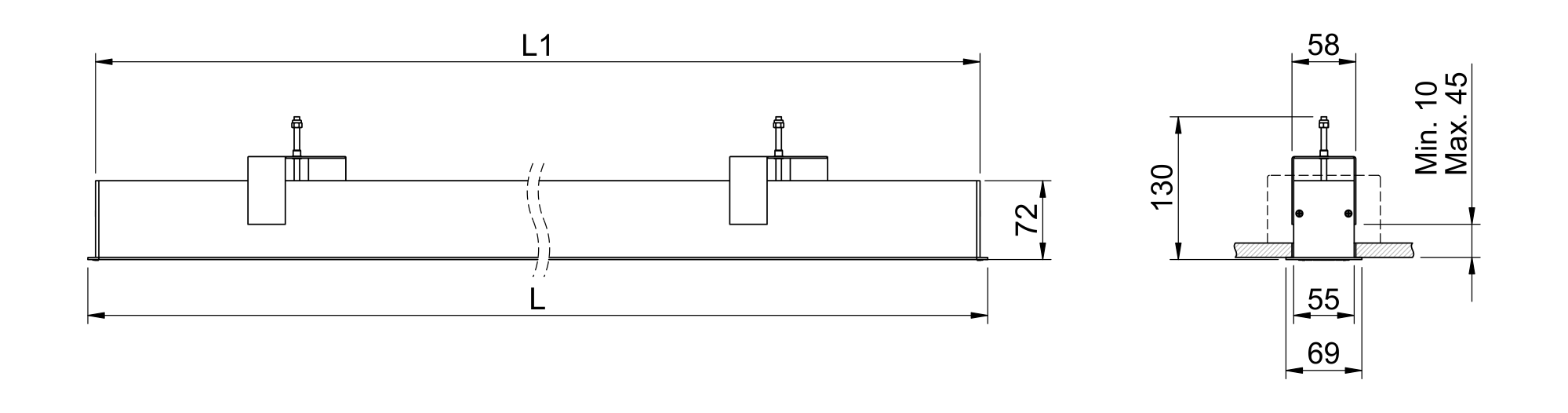

Dimensions
Stella Recessed Dimension
Light Distribution
Std Stella Deboss / Opal
Filter By
Technical Data
Type Code Power (w) CCT (K) Light Output (lm) CRI V/Hz Cut-out Size (mm) L (mm) L1 (mm) Lumen Variations Files
G 0871 STD GSTD.871.12.40 12 4000 1120 80 220-240/50-60 860x60 871 857 LL Files
G 0871 STD GSTD.871.12.30 12 3000 1060 80 220-240/50-60 860x60 871 857 LL Files
G 0871 STD GSTD.871.23.40 23 4000 2250 80 220-240/50-60 860x60 871 857 ML Files
G 0871 STD GSTD.871.23.30 23 3000 2140 80 220-240/50-60 860x60 871 857 ML Files
G 0871 STD GSTD.871.37.40 37 4000 4030 80 220-240/50-60 860x60 871 857 HL Files
G 0871 STD GSTD.871.37.30 37 3000 3830 80 220-240/50-60 860x60 871 857 HL Files
G 1151 STD GSTD.1151.16.40 16 4000 1490 80 220-240/50-60 1140x60 1151 1137 LL Files
G 1151 STD GSTD.1151.16.30 16 3000 1400 80 220-240/50-60 1140x60 1151 1137 LL Files
G 1151 STD GSTD.1151.31.40 31 4000 2980 80 220-240/50-60 1140x60 1151 1137 ML Files
G 1151 STD GSTD.1151.31.30 31 3000 2830 80 220-240/50-60 1140x60 1151 1137 ML Files
G 1151 STD GSTD.1151.51.40 51 4000 4900 80 220-240/50-60 1140x60 1151 1137 HL Files
G 1151 STD GSTD.1151.51.30 51 3000 4650 80 220-240/50-60 1140x60 1151 1137 HL Files
G 1431 STD GSTD.1431.19.40 19 4000 1870 80 220-240/50-60 1420x60 1431 1417 LL Files
G 1431 STD GSTD.1431.19.30 19 3000 1760 80 220-240/50-60 1420x60 1431 1417 LL Files
G 1431 STD GSTD.1431.35.40 35 4000 3750 80 220-240/50-60 1420x60 1431 1417 ML Files
G 1431 STD GSTD.1431.35.30 35 3000 3560 80 220-240/50-60 1420x60 1431 1417 ML Files
G 1431 STD GSTD.1431.64.40 64 4000 6700 80 220-240/50-60 1420x60 1431 1417 HL Files
G 1431 STD GSTD.1431.64.30 64 3000 6370 80 220-240/50-60 1420x60 1431 1417 HL Files
G 1711 STD GSTD.1711.23.40 23 4000 2240 80 220-240/50-60 1700x60 1711 1697 LL Files
G 1711 STD GSTD.1711.23.30 23 3000 2110 80 220-240/50-60 1700x60 1711 1697 LL Files
G 1711 STD GSTD.1711.43.40 43 4000 4470 80 220-240/50-60 1700x60 1711 1697 ML Files
G 1711 STD GSTD.1711.43.30 43 3000 4240 80 220-240/50-60 1700x60 1711 1697 ML Files
G 1711 STD GSTD.1711.77.40 77 4000 7350 80 220-240/50-60 1700x60 1711 1697 HL Files
G 1711 STD GSTD.1711.77.30 77 3000 6980 80 220-240/50-60 1700x60 1711 1697 HL Files
G 1991 STD GSTD.1991.28.40 28 4000 2460 80 220-240/50-60 1980x60 1991 1977 LL Files
G 1991 STD GSTD.1991.28.30 28 3000 2460 80 220-240/50-60 1980x60 1991 1977 LL Files
G 1991 STD GSTD.1991.53.40 53 4000 5230 80 220-240/50-60 1980x60 1991 1977 ML Files
G 1991 STD GSTD.1991.53.30 53 3000 4970 80 220-240/50-60 1980x60 1991 1977 ML Files
G 1991 STD GSTD.1991.87.40 87 4000 8600 80 220-240/50-60 1980x60 1991 1977 HL Files
G 1991 STD GSTD.1991.87.30 87 3000 8170 80 220-240/50-60 1980x60 1991 1977 HL Files
G 2271 STD GSTD.2271.32.40 32 4000 2990 80 220-240/50-60 2260x60 2271 2257 LL Files
G 2271 STD GSTD.2271.32.30 32 3000 2840 80 220-240/50-60 2260x60 2271 2257 LL Files
G 2271 STD GSTD.2271.68.40 68 4000 5960 80 220-240/50-60 2260x60 2271 2257 ML Files
G 2271 STD GSTD.2271.68.30 68 3000 5660 80 220-240/50-60 2260x60 2271 2257 ML Files
G 2271 STD GSTD.2271.100.40 100 4000 9750 80 220-240/50-60 2260x60 2271 2257 HL Files
G 2271 STD GSTD.2271.100.30 100 3000 9260 80 220-240/50-60 2260x60 2271 2257 HL Files
G 2551 STD GSTD.2551.36.40 36 4000 3360 80 220-240/50-60 2540x60 2551 2537 LL Files
G 2551 STD GSTD.2551.36.30 36 3000 3160 80 220-240/50-60 2540x60 2551 2537 LL Files
G 2551 STD GSTD.2551.68.40 68 4000 6720 80 220-240/50-60 2540x60 2551 2537 ML Files
G 2551 STD GSTD.2551.68.30 68 3000 6390 80 220-240/50-60 2540x60 2551 2537 ML Files
G 2551 STD GSTD.2551.112.40 112 4000 11070 80 220-240/50-60 2540x60 2551 2537 HL Files
G 2551 STD GSTD.2551.112.30 112 3000 10520 80 220-240/50-60 2540x60 2551 2537 HL Files
G 2831 STD GSTD.2831.40.40 40 4000 3730 80 220-240/50-60 2820x60 2831 2817 LL Files
G 2831 STD GSTD.2831.40.30 40 3000 3550 80 220-240/50-60 2820x60 2831 2817 LL Files
G 2831 STD GSTD.2831.76.40 76 4000 7450 80 220-240/50-60 2820x60 2831 2817 ML Files
G 2831 STD GSTD.2831.76.30 76 3000 7070 80 220-240/50-60 2820x60 2831 2817 ML Files
G 2831 STD GSTD.2831.124.40 124 4000 11850 80 220-240/50-60 2820x60 2831 2817 HL Files
G 2831 STD GSTD.2831.124.30 124 3000 11250 80 220-240/50-60 2820x60 2831 2817 HL Files
