Stella Black Pendant Header

Stella - Single - Pendant - Opal (Direct/Indirect)

Stella Anodized Pendant
Ip 20Ik 05Ikon 9ToprakCeEac

Housing
Aluminum extrusion profile and steel mounting accessories

Diffuser
Opal diffusing polycarbonate lens with lambertian light distribution

LED
High-efficacy mid power LED with CRI>80, achieving L90B50 ≥ 50,000 hours of lifetime

Driver
Constant current output LED driver with high efficiency and Pf≥0.90

Operating Temperature Range
0 °C/+35 °C

Option
Dimming via DALI

LL Low Lumen
HL High Lumen

*Matte natural anodized housing, finising G90 custom color.

Color
Ral 9016
Ral 9005
*Andz.

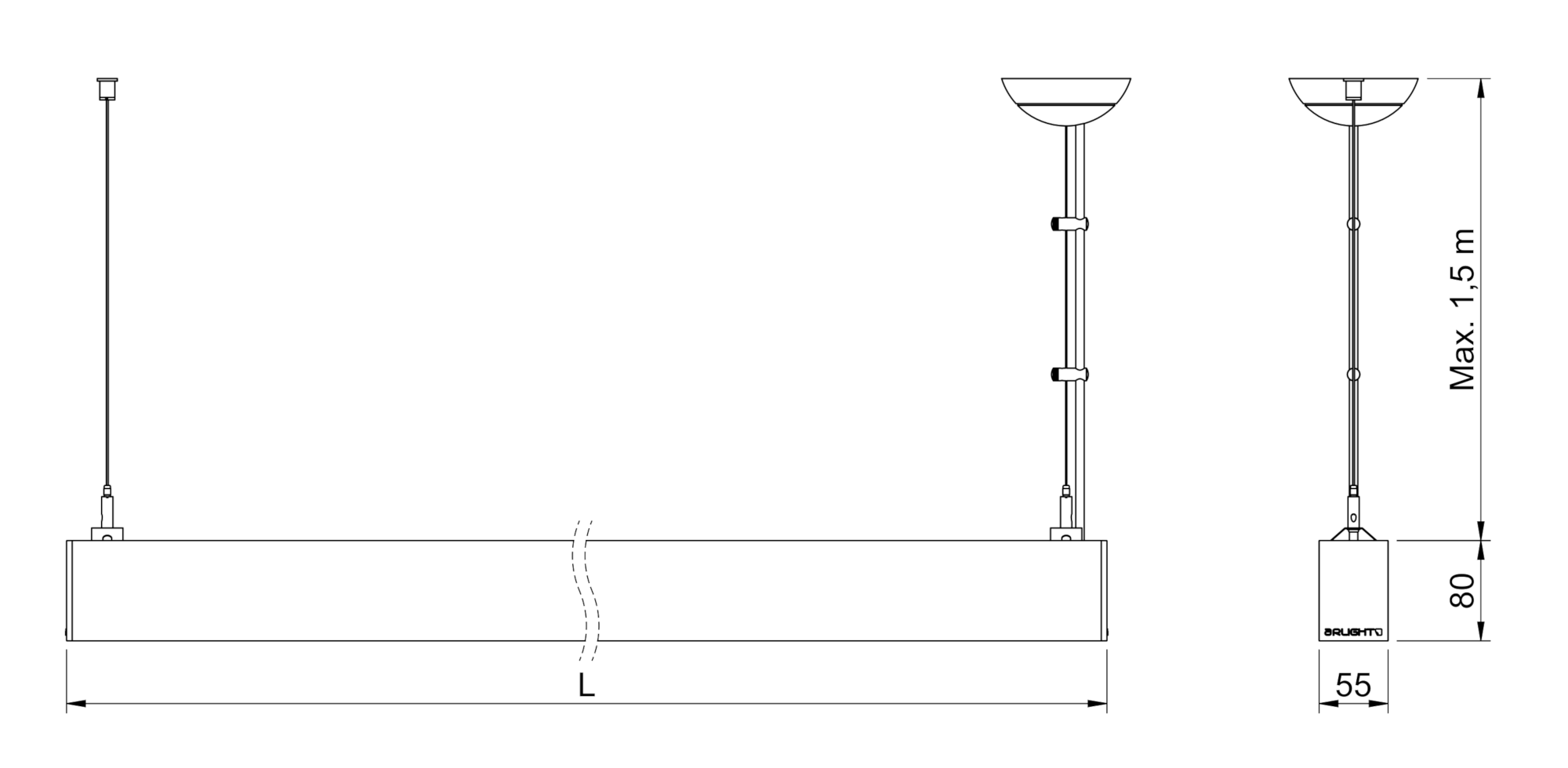

Dimensions
Stella Pendant Dimension
Light Distribution
Sti Stella Duo / Opal
Filter By
Technical Data
Type Code Power (w) CCT (K) Light Output (lm) CRI V/Hz L (mm) Direct Indirect Lumen Variations Files
SSTI.1140.37.40 37 4000 4480 80 220-240/50-60 1140 45% 55% LL Files
SSTI.1140.37.30 37 3000 4260 80 220-240/50-60 1140 45% 55% LL Files
SSTI.1140.52.40 52 4000 6120 80 220-240/50-60 1140 45% 55% HL Files
SSTI.1140.52.30 52 3000 5810 80 220-240/50-60 1140 45% 55% HL Files
SSTI.1420.49.40 49 4000 5570 80 220-240/50-60 1420 45% 55% LL Files
SSTI.1420.49.30 49 3000 5290 80 220-240/50-60 1420 45% 55% LL Files
SSTI.1420.65.40 65 4000 7730 80 220-240/50-60 1420 45% 55% HL Files
SSTI.1420.65.30 65 3000 7340 80 220-240/50-60 1420 45% 55% HL Files
SSTI.1700.56.40 56 4000 6680 80 220-240/50-60 1700 45% 55% LL Files
SSTI.1700.56.30 56 3000 6350 80 220-240/50-60 1700 45% 55% LL Files
SSTI.1700.78.40 78 4000 8970 80 220-240/50-60 1700 45% 55% HL Files
SSTI.1700.78.30 78 3000 8520 80 220-240/50-60 1700 45% 55% HL Files
SSTI.1980.70.40 70 4000 7790 80 220-240/50-60 1980 45% 55% LL Files
SSTI.1980.70.30 70 3000 7400 80 220-240/50-60 1980 45% 55% LL Files
SSTI.1980.95.40 95 4000 10520 80 220-240/50-60 1980 45% 55% HL Files
SSTI.1980.95.30 95 3000 9990 80 220-240/50-60 1980 45% 55% HL Files
SSTI.2260.80.40 80 4000 8880 80 220-240/50-60 2260 45% 55% LL Files
SSTI.2260.80.30 80 3000 8440 80 220-240/50-60 2260 45% 55% LL Files
SSTI.2260.109.40 109 4000 11970 80 220-240/50-60 2260 45% 55% HL Files
SSTI.2260.109.30 109 3000 11370 80 220-240/50-60 2260 45% 55% HL Files
SSTI.2540.90.40 90 4000 10010 80 220-240/50-60 2540 45% 55% LL Files
SSTI.2540.90.30 90 3000 9510 80 220-240/50-60 2540 45% 55% LL Files
SSTI.2540.122.40 122 4000 13510 80 220-240/50-60 2540 45% 55% HL Files
SSTI.2540.122.30 122 3000 12840 80 220-240/50-60 2540 45% 55% HL Files
SSTI.2820.100.40 100 4000 11100 80 220-240/50-60 2820 45% 55% LL Files
SSTI.2820.100.30 100 3000 10550 80 220-240/50-60 2820 45% 55% LL Files
SSTI.2820.136.40 136 4000 14950 80 220-240/50-60 2820 45% 55% HL Files
SSTI.2820.136.30 136 4000 14210 80 220-240/50-60 2820 45% 55% HL Files
