Housing
Aluminum extrusion profile and steel mounting accessories
Diffuser
Opal diffusing polycarbonate lens with lambertian light distribution
LED
High-efficacy mid power LED with CRI>80, achieving L90B50 ≥ 50,000 hours of lifetime
Driver
Constant current output LED driver with high efficiency and Pf≥0.90
Operating Temperature Range
0 °C/+35 °C
Option
Dimming via DALI
LL Low Lumen
HL High Lumen
- Start modules cannot be used as single. At least one piece Cont/End module is required.

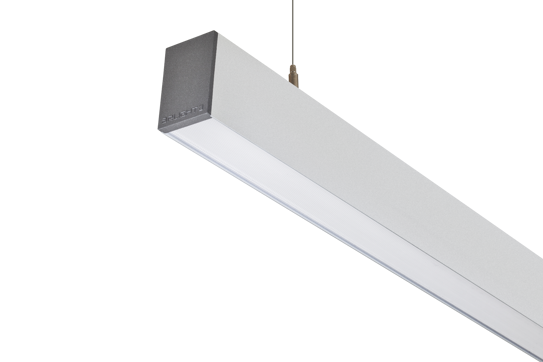

*Matte natural anodized housing, finising G90 custom color.
Color
Ral 9016
Ral 9005
*Andz.

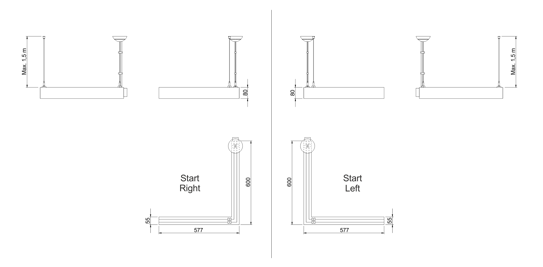

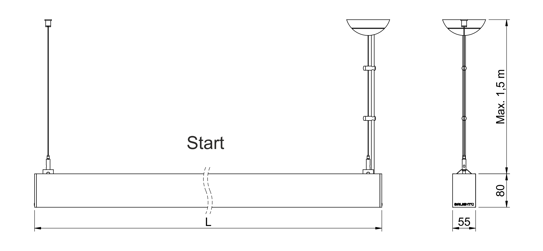

Dimensions

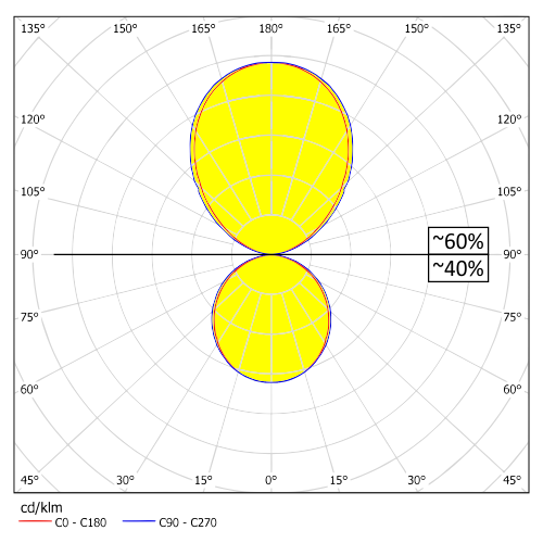

Light Distribution
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | L (mm) | Direct | Indirect | Lumen Variations | Files |
|---|---|---|---|---|---|---|---|---|---|---|
| SSSTI.1410.49.40 | 49 | 4000 | 5570 | 80 | 220-240/50-60 | 1410 | 45% | 55% | LL |
|
| SSSTI.1410.49.30 | 49 | 3000 | 5290 | 80 | 220-240/50-60 | 1410 | 45% | 55% | LL |
|
| SSSTI.1410.65.40 | 65 | 4000 | 7730 | 80 | 220-240/50-60 | 1410 | 45% | 55% | HL |
|
| SSSTI.1410.65.30 | 65 | 3000 | 7340 | 80 | 220-240/50-60 | 1410 | 45% | 55% | HL |
|
| SSRSTI.6058.40.40 | 40 | 4000 | 4330 | 80 | 220-240/50-60 | 45% | 55% | LL |
|
|
| SSRSTI.6058.40.30 | 40 | 3000 | 4110 | 80 | 220-240/50-60 | 45% | 55% | LL |
|
|
| SSRSTI.6058.54.40 | 54 | 4000 | 5980 | 80 | 220-240/50-60 | 45% | 55% | HL |
|
|
| SSRSTI.6058.54.30 | 54 | 3000 | 5680 | 80 | 220-240/50-60 | 45% | 55% | HL |
|
|
| SSLSTI.6058.40.40 | 40 | 4000 | 4330 | 80 | 220-240/50-60 | 45% | 55% | LL |
|
|
| SSLSTI.6058.40.30 | 40 | 3000 | 4110 | 80 | 220-240/50-60 | 45% | 55% | LL |
|
|
| SSLSTI.6058.54.40 | 54 | 4000 | 5980 | 80 | 220-240/50-60 | 45% | 55% | HL |
|
|
| SSLSTI.6058.54.30 | 54 | 3000 | 5680 | 80 | 220-240/50-60 | 45% | 55% | HL |
|
