Housing
Aluminum extrusion profile and steel mounting accessories
Diffuser
Microprismatic diffuser providing homogeneous light distribution
LED
High-efficacy mid power LED with CRI>80, achieving L90B50 ≥ 50,000 hours of lifetime
Driver
Constant current output LED driver with high efficiency and Pf≥0.90
Operating Temperature Range
0 °C/+35 °C
Option
Dimming via DALI
LL Low Lumen - Low UGR
ML Medium Lumen
HL High Lumen
- Start modules cannot be used as single. At least one piece Cont/End module is required.
*Matte natural anodized housing, finising G90 custom color.
Color
Ral 9016
Ral 9005
*Andz.

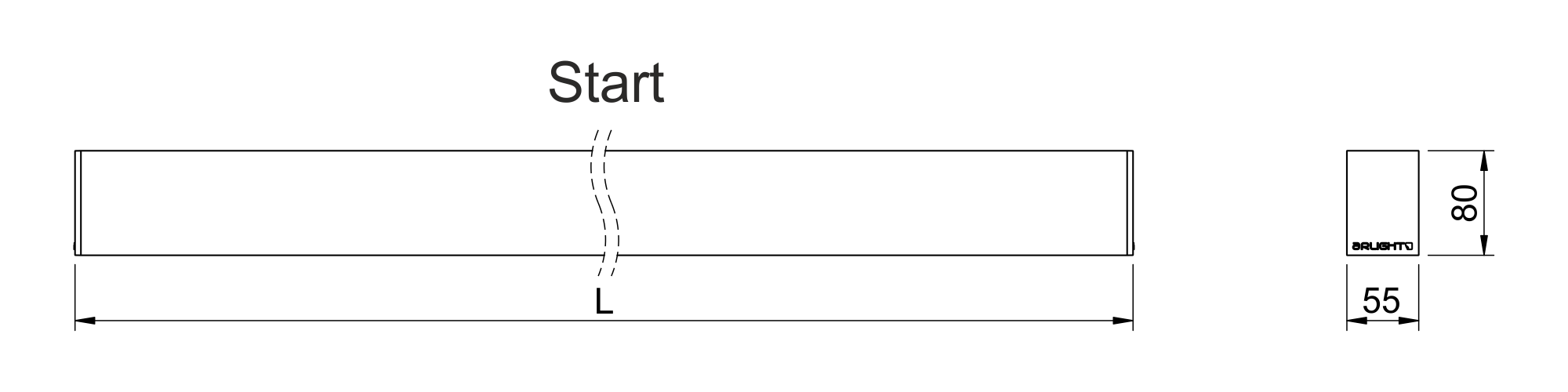

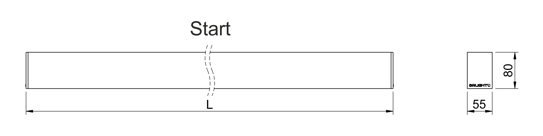

Dimensions
Light Distribution
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | L (mm) | Lumen Variations | Files |
|---|---|---|---|---|---|---|---|---|
| SDS 1130 SMD SDSSMD.1130.16.40 | 16 | 4000 | 1320 | 80 | 220-240/50-60 | 1130 | LL |
|
| SDS 1130 SMD SDSSMD.1130.16.30 | 16 | 3000 | 1240 | 80 | 220-240/50-60 | 1130 | LL |
|
| SDS 1130 SMD SDSSMD.1130.31.40 | 31 | 4000 | 2810 | 80 | 220-240/50-60 | 1130 | ML |
|
| SDS 1130 SMD SDSSMD.1130.31.30 | 31 | 3000 | 2670 | 80 | 220-240/50-60 | 1130 | ML |
|
| SDS 1130 SMD SDSSMD.1130.51.40 | 51 | 4000 | 4620 | 80 | 220-240/50-60 | 1130 | HL |
|
| SDS 1130 SMD SDSSMD.1130.51.30 | 51 | 3000 | 4390 | 80 | 220-240/50-60 | 1130 | HL |
|
| SDSR 6058 SMD SDSRSMD.6058.16.40 | 16 | 4000 | 1320 | 80 | 220-240/50-60 | LL |
|
|
| SDSR 6058 SMD SDSRSMD.6058.16.30 | 16 | 3000 | 1240 | 80 | 220-240/50-60 | LL |
|
|
| SDSR 6058 SMD SDSRSMD.6058.31.40 | 31 | 4000 | 2810 | 80 | 220-240/50-60 | ML |
|
|
| SDSR 6058 SMD SDSRSMD.6058.31.30 | 31 | 3000 | 2670 | 80 | 220-240/50-60 | ML |
|
|
| SDSR 6058 SMD SDSRSMD.6058.51.40 | 51 | 4000 | 4620 | 80 | 220-240/50-60 | HL |
|
|
| SDSR 6058 SMD SDSRSMD.6058.51.30 | 51 | 3000 | 4390 | 80 | 220-240/50-60 | HL |
|
|
| SDSL 6058 SMD SDSLSMD.6058.16.40 | 16 | 4000 | 1320 | 80 | 220-240/50-60 | LL |
|
|
| SDSL 6058 SMD SDSLSMD.6058.16.30 | 16 | 3000 | 1240 | 80 | 220-240/50-60 | LL |
|
|
| SDSL 6058 SMD SDSLSMD.6058.31.40 | 31 | 4000 | 2810 | 80 | 220-240/50-60 | ML |
|
|
| SDSL 6058 SMD SDSLSMD.6058.31.30 | 31 | 3000 | 2670 | 80 | 220-240/50-60 | ML |
|
|
| SDSL 6058 SMD SDSLSMD.6058.51.40 | 51 | 4000 | 4620 | 80 | 220-240/50-60 | HL |
|
|
| SDSL 6058 SMD SDSLSMD.6058.51.30 | 51 | 3000 | 4390 | 80 | 220-240/50-60 | HL |
|
