Stella Black Pendant Header

Stella - Cont/End - Pendant – Micro Lens (Direct)

Stella Anodized Pendant
Ip 20Ik 05Ikon 1ToprakCeEac

Housing
Aluminum extrusion profile and steel mounting accessories

Diffuser
Prism structured opal white diffuser with lambertian light distribution and high transmissivity

LED
High-efficacy mid power LED with CRI>80, achieving L90B50 ≥ 50,000 hours of lifetime

Driver
Constant current output LED driver with high efficiency and Pf≥0.90

Operating Temperature Range
0 °C/+35 °C

Option
Dimming via DALI

LL Low Lumen - Low UGR
ML Medium Lumen - Low UGR
HL High Lumen - Low UGR

- Cont/End modules cannot be used as single. At least one piece Start module is required.
*Matte natural anodized housing.

Color
Ral 9016
Ral 9005
*Andz.
Dimensions

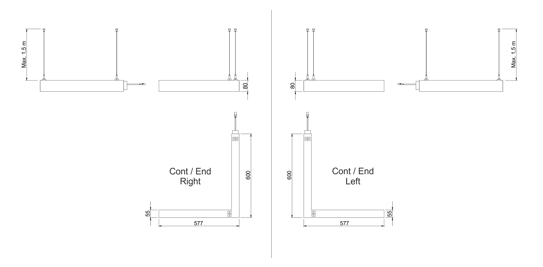

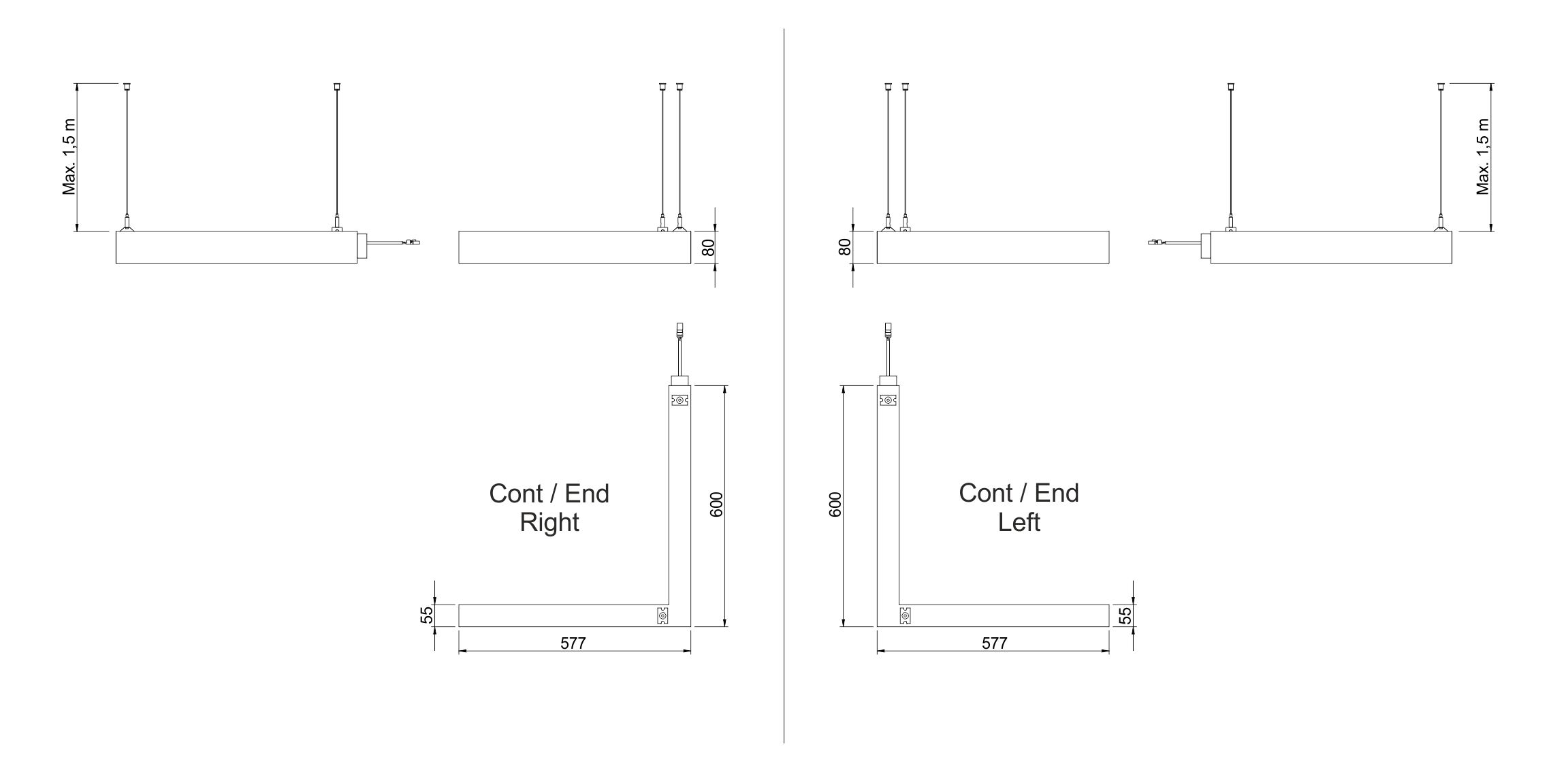

Stella Cont End Pendant Dimension Stella Corner Cont End Pendant Dimension D
Light Distribution
Smd Stella One-C / Micro
Filter By
Technical Data
Type Code Power (w) CCT (K) Light Output (lm) CRI V/Hz L (mm) Lumen Variations Files
SCSMD.1121.16.40 16 4000 1320 80 220-240/50-60 1121 LL Files
SCSMD.1121.16.30 16 3000 1240 80 220-240/50-60 1121 LL Files
SCSMD.1121.31.40 31 4000 2810 80 220-240/50-60 1121 ML Files
SCSMD.1121.31.30 31 3000 2670 80 220-240/50-60 1121 ML Files
SCSMD.1121.51.40 51 4000 4620 80 220-240/50-60 1121 HL Files
SCSMD.1121.51.30 51 3000 4390 80 220-240/50-60 1121 HL Files
SCSMD.1401.19.40 19 4000 1730 80 220-240/50-60 1401 LL Files
SCSMD.1401.19.30 19 3000 1630 80 220-240/50-60 1401 LL Files
SCSMD.1401.35.40 35 4000 3530 80 220-240/50-60 1401 ML Files
SCSMD.1401.35.30 35 3000 3360 80 220-240/50-60 1401 ML Files
SCSMD.1401.64.40 64 4000 5450 80 220-240/50-60 1401 HL Files
SCSMD.1401.64.30 64 3000 5170 80 220-240/50-60 1401 HL Files
SCSMD.1681.23.40 23 4000 1990 80 220-240/50-60 1681 LL Files
SCSMD.1681.23.30 23 3000 1870 80 220-240/50-60 1681 LL Files
SCSMD.1681.42.40 42 4000 4210 80 220-240/50-60 1681 ML Files
SCSMD.1681.42.30 42 3000 4000 80 220-240/50-60 1681 ML Files
SCSMD.1681.77.40 77 4000 6930 80 220-240/50-60 1681 HL Files
SCSMD.1681.77.30 77 3000 6590 80 220-240/50-60 1681 HL Files
SCSMD.1961.28.40 28 4000 2390 80 220-240/50-60 1961 LL Files
SCSMD.1961.28.30 28 3000 2250 80 220-240/50-60 1961 LL Files
SCSMD.1961.53.40 53 4000 4940 80 220-240/50-60 1961 ML Files
SCSMD.1961.53.30 53 3000 4690 80 220-240/50-60 1961 ML Files
SCSMD.1961.87.40 87 4000 8120 80 220-240/50-60 1961 HL Files
SCSMD.1961.87.30 87 3000 7710 80 220-240/50-60 1961 HL Files
SCSMD.2241.32.40 32 4000 2650 80 220-240/50-60 2241 LL Files
SCSMD.2241.32.30 32 3000 2490 80 220-240/50-60 2241 LL Files
SCSMD.2241.61.40 61 4000 5620 80 220-240/50-60 2241 ML Files
SCSMD.2241.61.30 61 3000 5340 80 220-240/50-60 2241 ML Files
SCSMD.2241.100.40 100 4000 9200 80 220-240/50-60 2241 HL Files
SCSMD.2241.100.30 100 3000 8740 80 220-240/50-60 2241 HL Files
SCSMD.2521.36.40 36 4000 3050 80 220-240/50-60 2521 LL Files
SCSMD.2521.36.30 36 3000 2870 80 220-240/50-60 2521 LL Files
SCSMD.2521.68.40 68 4000 6340 80 220-240/50-60 2521 ML Files
SCSMD.2521.68.30 68 3000 6030 80 220-240/50-60 2521 ML Files
SCSMD.2521.112.40 112 4000 10450 80 220-240/50-60 2521 HL Files
SCSMD.2521.112.30 112 3000 9920 80 220-240/50-60 2521 HL Files
SCSMD.2801.40.40 40 4000 3310 80 220-240/50-60 2801 LL Files
SCSMD.2801.40.30 40 3000 3110 80 220-240/50-60 2801 LL Files
SCSMD.2801.76.40 76 4000 7030 80 220-240/50-60 2801 ML Files
SCSMD.2801.76.30 76 3000 5050 80 220-240/50-60 2801 ML Files
SCSMD.2801.124.40 124 4000 11180 80 220-240/50-60 2801 HL Files
SCSMD.2801.124.30 124 3000 10620 80 220-240/50-60 2801 HL Files
STRSMD.6058.16.40 16 4000 1320 80 220-240/50-60 LL Files
STRSMD.6058.16.30 16 3000 1240 80 220-240/50-60 LL Files
STRSMD.6058.31.40 31 4000 2810 80 220-240/50-60 ML Files
STRSMD.6058.31.30 31 3000 2670 80 220-240/50-60 ML Files
STRSMD.6058.51.40 51 4000 4620 80 220-240/50-60 HL Files
STRSMD.6058.51.30 51 3000 4390 80 220-240/50-60 HL Files
STLSMD.6058.16.40 16 4000 1320 80 220-240/50-60 LL Files
STLSMD.6058.16.30 16 3000 1230 80 220-240/50-60 LL Files
STLSMD.6058.31.40 31 4000 2190 80 220-240/50-60 ML Files
STLSMD.6058.31.30 31 3000 2020 80 220-240/50-60 ML Files
STLSMD.6058.51.40 51 4000 3640 80 220-240/50-60 HL Files
STLSMD.6058.51.30 51 3000 3350 80 220-240/50-60 HL Files
