Housing
Matte natural anodized, aluminum extrusion profile and stainless steel mounting accessories with plastic ceiling cup.
Optics
Opal, white, diffusing polycarbonate lens with lambertian light distribution.
Led
High-efficacy mid power LED with CRI>80, achieving L90B50 ≥ 50,000 hours of lifetime.
Driver
Constant current output LED driver with high efficiency and Pf≥0.95
Options
Dimming via DALI
Color
Matte natural anodized

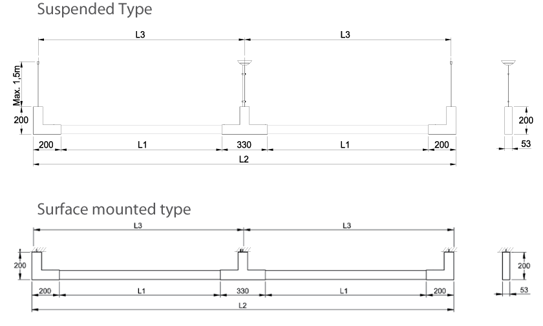

Dimensions

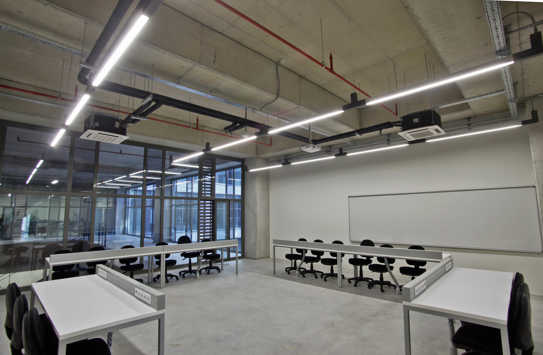

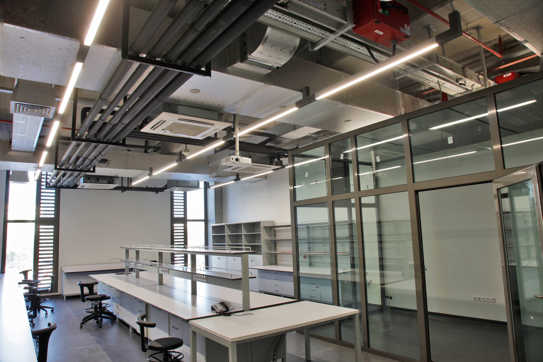

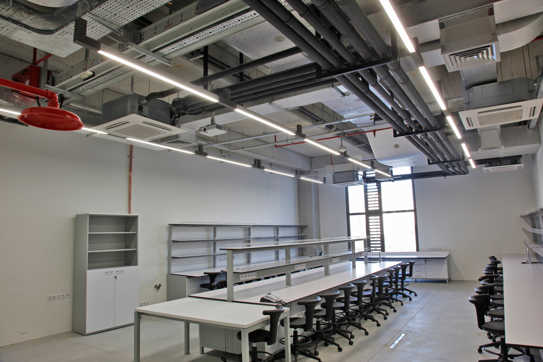

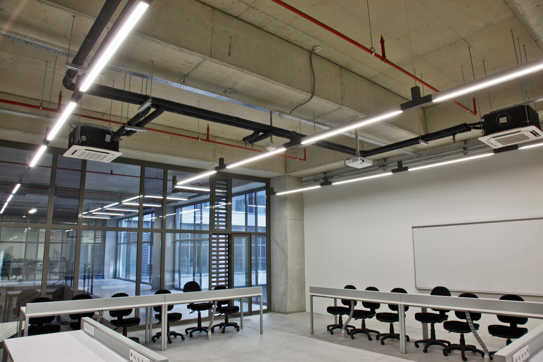

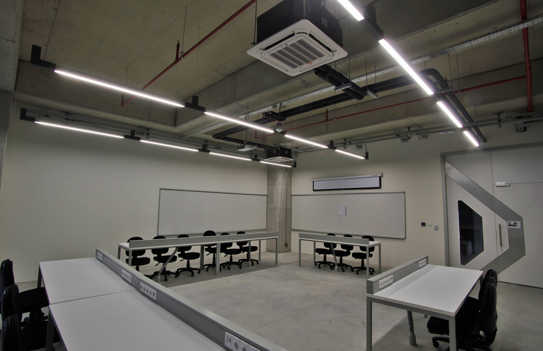

Gallery

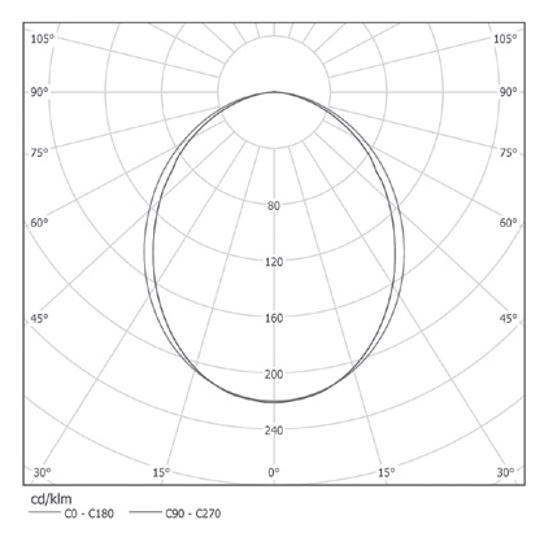

Light Distribution
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | L1 (mm) | L2 (mm) | L3 (mm) | Files |
|---|---|---|---|---|---|---|---|---|---|---|
| SPLT.3000.88.30 | 88 | 3000 | 7950 | >80 | 220-240/50-60 | 6,2 | 1130 | 2990 | 1460 |
|
| SPLT.3000.88.40 | 88 | 4000 | 8460 | >80 | 220-240/50-60 | 6,2 | 1130 | 2990 | 1460 |
|
| SPLT.3500.108.30 | 108 | 3000 | 9360 | >80 | 220-240/50-60 | 7 | 1410 | 3550 | 1740 |
|
| SPLT.3500.108.40 | 108 | 4000 | 9960 | >80 | 220-240/50-60 | 7 | 1410 | 3550 | 1740 |
|
| SDPLT.3000.88.30 | 88 | 3000 | 7950 | >80 | 220-240/50-60 | 6 | 1130 | 2990 | 1460 |
|
| SDPLT.3000.88.40 | 88 | 4000 | 8460 | >80 | 220-240/50-60 | 6 | 1130 | 2990 | 1460 |
|
| SDPLT.3500.108.30 | 108 | 3000 | 9360 | >80 | 220-240/50-60 | 6,76 | 1410 | 3550 | 1740 |
|
| SDPLT.3500.108.40 | 108 | 4000 | 9960 | >80 | 220-240/50-60 | 6,76 | 1410 | 3550 | 1740 |
|
