Housing
Matte natural anodized, aluminum extrusion profile and stainless steel mounting accessories with plastic ceiling cup.
Optics
Opal, white, diffusing polycarbonate lens with lambertian light distribution.
Led
High-efficacy mid power LED with CRI>80, achieving L90B50 ≥ 50,000 hours of lifetime.
Driver
Constant current output LED driver with high efficiency and Pf≥0.95
Options
Dimming via DALI
Color
Matte natural anodized

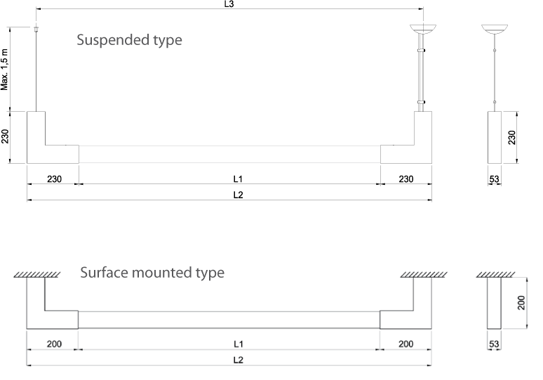

Dimensions

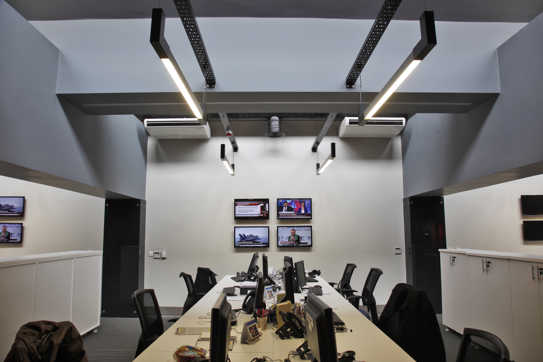

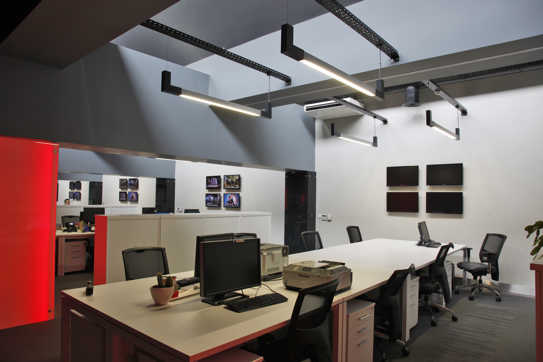

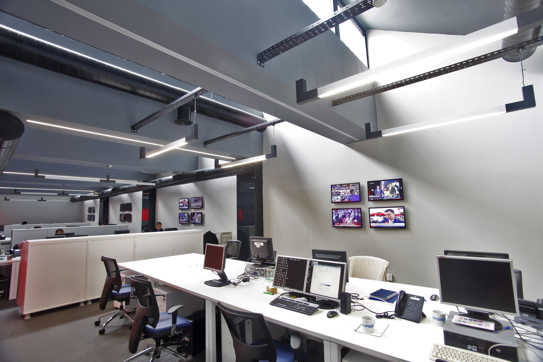

Gallery

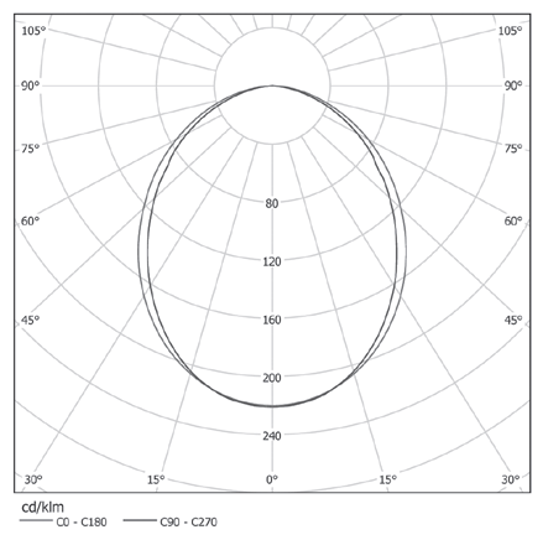

Light Distribution
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Files |
|---|---|---|---|---|---|---|---|
| S 1500 PLU SPLU.1500.44.30 | 44 | 3000 | 3970 | >80 | 220-240/50-60 | 3,4 |
|
| S 1500 PLU SPLU.1500.44.40 | 44 | 4000 | 4230 | >80 | 220-240/50-60 | 3,4 |
|
| S 1800 PLU SPLU.1800.54.30 | 54 | 3000 | 4680 | >80 | 220-240/50-60 | 3,7 |
|
| S 1800 PLU SPLU.1800.54.40 | 54 | 4000 | 4980 | >80 | 220-240/50-60 | 3,7 |
|
| SD 1500 PLU SDPLU.1500.44.30 | 44 | 3000 | 3970 | >80 | 220-240/50-60 | 3,16 |
|
| SD 1500 PLU SDPLU.1500.44.40 | 44 | 4000 | 4230 | >80 | 220-240/50-60 | 3,16 |
|
| SD 1800 PLU SDPLU.1800.54.30 | 54 | 3000 | 4680 | >80 | 220-240/50-60 | 3,46 |
|
| SD 1800 PLU SDPLU.1800.54.40 | 54 | 4000 | 4980 | >80 | 220-240/50-60 | 3,46 |
|
