Housing
Sheet steel body with electrostatic powder coating.
Optics
Opal white polystyrene diffuser with lambertian light distribution.
Led
High-efficacy LED with CRI>80, achieving L90B50 ≥ 50,000 hours of lifetime.
Driver
Constant current output LED driver with high efficiency and Pf≥0.95
Options
* 1 or 3 hours emergency lighting kit
* Dimming via DALI
Color
Ral 9016
Ral 9006
Dimensions

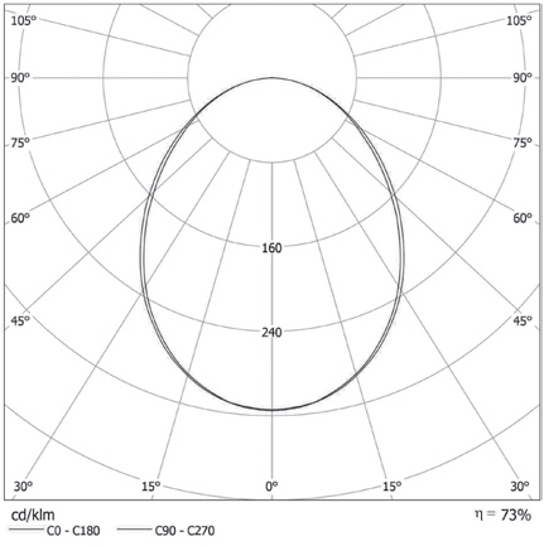

Light Distribution
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Cut-out Size (mm) | Files |
|---|---|---|---|---|---|---|---|---|
| GBOX.6060.36.30 | 36 | 3000 | 3220 | >80 | 220-240/50-60 | 4,7 | 580x580 |
|
| GBOX.6060.36.40 | 36 | 4000 | 3540 | >80 | 220-240/50-60 | 4,7 | 580x580 |
|
| GBOX.6060.28.30 | 28 | 3000 | 2340 | >80 | 220-240/50-60 | 4,7 | 580x580 |
|
| GBOX.6060.28.40 | 28 | 4000 | 2580 | >80 | 220-240/50-60 | 4,7 | 580x580 |
|
