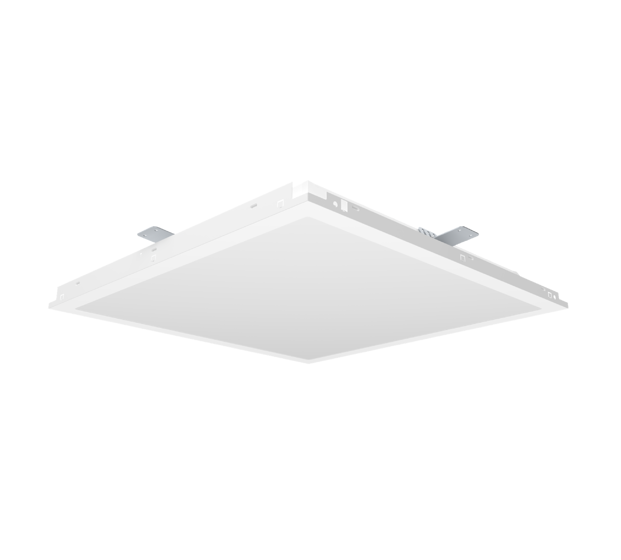

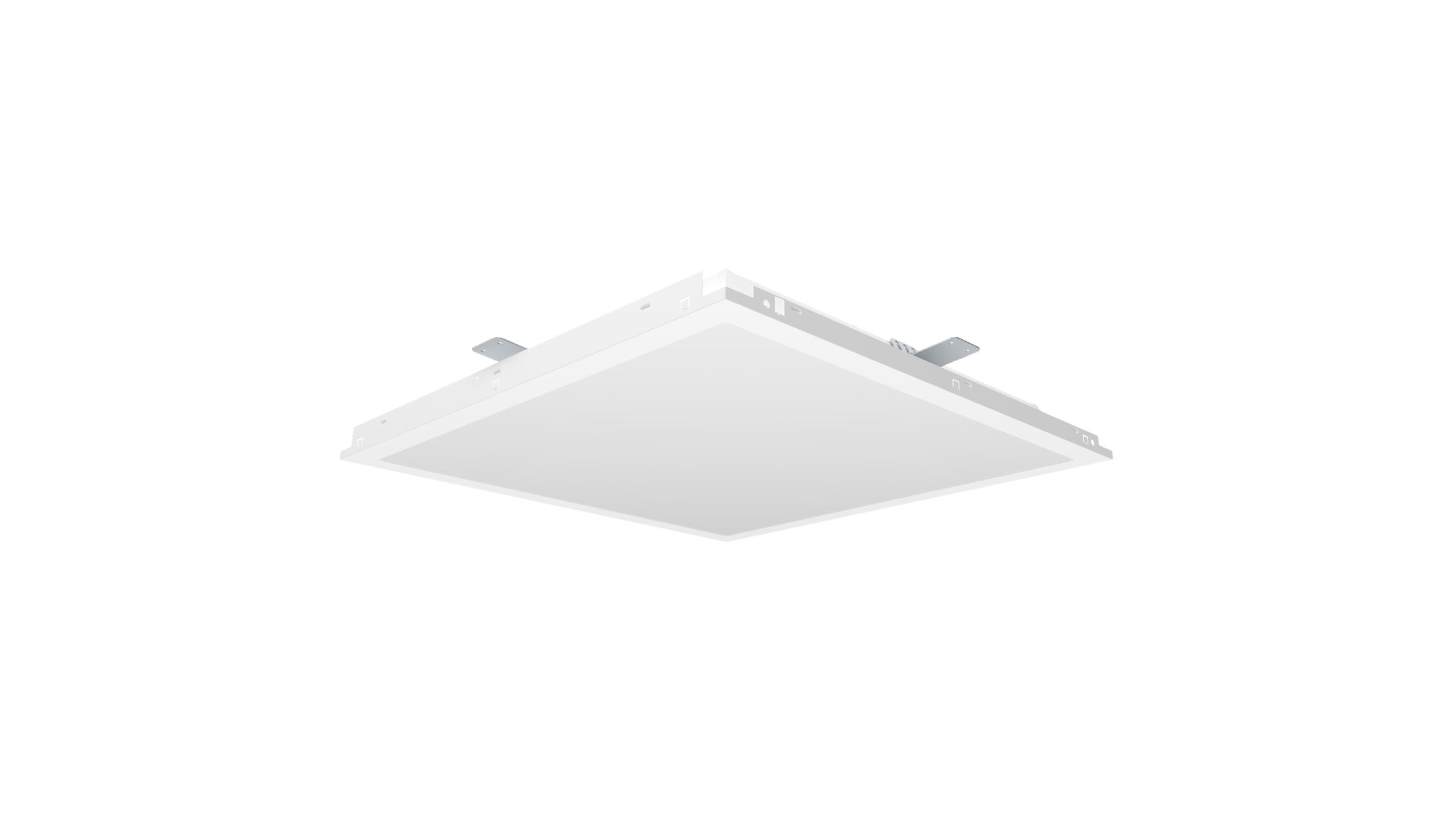

G 6060 Plk Header

G 6060 PLK+

Ip 40 20Ikon 1Toprak YokAcil CikisCeEacIk 02

Housing
Sheet steel body with electrostatic powder coating.

Optics
Opal white polystyrene diffuser with lambertian light distribution.

Led
High-efficiency LED with CRI>80, achieving L90B50 ≥ 50,000 hours of lifetime.

Driver
Constant current output LED driver with high efficiency and Pf≥0.95

Options
1 or 3 hours emergency lighting kit
Dimming via DALI

Color
Ral 9016
Ral 9006

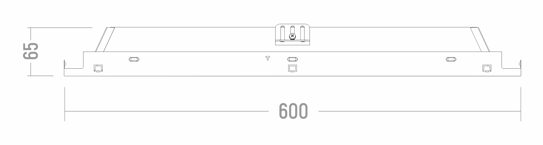

Dimensions
G 6060 Plk Teknik Cizim

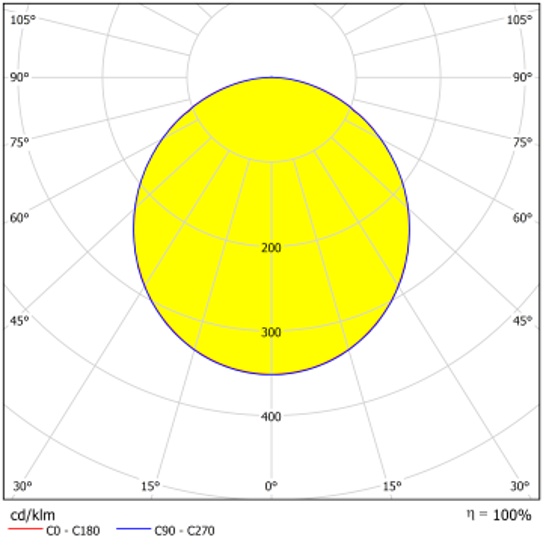

Light Distribution
G6060plk G 6060 PLK+
Filter By
Technical Data
Type Code Power (w) CCT (K) Light Output (lm) CRI V/Hz Weight (Kg)
GPLK+.6060.24.30 24 3000 3250 >80 220-240/50-60 3,1
GPLK+.6060.24.40 24 4000 3510 >80 220-240/50-60 3,1
GPLK+.6060.33.30 33 3000 4450 >80 220-240/50-60 3,1
GPLK+.6060.33.40 33 4000 4800 >80 220-240/50-60 3,1
