Housing
Sheet steel body with electrostatic powder coating.
Optics
Opal white polystyrene diffuser with lambertian light distribution.
Led
High-efficiency LED with CRI>80, achieving L90B50 ≥ 50,000 hours of lifetime.
Driver
Constant current output LED driver with high efficiency and Pf≥0.95
Options
1 or 3 hours emergency lighting kit
Dimming via DALI
Color
Ral 9016
Ral 9006

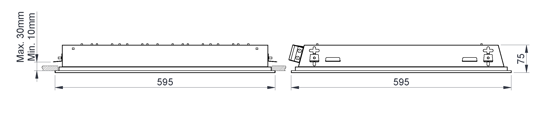

Dimensions
Downloads
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Cut-out Size (mm) |
|---|---|---|---|---|---|---|---|
| GPPL+.6060.24.30 | 24 | 3000 | 2880 | >80 | 220-240/50-60 | 3,7 | 580x580 |
| GPPL+.6060.24.40 | 24 | 4000 | 3120 | >80 | 220-240/50-60 | 3,7 | 580x580 |
| GPPL+.6060.33.30 | 33 | 3000 | 3950 | >80 | 220-240/50-60 | 3,7 | 580x580 |
| GPPL+.6060.33.40 | 33 | 4000 | 4260 | >80 | 220-240/50-60 | 3,7 | 580x580 |
