Housing
Sheet steel body with electrostatic powder coating.
Optics
Opal white polystyrene diffuser with lambertian light distribution.
Led
High-efficiency LED with CRI>80, achieving L90B50 ≥ 50,000 hours of lifetime.
Driver
Constant current output LED driver with high efficiency and Pf≥0.95
Options
* 1 or 3 hours emergency lighting kit
* Dimming via DALI
Color
Ral 9016
Ral 9006

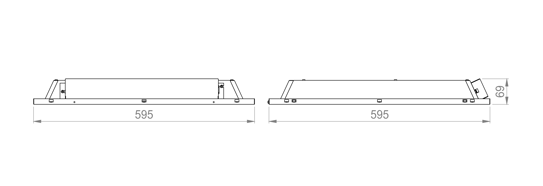

Dimensions
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Files |
|---|---|---|---|---|---|---|---|
| GVLO-T.6060.23.30 | 23 | 3000 | 2770 | >80 | 220-240/50-60 | 3,2 |
|
| GVLO-T.6060.23.40 | 23 | 4000 | 2860 | >80 | 220-240/50-60 | 3,2 |
|
| GVLO-T.6060.28.30 | 28 | 3000 | 3380 | >80 | 220-240/50-60 | 3,2 |
|
| GVLO-T.6060.28.40 | 28 | 4000 | 3520 | >80 | 220-240/50-60 | 3,2 |
|
| GVLO-T.6060.32.30 | 32 | 3000 | 3950 | >80 | 220-240/50-60 | 3,2 |
|
| GVLO-T.6060.32.40 | 32 | 4000 | 4110 | >80 | 220-240/50-60 | 3,2 |
|
| GVLO-T.6060.39.30 | 39 | 3000 | 4560 | >80 | 220-240/50-60 | 3,2 |
|
| GVLO-T.6060.39.40 | 39 | 4000 | 4730 | >80 | 220-240/50-60 | 3,2 |
|
