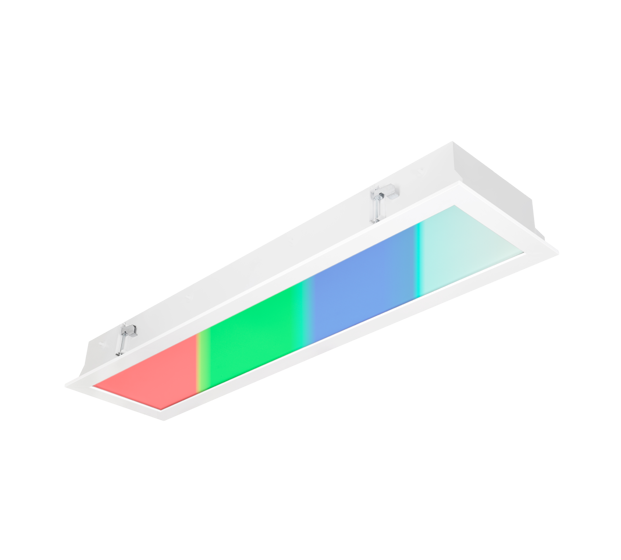

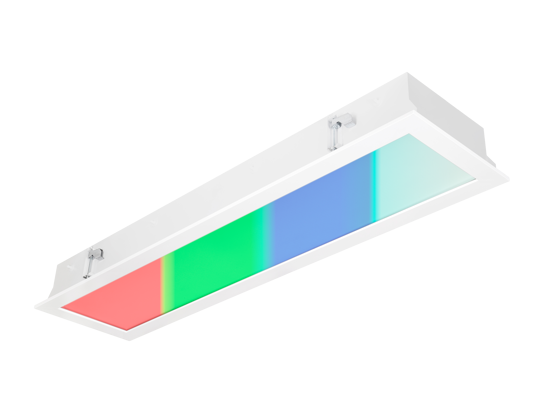

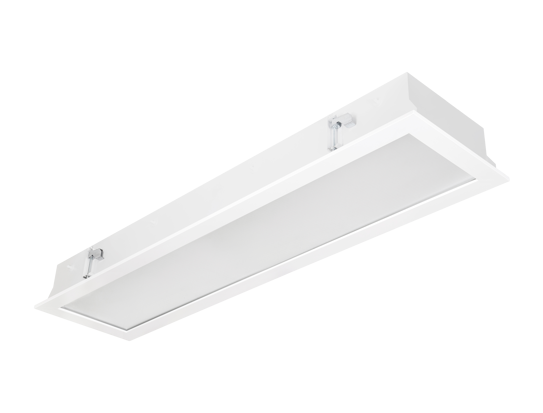

Hylum RGBW provides a very wide range of usage since it has the ability to change the light source. It can be easily installed with practical mounting parts and mounting method. As a product with IP protection; Since there are no bolts etc. connection parts on the visible surface, it does not disrupt the visual aesthetics and does not compromise on simplicity and elegance.
Product
- TypeE 3012 HYL-RGBW
- Type CodeEHYL.3012.92.RGB40.90
- CategoryIndoor Lighting
- ColorWhite (RAL 9016)
Technical Data
- Light SourceMid Power LED
- Power / Luminous flux35W / 2800 lm (White Channel)
92W (Total Watt) - Color temperatureRGB/4000K
- Color rendering indexCRI>90
- Electrical protection classCLASS I
- Voltage220V/240V
- Frequency50/60 Hz
- Luminous flux tolerance±7%
- Power consumption tolerance±7%
- LED lifeL90B50 > 100.000 h
Other Information
- IP protectionIP65/54
- Impact protectionIK08
- Weight12 kg
- Dimensions (W x L x H)295mm x 1195mm x 121mm
- Optical protectionTempered Glass
- Body materialAntibacterial electrostatic powder paint
DKP sheet metal body and aluminum frame - Diffuser materialOpal polystyrene diffuser that is resistant to UV rays, does not yellow, and provides homogeneous light distribution
- Working environment temperature-25...+35 °C
Dimensions
