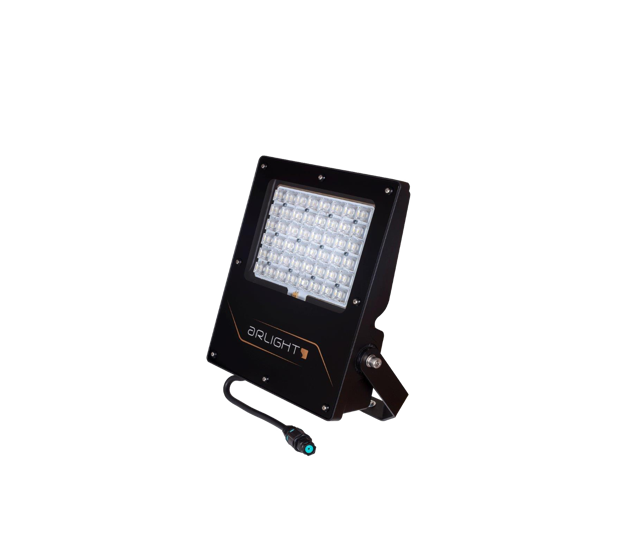

B 0375 Sls Header

Solis Medium

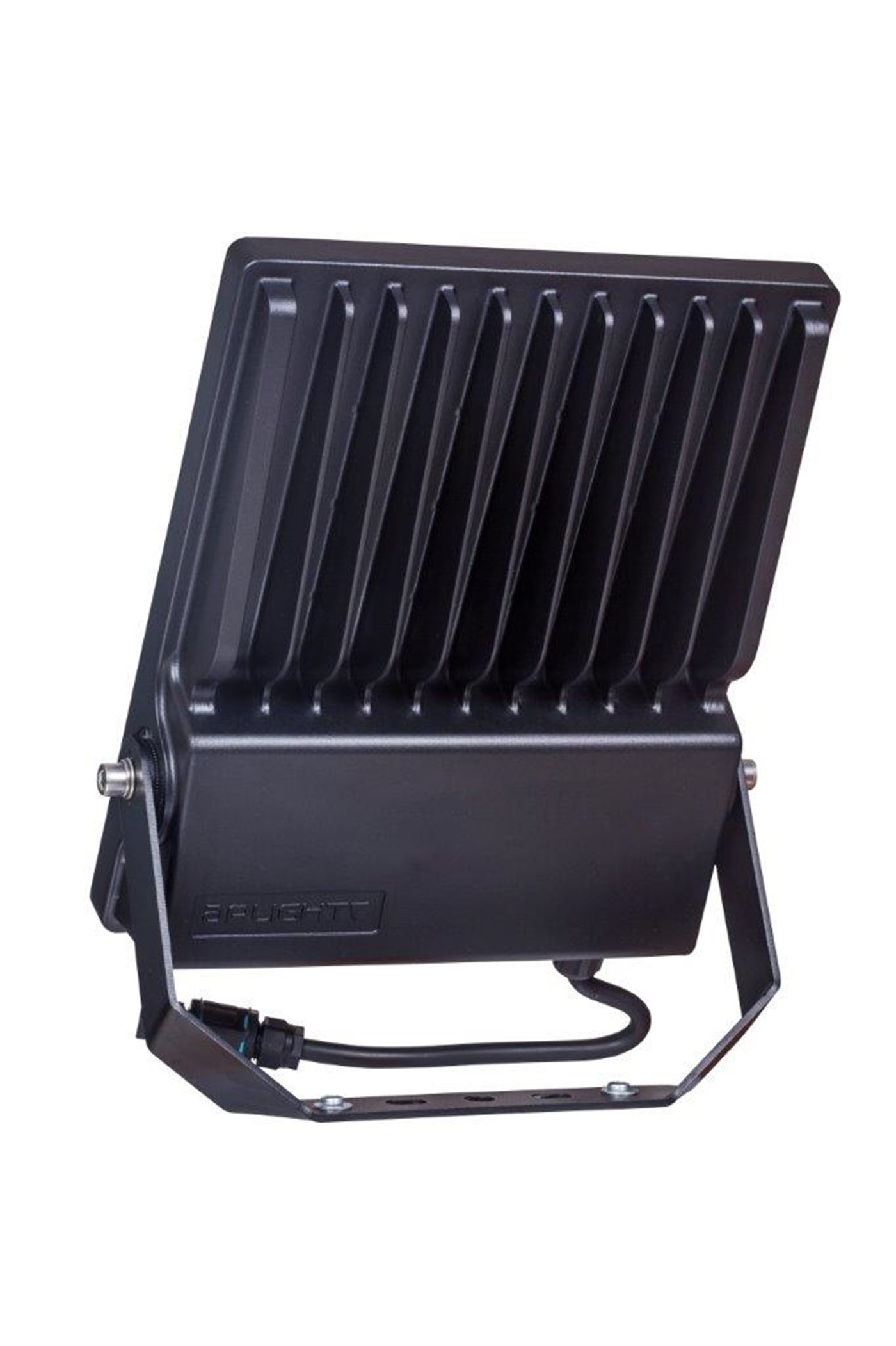

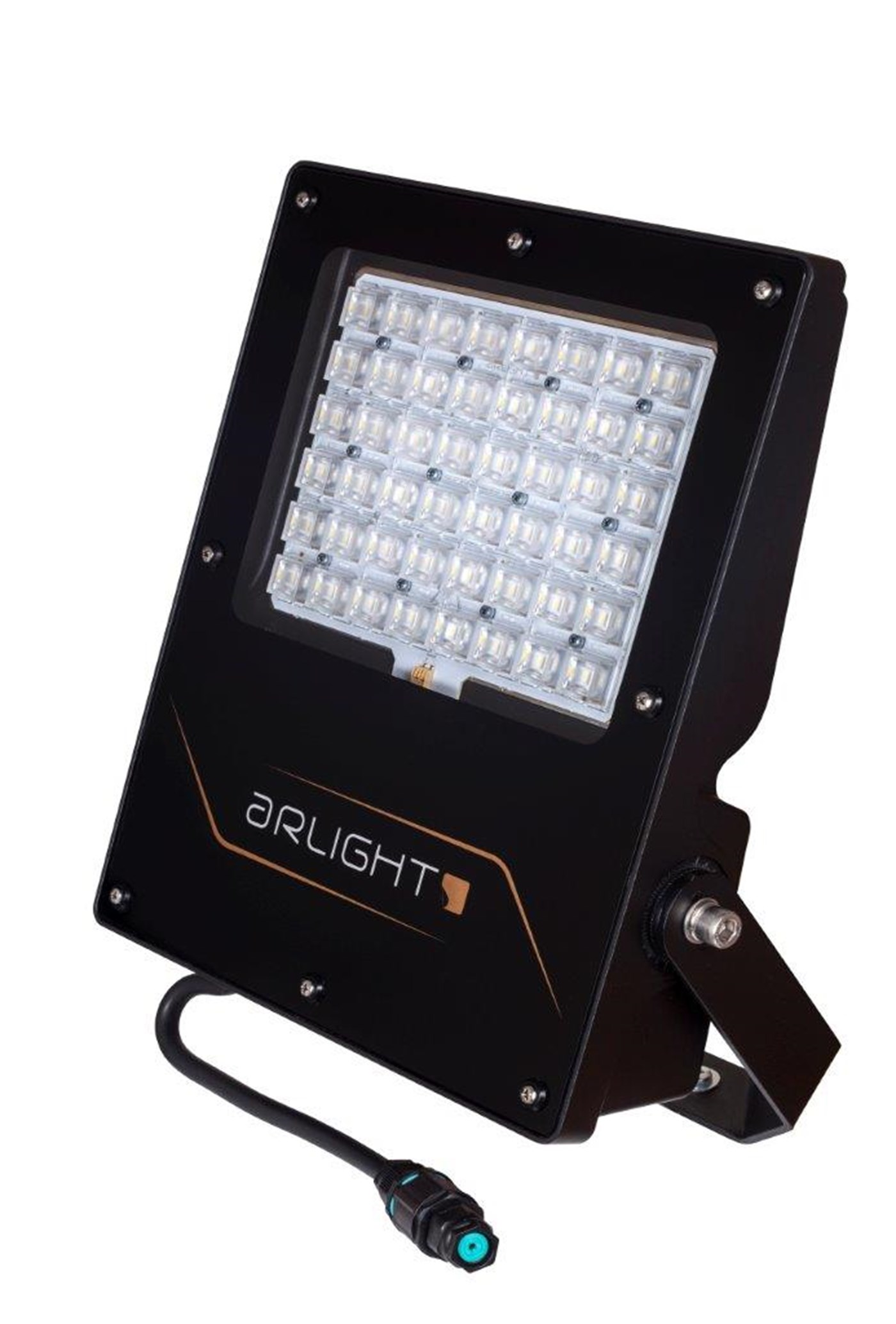

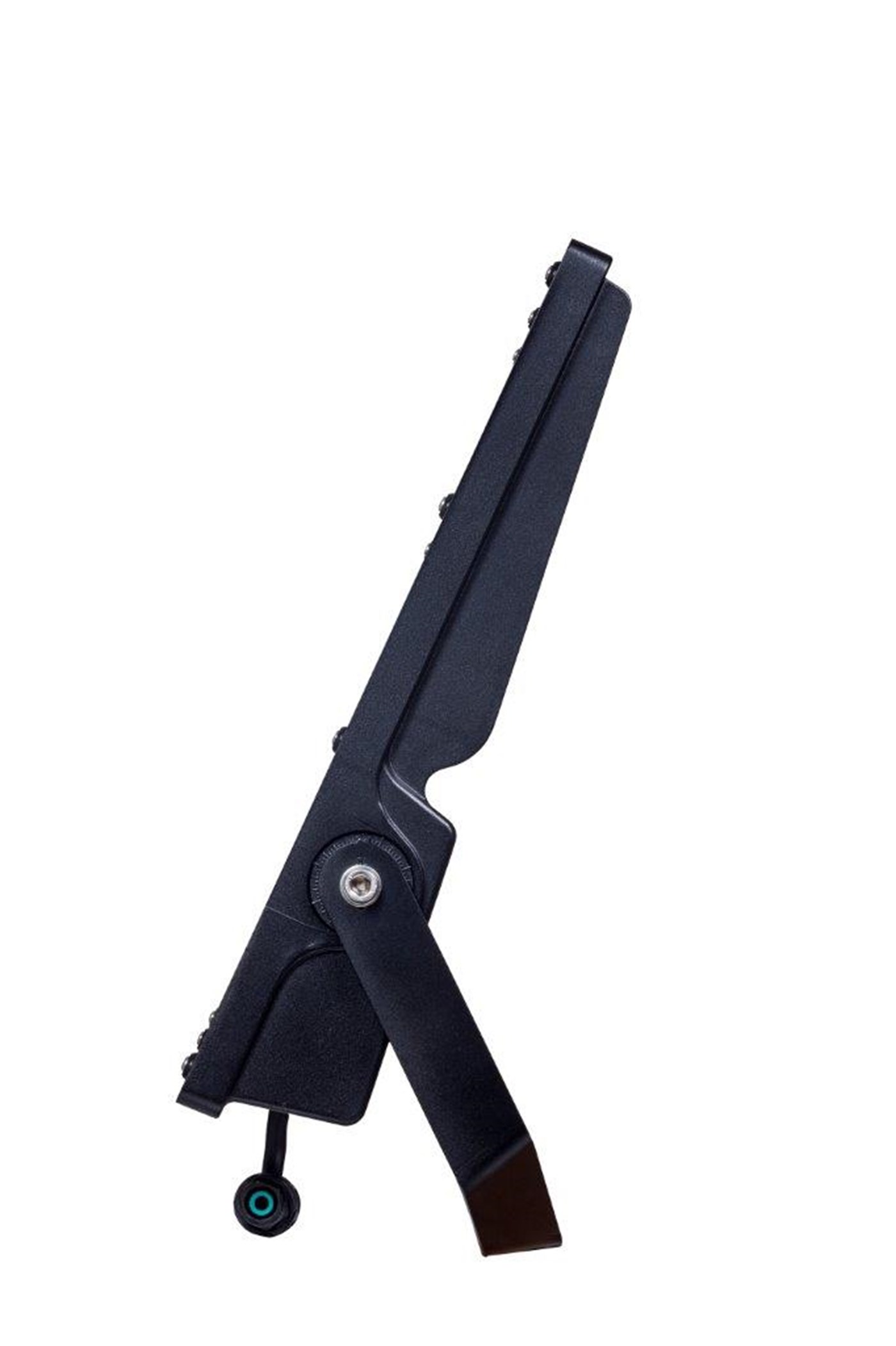

B 0375 SLS 06 B 0375 SLS 08 B 0375 SLS 04
Ip 66Ik 08Ikon 30ToprakCeOutdoor

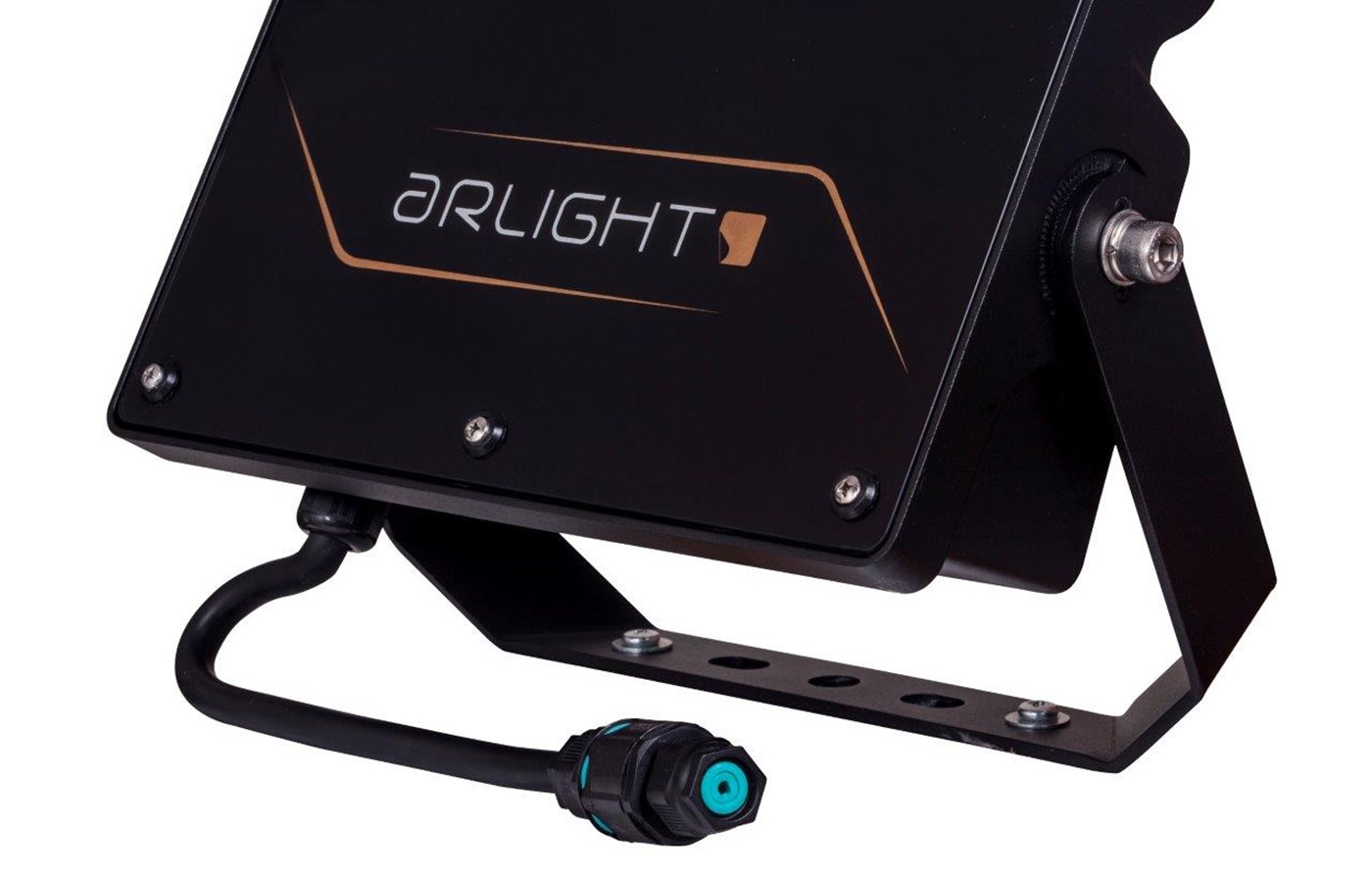

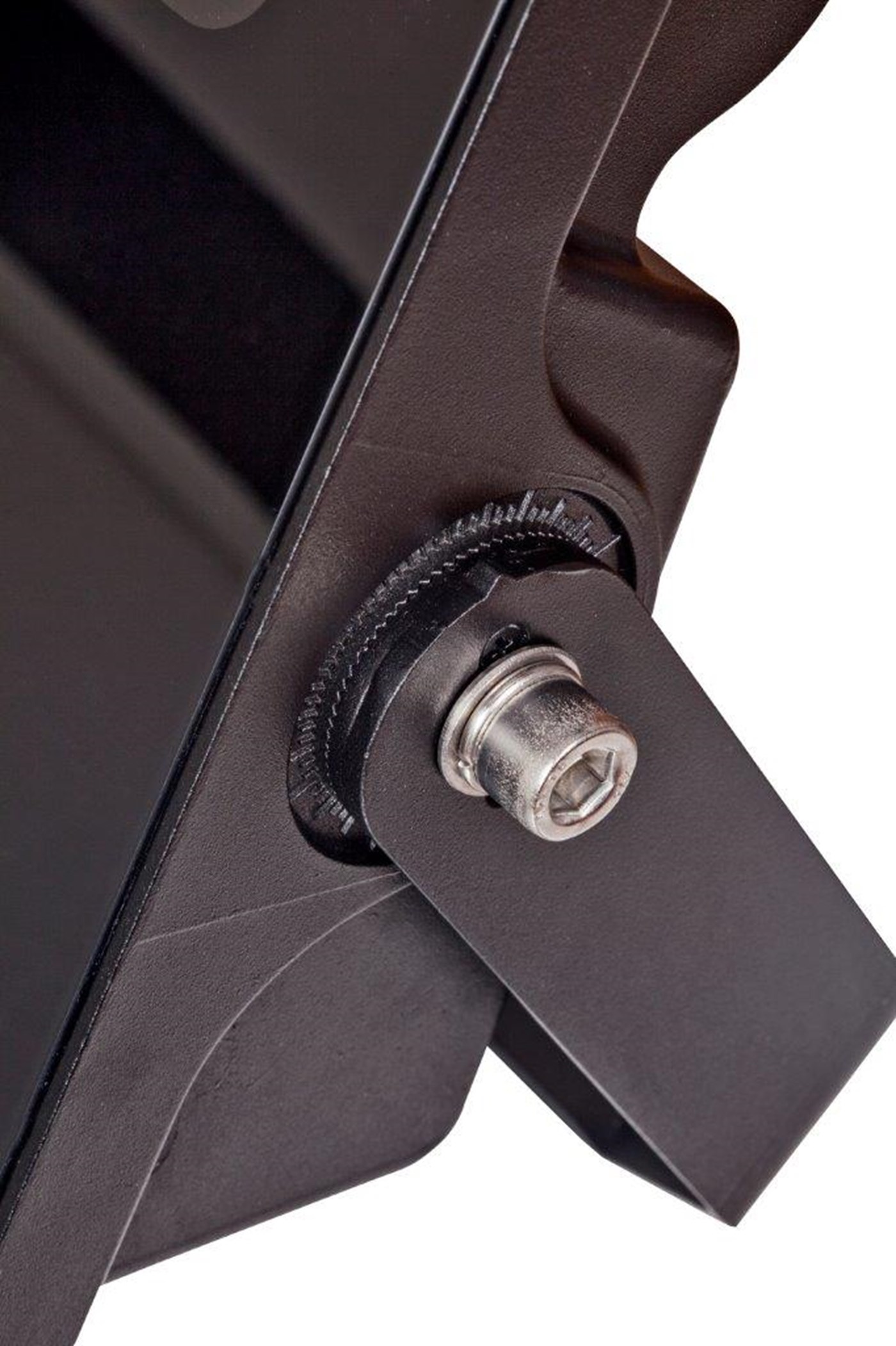

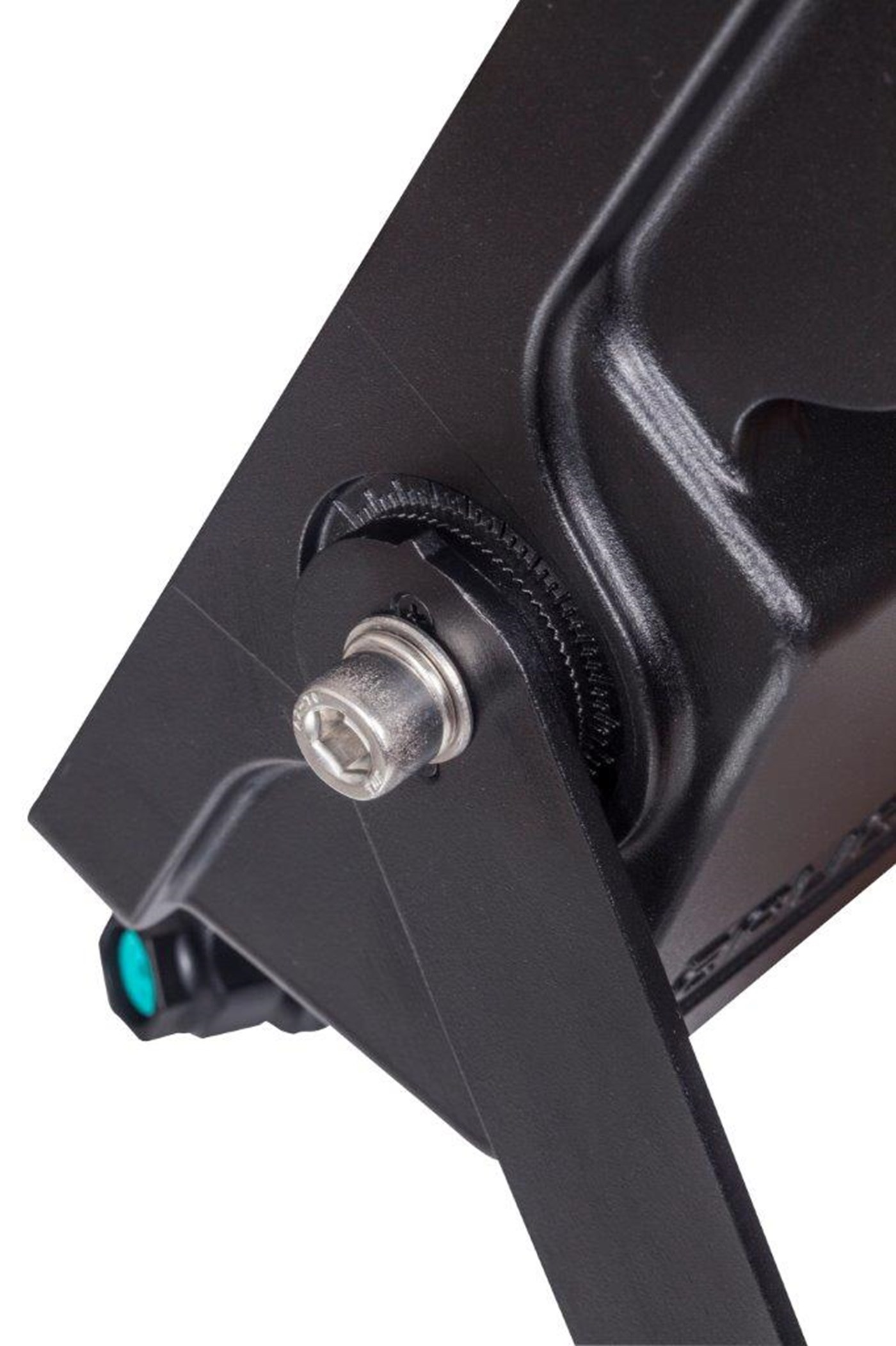

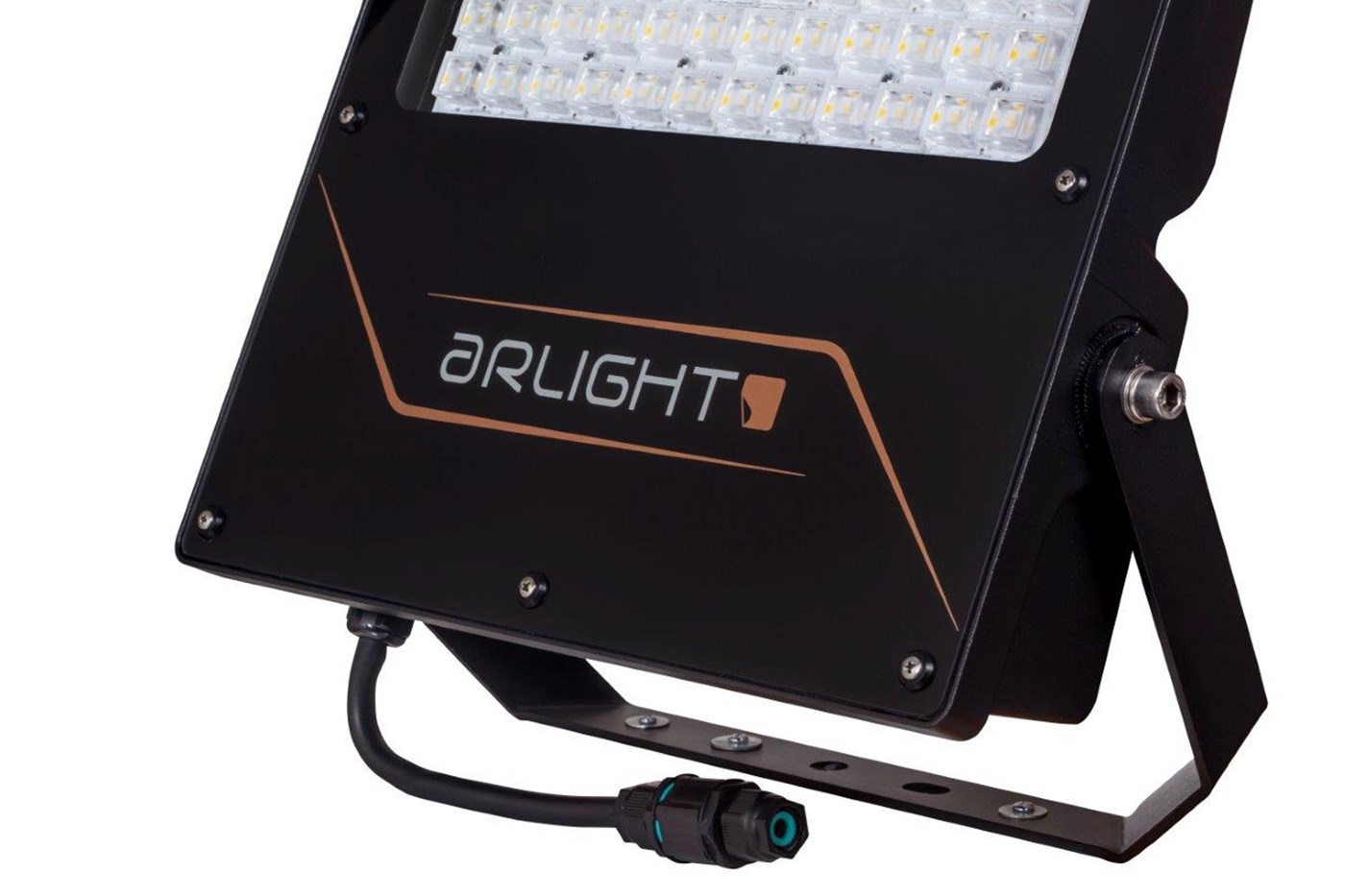

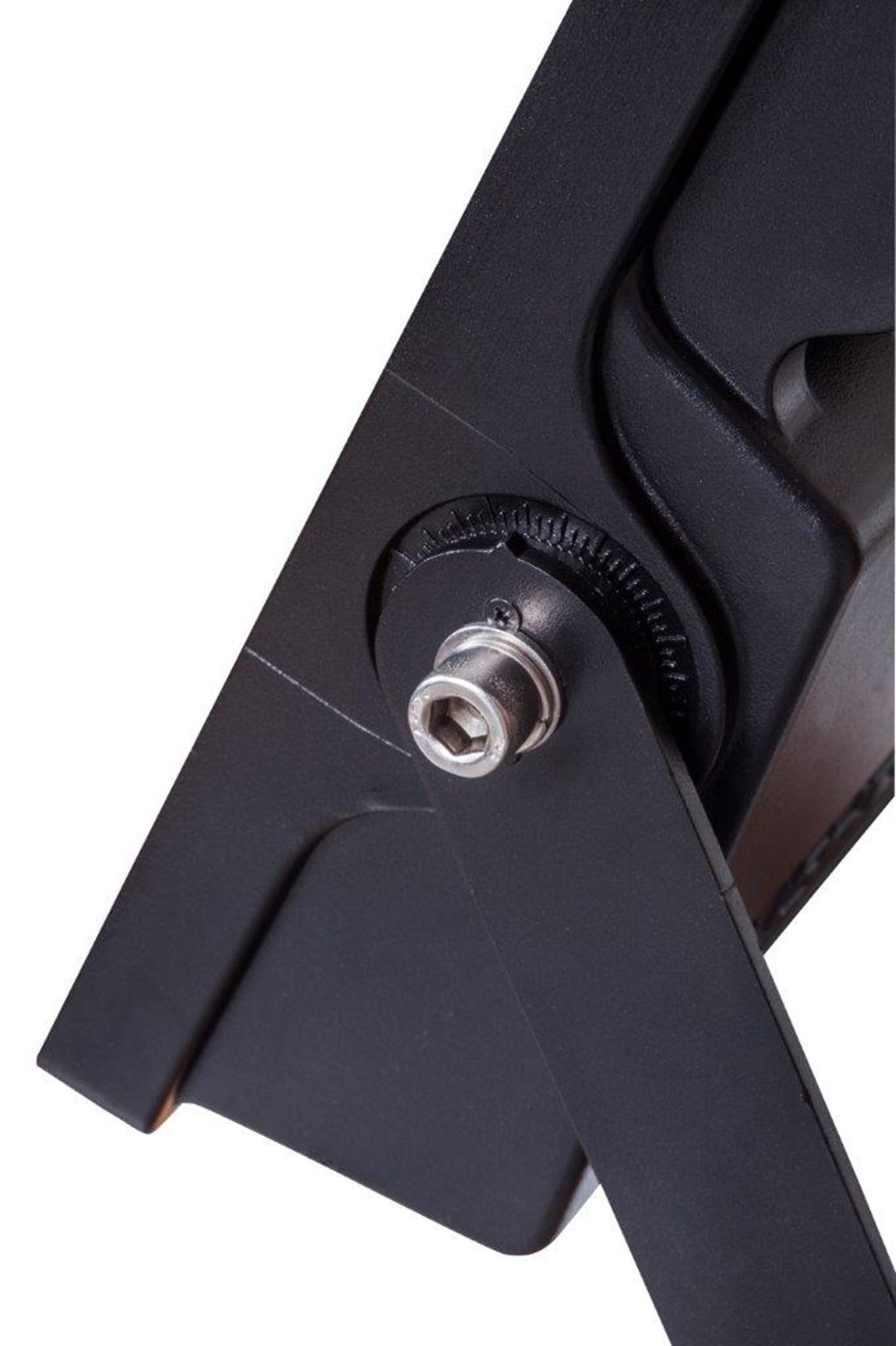

Solis series is designed as a strong product family with it’s aesthetic look, slim body structure and stylish form. SOLIS-Medium which is the member of this product family has a wide optical lens option to be used in many different areas. For fast assembly, it provides external mounting parts to provide precise installation at 5° angles. There are three different lumen alternatives that can be used in different architectural applications. In order to meet special demands, Solis Medium can be produce at bigger levels as well. With external IP68 connector, easy and safe connection can be done without interfering with the product.

Product
  • TypeB 0375 SLS
  • CategoryFloodlight
  • ColorBlack (RAL 9005)
Technical Data
  • Light sourceHigh Power LED
  • Power48W - 140W
  • Color temperature4000K (optional 3000K, 6500K)
  • Color rendering indexCRI>70 (optional >80)
  • Beam angle15°, 25°, 70°, 100°, 20°+115°, ASM-L4, ASM-L8
  • Luminare classSınıf 1
  • Voltage220V/240V
  • Frequency50/60 Hz
  • DimmingOptional (DALI)
  • Surge protectionMin. 6kV com. mode (L-N-GND)
  • Luminous flux tolerance±7%
  • Power consumption tolerance±7%
  • LED lifeL90B50 > 130.000 h
Other Information
  • Ingress protectionIP66
  • Impaction protectionIK08
  • Weight7 kg
  • Dimensions (G x Y x U)300m x 375mm x 123mm
  • Optical coverTempered glass
  • Cable30 cm with cable connector
  • Housing MaterialAluminum die cast
  • Optic materialPMMA
  • Ambient temperature range-40...+40 °C (140W)
    -40...+50 °C (48W, 69W, 105W)
  • Performance ambient temp.25 °C

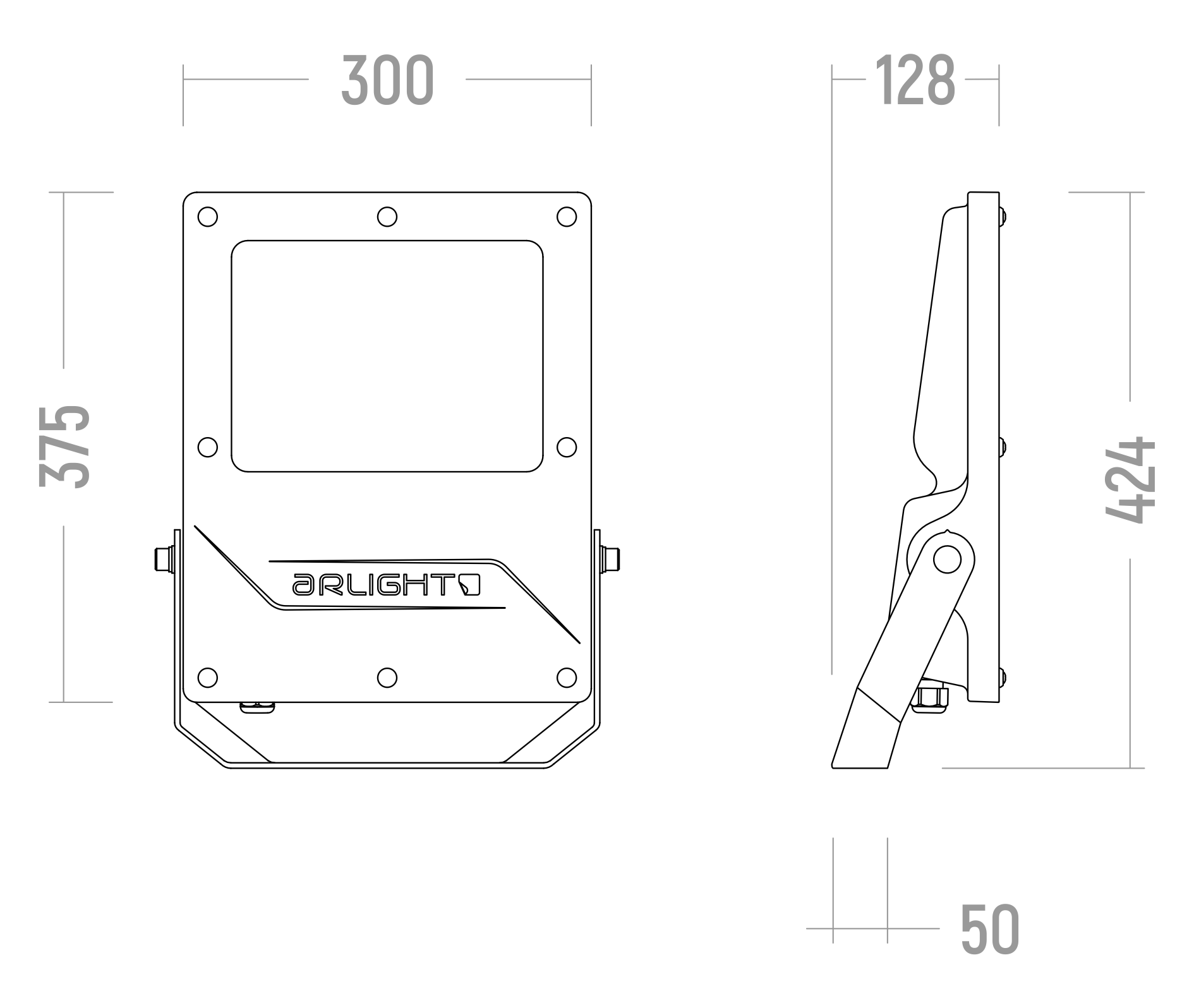

Dimensions
B 0375 Sls Cizim
Gallery
Light Distribution

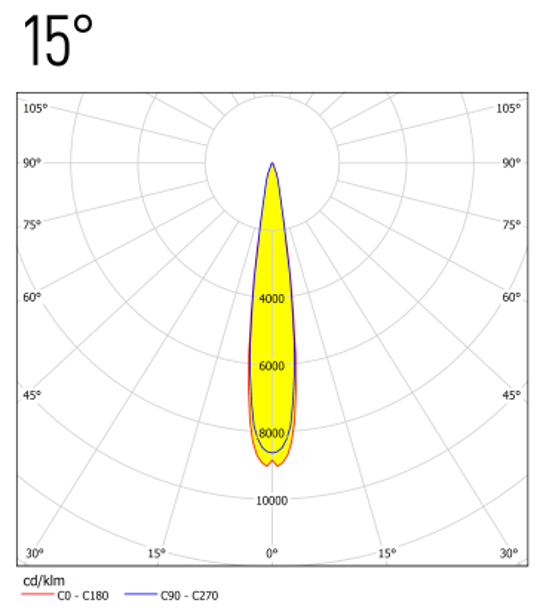

BSLS.0375.135.40.15 BSLS.0375.135.40.15

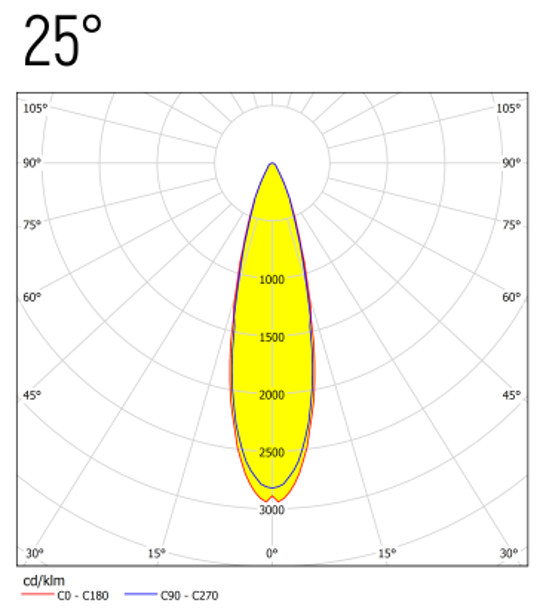

BSLS.0375.135.40.25 BSLS.0375.135.40.25

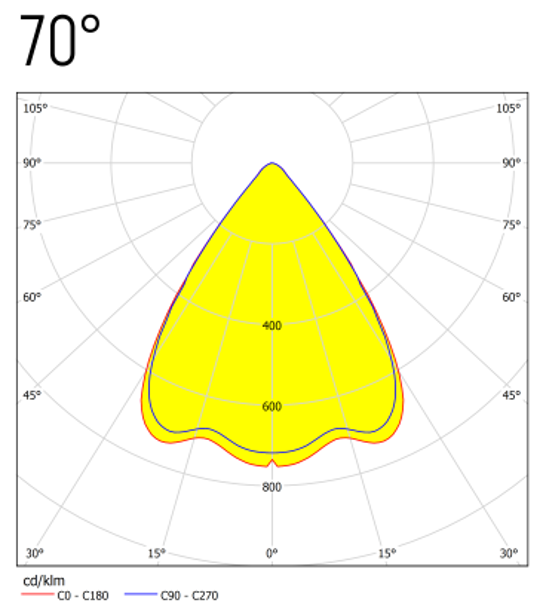

BSLS.0375.135.40.70 BSLS.0375.135.40.70

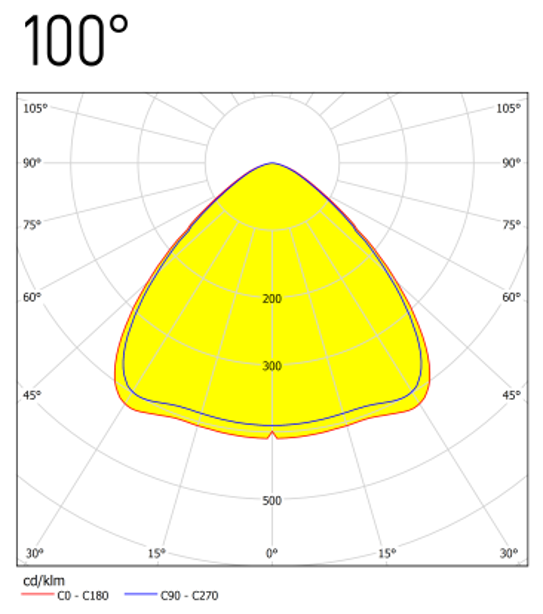

BSLS.0375.135.40.100 BSLS.0375.135.40.100

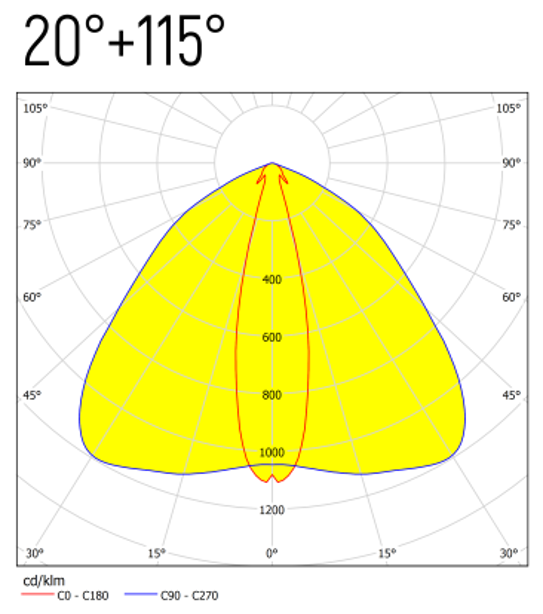

BSLS.0375.135.40.20115 BSLS.0375.135.40.20115

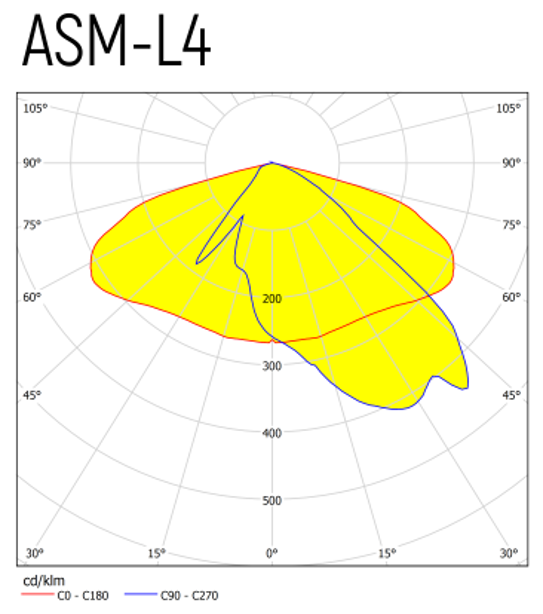

BSLS.0375.135.40.ASL4 BSLS.0375.135.40.ASL4

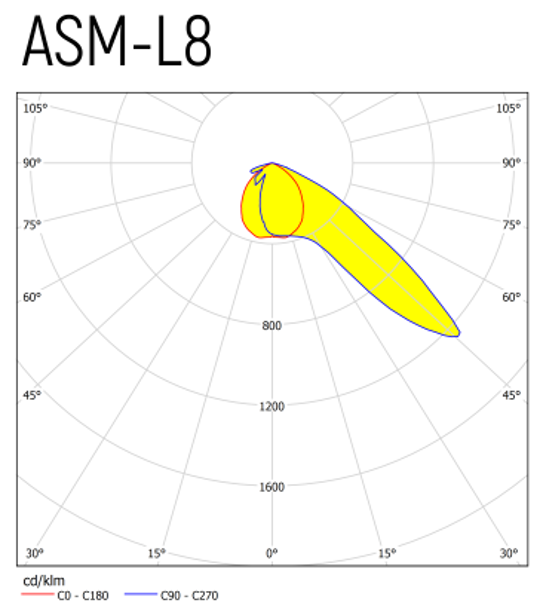

BSLS.0375.135.40.ASL8 BSLS.0375.135.40.ASL8
  • BSLS.0375.135.40.15
  • BSLS.0375.135.40.25
  • BSLS.0375.135.40.70
  • BSLS.0375.135.40.100
  • BSLS.0375.135.40.20115
  • BSLS.0375.135.40.ASL4
  • BSLS.0375.135.40.ASL8
Filter By
Technical Data
Type Code Power (w) CCT (K) Light Output (lm) CRI V/Hz Beam Angle lm/W Files
BSLS.0375.140.40.15 140 4000 18930 70 220-240/50-60 15° 135 Files
BSLS.0375.140.40.25 140 4000 18500 70 220-240/50-60 25° 132 Files
BSLS.0375.140.40.70 140 4000 19020 70 220-240/50-60 70° 135 Files
BSLS.0375.140.40.100 140 4000 17300 70 220-240/50-60 100° 123 Files
BSLS.0375.140.40.20115 140 4000 18400 70 220-240/50-60 20°+115° 131 Files
BSLS.0375.140.40.ASL4 140 4000 18060 70 220-240/50-60 ASM-L4 129 Files
BSLS.0375.140.40.ASL8 140 4000 18700 70 220-240/50-60 ASM-L8 133 Files
BSLS.0375.105.40.15 105 4000 15590 70 220-240/50-60 15° 148 Files
BSLS.0375.105.40.25 105 4000 15420 70 220-240/50-60 25° 146 Files
BSLS.0375.105.40.70 105 4000 15550 70 220-240/50-60 70° 139 Files
BSLS.0375.105.40.100 105 4000 14640 70 220-240/50-60 100° 139 Files
BSLS.0375.105.40.20115 105 4000 15110 70 220-240/50-60 20°+115° 143 Files
BSLS.0375.105.40.ASL4 105 4000 14905 70 220-240/50-60 ASM-L4 141 Files
BSLS.0375.105.40.ASL8 105 4000 15320 70 220-240/50-60 ASM-L8 145 Files
BSLS.0375.69.40.15 69 4000 10930 70 220-240/50-60 15° 158 Files
BSLS.0375.69.40.25 69 4000 10700 70 220-240/50-60 25° 155 Files
BSLS.0375.69.40.70 69 4000 10850 70 220-240/50-60 70° 157 Files
BSLS.0375.69.40.100 69 4000 10300 70 220-240/50-60 100° 149 Files
BSLS.0375.69.40.20115 69 4000 10600 70 220-240/50-60 20°+115° 153 Files
BSLS.0375.69.40.ASL4 69 4000 10350 70 220-240/50-60 ASM-L4 150 Files
BSLS.0375.69.40.ASL8 69 4000 10600 70 220-240/50-60 ASM-L8 153 Files
BSLS.0375.48.40.15 48 4000 7990 70 220-240/50-60 15° 166 Files
BSLS.0375.48.40.25 48 4000 7800 70 220-240/50-60 25° 162 Files
BSLS.0375.48.40.70 48 4000 7710 70 220-240/50-60 70° 161 Files
BSLS.0375.48.40.100 48 4000 7560 70 220-240/50-60 100° 157 Files
BSLS.0375.48.40.20115 48 4000 7880 70 220-240/50-60 20°+115° 164 Files
BSLS.0375.48.40.ASL4 48 4000 7630 70 220-240/50-60 ASM-L4 158 Files
BSLS.0375.48.40.ASL8 48 4000 7930 70 220-240/50-60 ASM-L8 165 Files
BSLS.S.0375.140.57.15 140 5700 17590 80 220-240/50-60 15° 126 Files
BSLS.S.0375.140.57.25 140 5700 17190 80 220-240/50-60 25° 123 Files
BSLS.S.0375.140.57.70 140 5700 17160 80 220-240/50-60 70° 123 Files
BSLS.S.0375.140.57.100 140 5700 16570 80 220-240/50-60 100° 118 Files
BSLS.S.0375.140.57.20115 140 5700 16600 80 220-240/50-60 20°+115° 119 Files
BSLS.S.0375.140.57.ASL4 140 5700 16380 80 220-240/50-60 ASM-L4 117 Files
BSLS.S.0375.140.57.ASL8 140 5700 16570 80 220-240/50-60 ASM-L8 122 Files
BSLS.S.0375.105.57.15 105 5700 14250 80 220-240/50-60 15° 136 Files
BSLS.S.0375.105.57.25 105 5700 14025 80 220-240/50-60 25° 134 Files
BSLS.S.0375.105.57.70 105 5700 13920 80 220-240/50-60 70° 133 Files
BSLS.S.0375.105.57.100 105 5700 13430 80 220-240/50-60 100° 128 Files
BSLS.S.0375.105.57.20115 105 5700 13585 80 220-240/50-60 20°+115° 130 Files
BSLS.S.0375.105.57.ASL4 105 5700 13100 80 220-240/50-60 ASM-L4 125 Files
BSLS.S.0375.105.57.ASL8 105 5700 13580 80 220-240/50-60 ASM-L8 129 Files
BSLS.S.0375.69.57.15 69 5700 9790 80 220-240/50-60 15° 144 Files
BSLS.S.0375.69.57.25 69 5700 9650 80 220-240/50-60 25° 142 Files
BSLS.S.0375.69.57.70 69 5700 9580 80 220-240/50-60 70° 141 Files
BSLS.S.0375.69.57.100 69 5700 9245 80 220-240/50-60 100° 136 Files
BSLS.S.0375.69.57.20115 69 5700 9380 80 220-240/50-60 20°+115° 138 Files
BSLS.S.0375.69.57.ASL4 69 5700 9110 80 220-240/50-60 ASM-L4 134 Files
BSLS.S.0375.69.57.ASL8 69 5700 9315 80 220-240/50-60 ASM-L8 137 Files
BSLS.S.0375.48.57.15 48 5700 7240 80 220-240/50-60 15° 150 Files
BSLS.S.0375.48.57.25 48 5700 7110 80 220-240/50-60 25° 147 Files
BSLS.S.0375.48.57.70 48 5700 7020 80 220-240/50-60 70° 145 Files
BSLS.S.0375.48.57.100 48 5700 6765 80 220-240/50-60 100° 140 Files
BSLS.S.0375.48.57.20115 48 5700 6890 80 220-240/50-60 20°+115° 142 Files
BSLS.S.0375.48.57.ASL4 48 5700 6700 80 220-240/50-60 ASM-L4 139 Files
BSLS.S.0375.48.57.ASL8 48 5700 6895 80 220-240/50-60 ASM-L8 143 Files
