Housing
Aluminium injection with electrostatic powder coating and air valve (ventile), monoblok silikon gasket
Optics
Special design, clear, acrylic (PMMA) optic lens
Glass
4mm clear tempered glass
LED
High-power LED with high efficacy
Driver
Constant current driver with high efficiency
Ambient Temperature
-40 °C/+50 °C
Impact Resistance
Glass : IK08
Body : IK10
Color
ARL-G90
Ral 9005

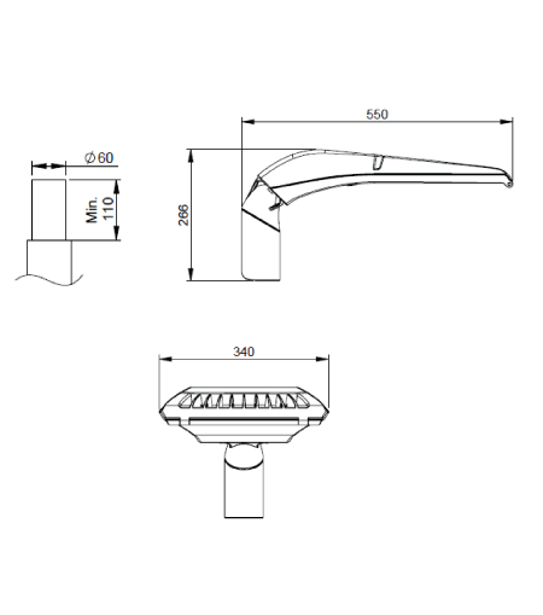

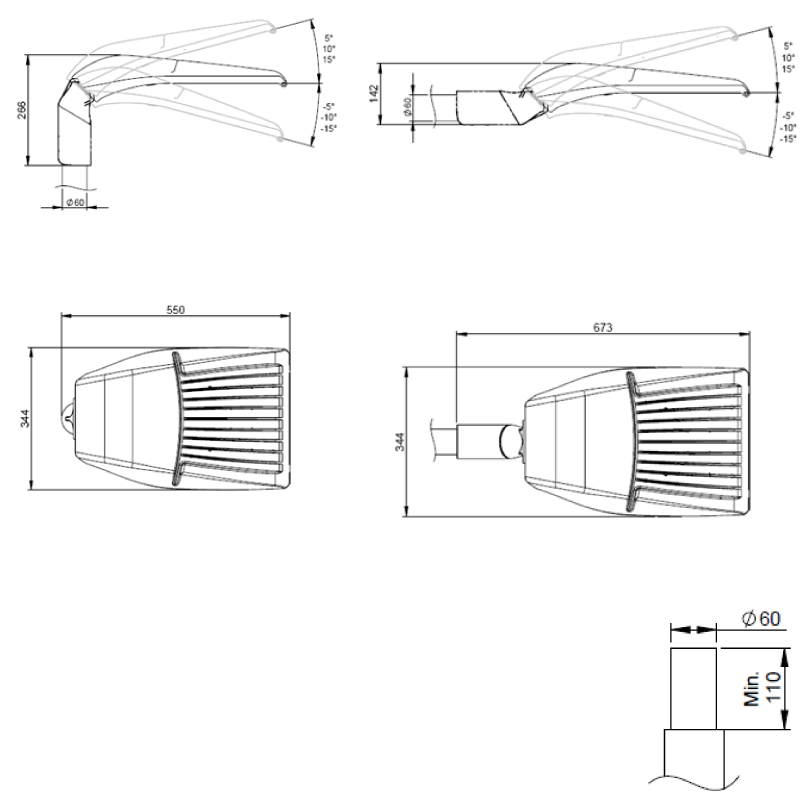

Dimensions

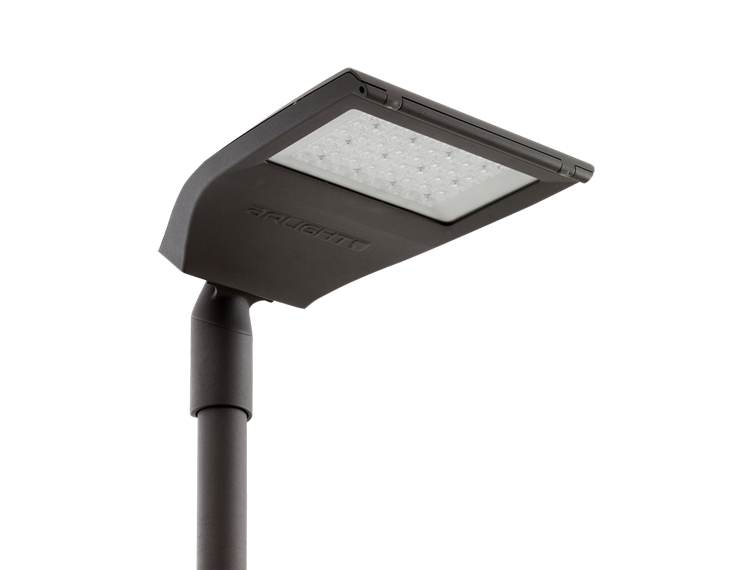

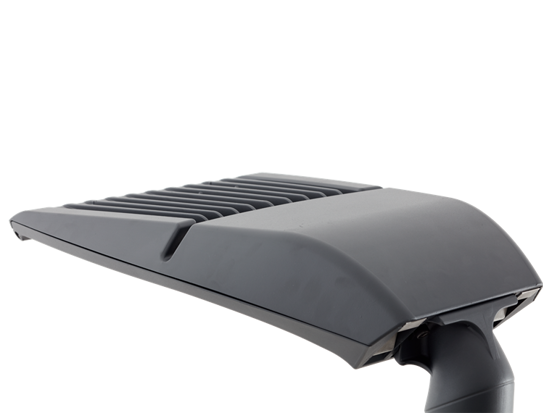

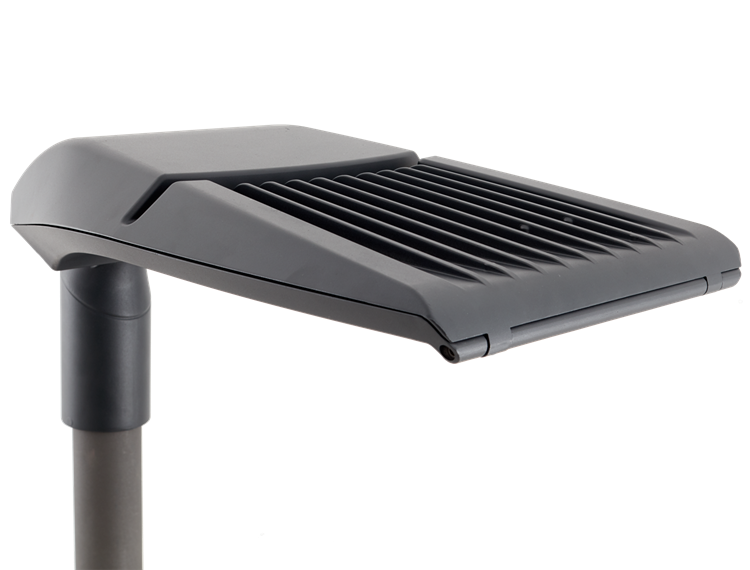

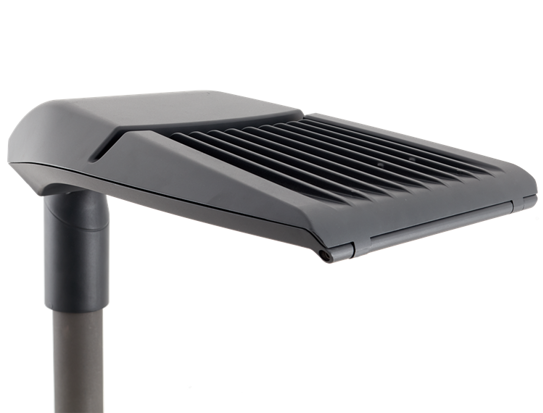

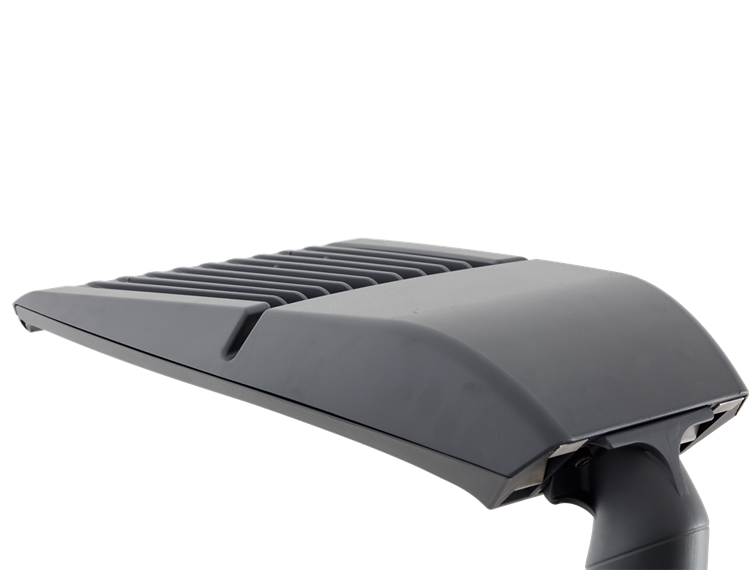

Gallery
Light Distribution

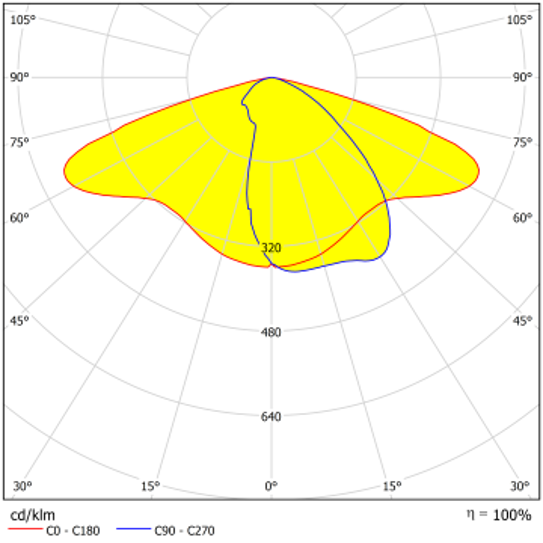

- BSTA.550.140.40.L1

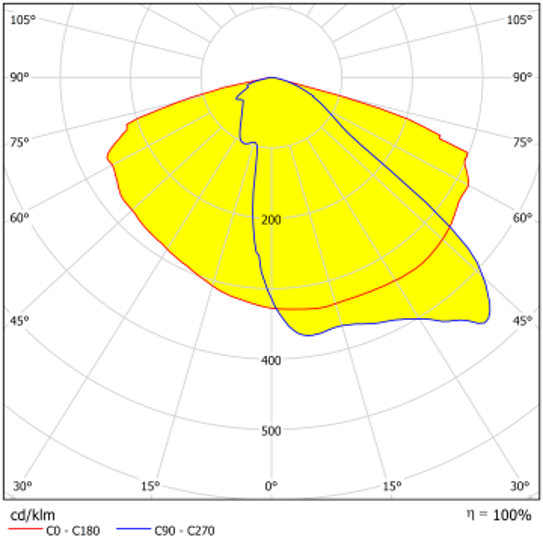

- BSTA.550.140.40.L2

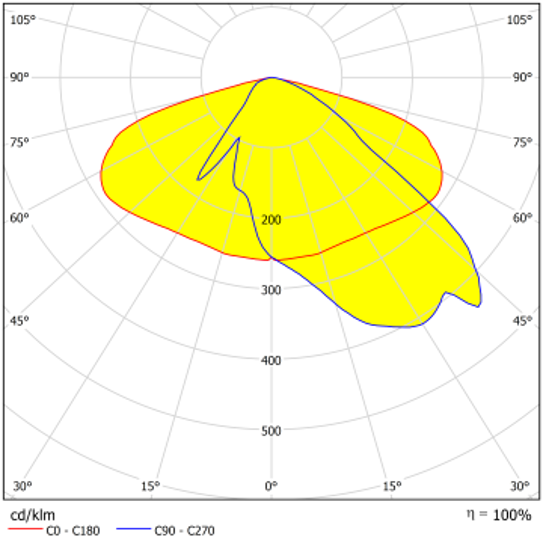

- BSTA.550.140.40.L3

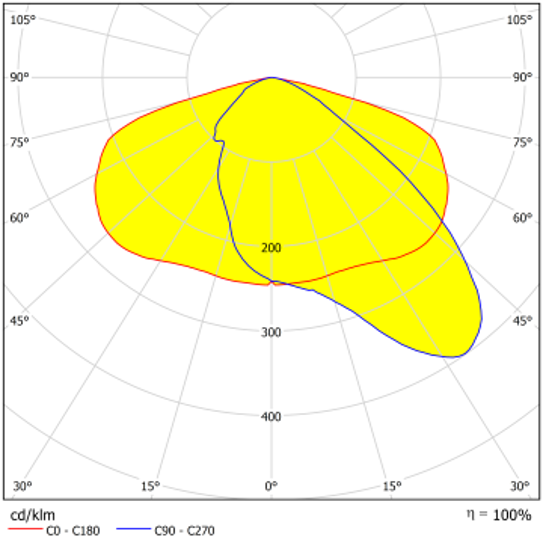

- BSTA.550.140.40.L4

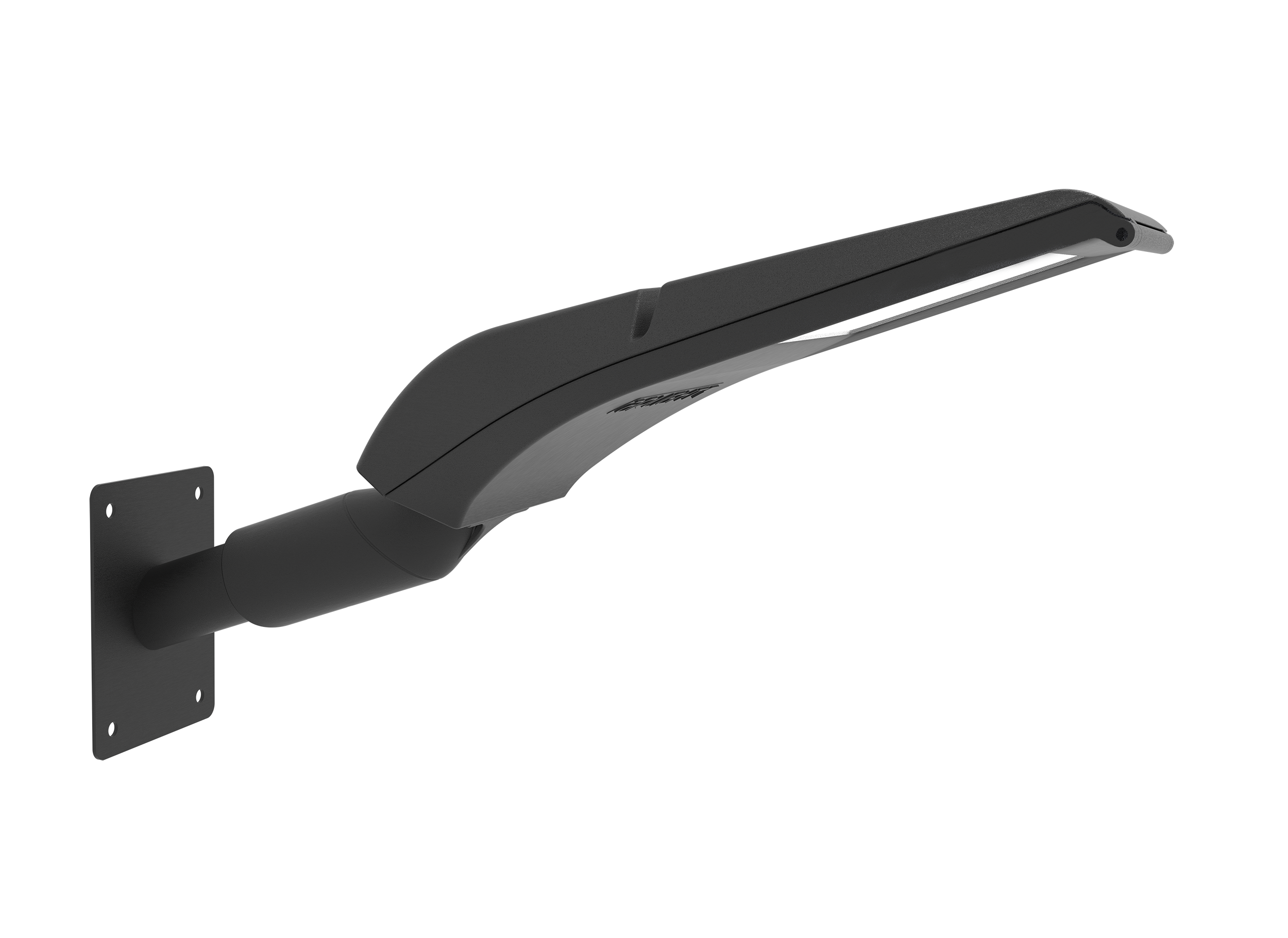

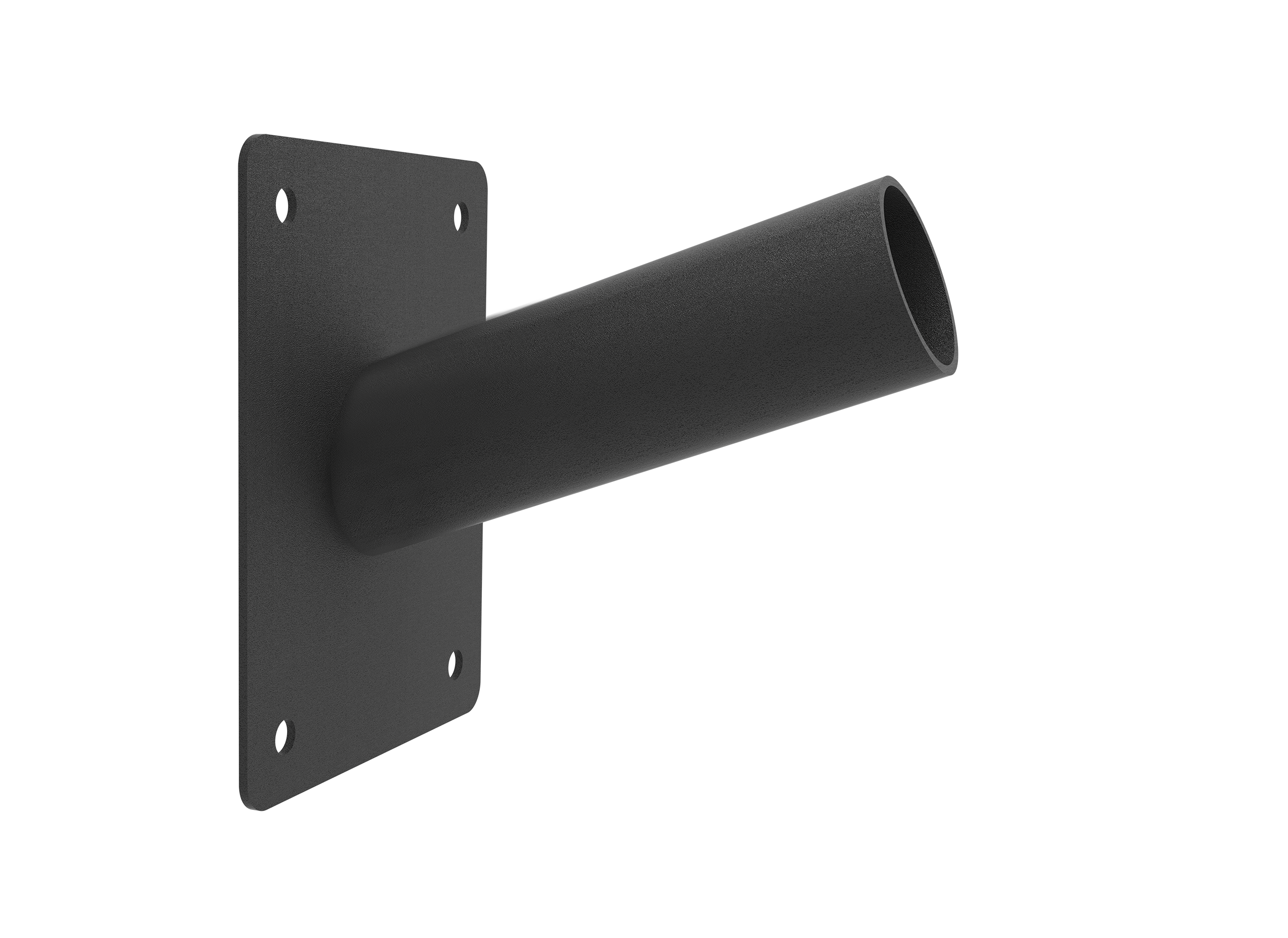

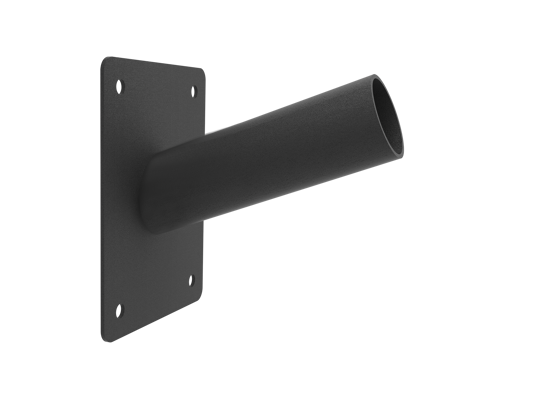

Accessories
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Files |
|---|---|---|---|---|---|---|---|
| BSTA.550.48.40.L1 | 48 | 4000 | 7710 | >70 | 220-240/50-60 | 8,5 |
|
| BSTA.550.48.40.L2 | 48 | 4000 | 7750 | >70 | 220-240/50-60 | 8,5 |
|
| BSTA.550.48.40.L3 | 48 | 4000 | 7780 | >70 | 220-240/50-60 | 8,5 |
|
| BSTA.550.48.40.L4 | 48 | 4000 | 7850 | >70 | 220-240/50-60 | 8,5 |
|
| BSTA.550.58.40.L1 | 58 | 4000 | 8980 | >70 | 220-240/50-60 | 8,5 |
|
| BSTA.550.58.40.L2 | 58 | 4000 | 9000 | >70 | 220-240/50-60 | 8,5 |
|
| BSTA.550.58.40.L3 | 58 | 4000 | 9150 | >70 | 220-240/50-60 | 8,5 |
|
| BSTA.550.58.40.L4 | 58 | 4000 | 9180 | >70 | 220-240/50-60 | 8,5 |
|
| BSTA.550.69.40.L1 | 69 | 4000 | 10360 | >70 | 220-240/50-60 | 8,5 |
|
| BSTA.550.69.40.L2 | 69 | 4000 | 10680 | >70 | 220-240/50-60 | 8,5 |
|
| BSTA.550.69.40.L3 | 69 | 4000 | 10580 | >70 | 220-240/50-60 | 8,5 |
|
| BSTA.550.69.40.L4 | 69 | 4000 | 10460 | >70 | 220-240/50-60 | 8,5 |
|
| BSTA.550.105.40.L1 | 105 | 4000 | 15970 | >70 | 220-240/50-60 | 8,5 |
|
| BSTA.550.105.40.L2 | 105 | 4000 | 15980 | >70 | 220-240/50-60 | 8,5 |
|
| BSTA.550.105.40.L3 | 105 | 4000 | 16010 | >70 | 220-240/50-60 | 8,5 |
|
| BSTA.550.105.40.L4 | 105 | 4000 | 15960 | >70 | 220-240/50-60 | 8,5 |
|
| BSTA.550.140.40.L1 | 140 | 4000 | 19730 | >70 | 220-240/50-60 | 9 |
|
| BSTA.550.140.40.L2 | 140 | 4000 | 19560 | >70 | 220-240/50-60 | 9 |
|
| BSTA.550.140.40.L3 | 140 | 4000 | 19750 | >70 | 220-240/50-60 | 9 |
|
| BSTA.550.140.40.L4 | 140 | 4000 | 19440 | >70 | 220-240/50-60 | 9 |
|
