Housing
Aluminium injection with electrostatic powder coating and air valve (ventile), monoblok silikon gasket
Optics
Special design, clear, acrylic (PMMA) optic lens
Glass
4mm clear tempered glass
LED
High-power LED with high efficacy
Driver
Constant current driver with high efficiency
Ambient Temperature
-40 °C/+50 °C
Impact Resistance
Glass : IK08
Body : IK10

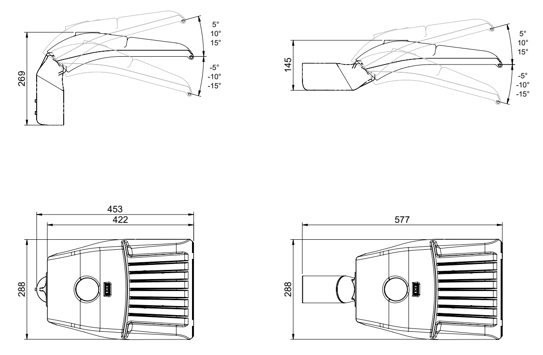

Dimensions
Light Distribution

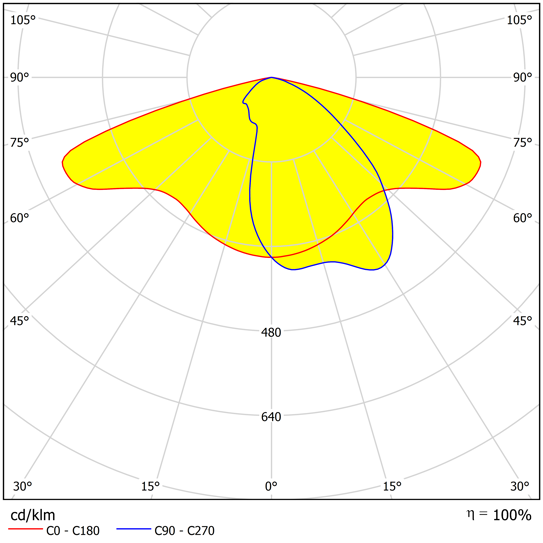

- BSTA.450.79.40.L1

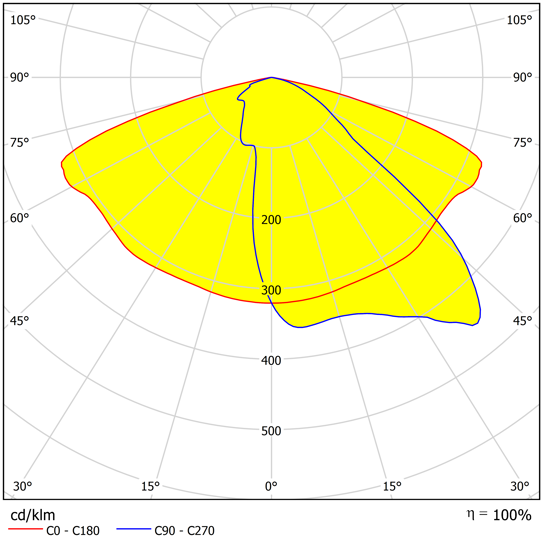

- BSTA.450.79.40.L2

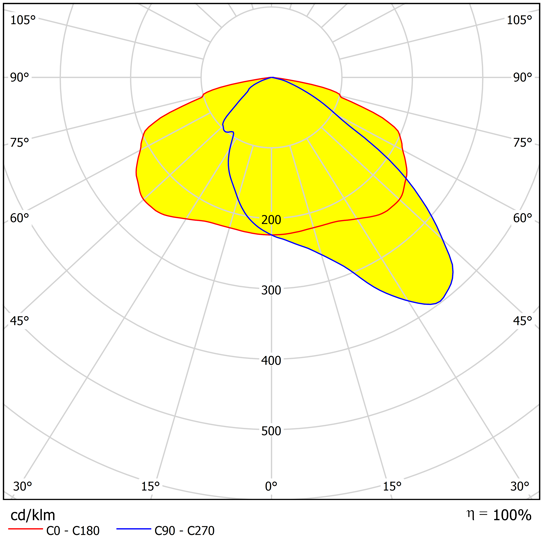

- BSTA.450.79.40.L3

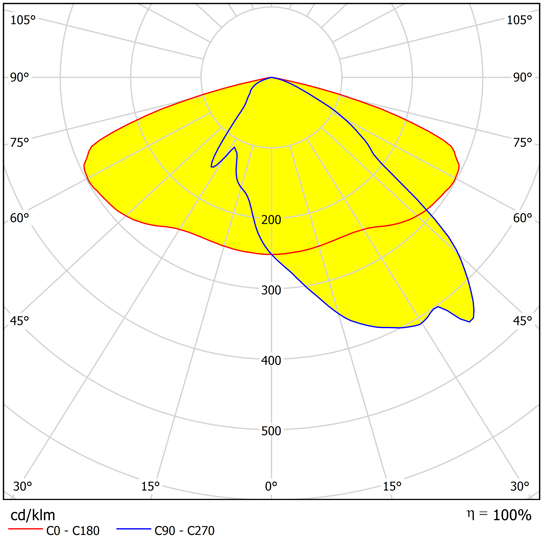

- BSTA.450.79.40.L4

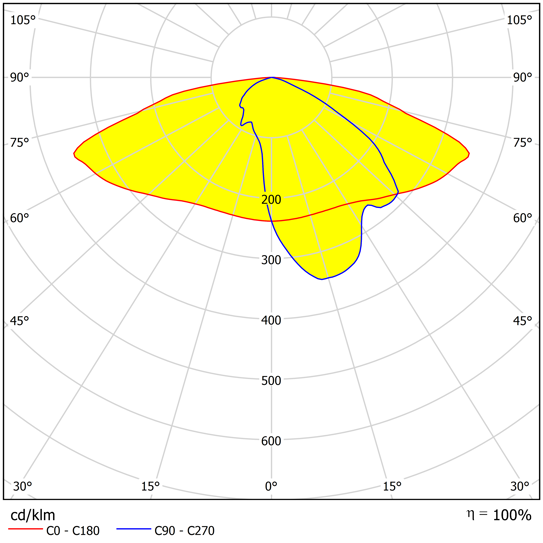

- BSTA.450.79.40.L6

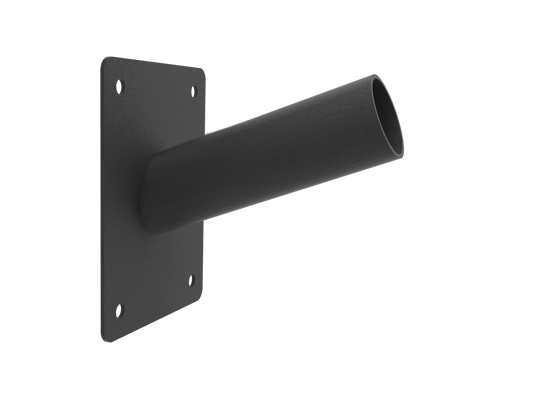

Accessories
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | lm/W | Files |
|---|---|---|---|---|---|---|---|---|
| BSTA.450.36.40.L1 | 36 | 4000 | 5580 | >70 | 220-240/50-60 | 6,3 | 153 |
|
| BSTA.450.55.40.L1 | 55 | 4000 | 8260 | >70 | 220-240/50-60 | 6,3 | 150 |
|
| BSTA.450.62.40.L1 | 62 | 4000 | 9070 | >70 | 220-240/50-60 | 6,3 | 147 |
|
| BSTA.450.79.40.L1 | 79 | 4000 | 10950 | >70 | 220-240/50-60 | 6,3 | 139 |
|
| BSTA.450.36.40.L2 | 36 | 4000 | 5600 | >70 | 220-240/50-60 | 6,3 | 154 |
|
| BSTA.450.55.40.L2 | 55 | 4000 | 8230 | >70 | 220-240/50-60 | 6,3 | 149 |
|
| BSTA.450.62.40.L2 | 62 | 4000 | 8990 | >70 | 220-240/50-60 | 6,3 | 146 |
|
| BSTA.450.79.40.L2 | 79 | 4000 | 10830 | >70 | 220-240/50-60 | 6,3 | 137 |
|
| BSTA.450.36.40.L3 | 36 | 4000 | 5500 | >70 | 220-240/50-60 | 6,3 | 151 |
|
| BSTA.450.55.40.L3 | 55 | 4000 | 8360 | >70 | 220-240/50-60 | 6,3 | 152 |
|
| BSTA.450.62.40.L3 | 62 | 4000 | 9050 | >70 | 220-240/50-60 | 6,3 | 147 |
|
| BSTA.450.79.40.L3 | 79 | 4000 | 10800 | >70 | 220-240/50-60 | 6,3 | 137 |
|
| BSTA.450.36.40.L4 | 36 | 4000 | 5560 | >70 | 220-240/50-60 | 6,3 | 153 |
|
| BSTA.450.55.40.L4 | 55 | 4000 | 8280 | >70 | 220-240/50-60 | 6,3 | 150 |
|
| BSTA.450.62.40.L4 | 62 | 4000 | 9120 | >70 | 220-240/50-60 | 6,3 | 148 |
|
| BSTA.450.79.40.L4 | 79 | 4000 | 10750 | >70 | 220-240/50-60 | 6,3 | 136 |
|
| BSTA.450.36.40.L6 | 36 | 4000 | 5350 | >70 | 220-240/50-60 | 6,3 | 149 |
|
| BSTA.450.55.40.L6 | 55 | 4000 | 8110 | >70 | 220-240/50-60 | 6,3 | 147 |
|
| BSTA.450.62.40.L6 | 62 | 4000 | 8890 | >70 | 220-240/50-60 | 6,3 | 144 |
|
| BSTA.450.79.40.L6 | 79 | 4000 | 10450 | >70 | 220-240/50-60 | 6,3 | 132 |
|
