Gövde
Elektrostatik toz boyalı aluminyum enjeksiyon çerçeve ve aluminyum soğutucu.
Lens
High Power led için tasarlanmış yüksek verimli PMMA lens.
Led
L80 ≥ 140.000 saat, yüksek etkinlik faktörüne ve renksel geriverime sahip SMD COB Led.
Sürücü
Sabit akım çıkışlı sisteme sahip yüksek verimli pf >0,9.
Renk
Ral 9016

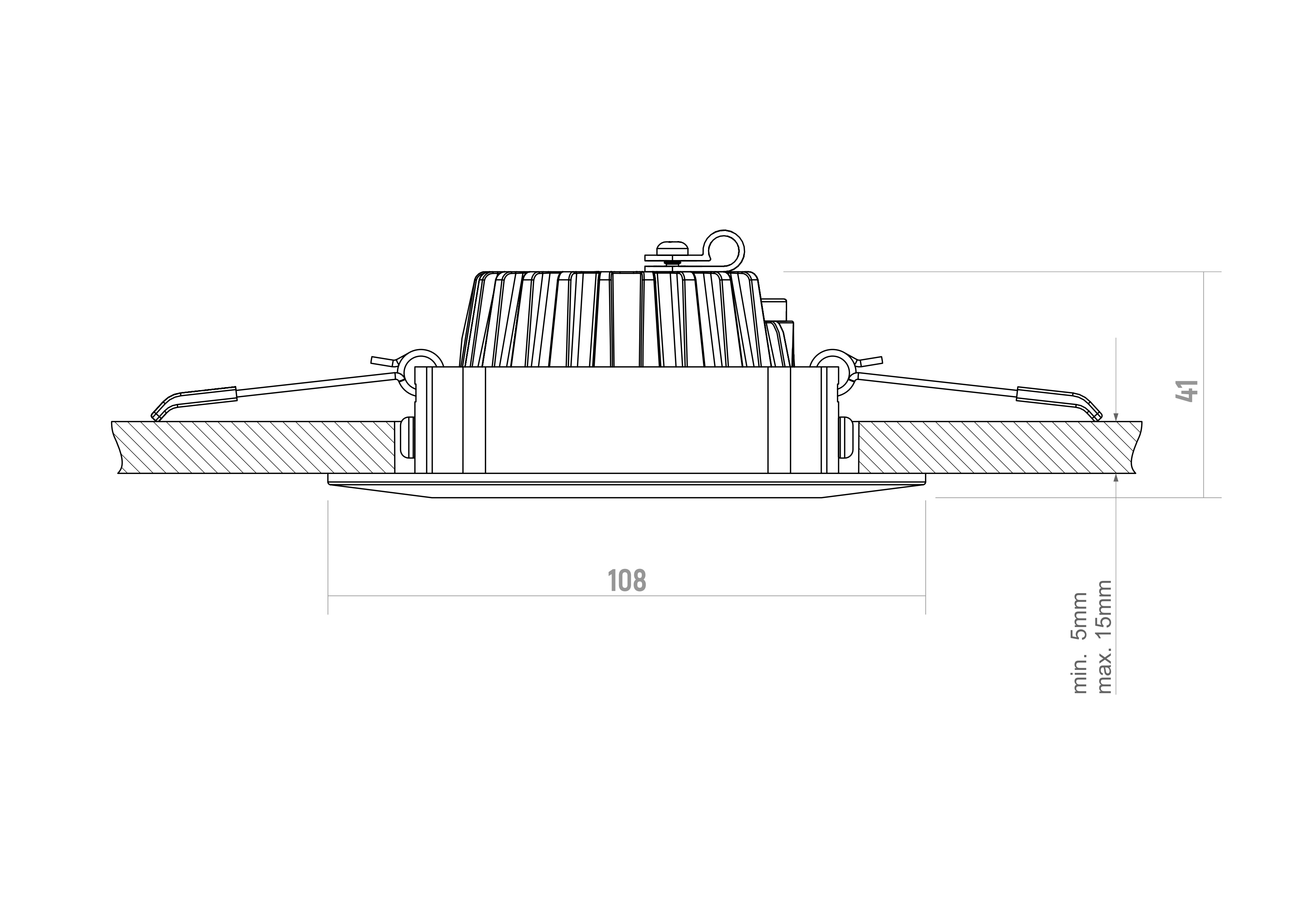

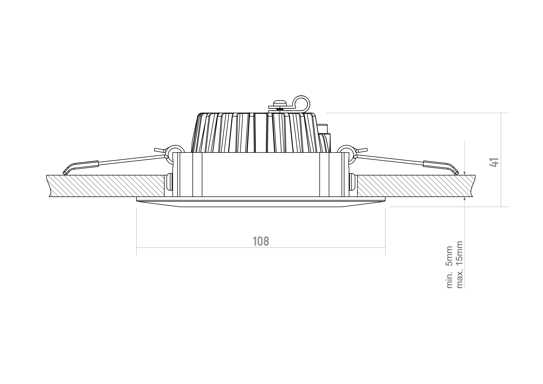

Ölçüler

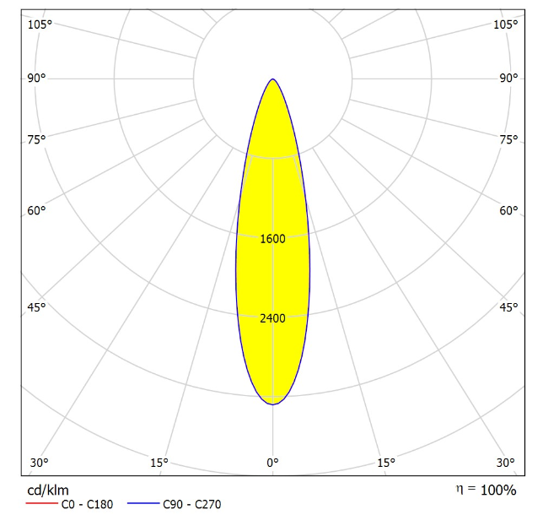

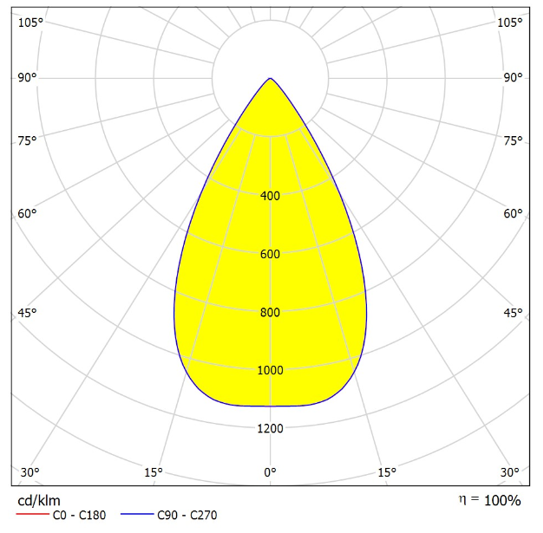

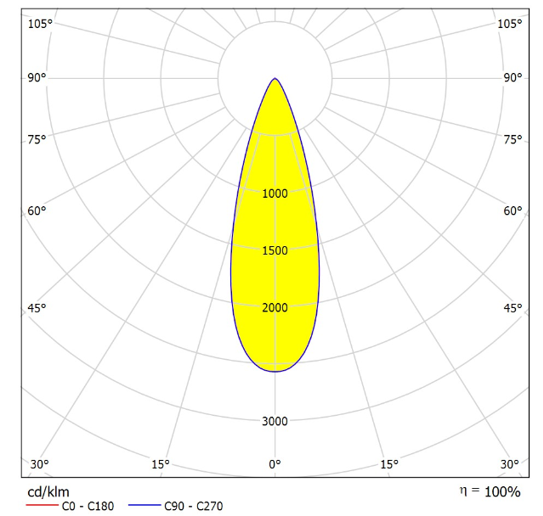

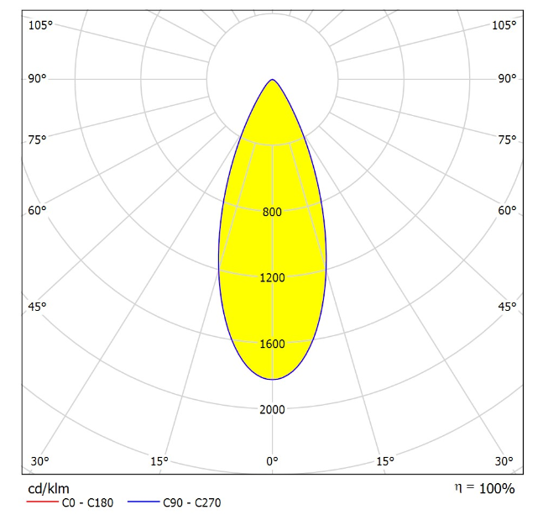

Işık Dağılımı
- DGSAL.110.13.40.80.15
- DGSAL.110.13.40.80.24
- DGSAL.110.13.40.80.36
- DGSAL.110.13.40.80.60
Filtrele
Teknik Veriler
| Tip Kodu | Güç (w) | CCT (K) | Işık Akısı (lm) | CRI | V/Hz | Ağırlık (Kg) | Montaj Ölçüsü (mm) | Açı | lm/W | Dosyalar | Şartname Metni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DG 1011 SAL DGSAL.110.7.30.80.15 | 7 | 3000 | 510 | >80 | 220-240/50-60 | 0,19 | Ø90 | 15° | 72 |
|
|
| DG 1011 SAL DGSAL.110.7.30.80.24 | 7 | 3000 | 622 | >80 | 220-240/50-60 | 0,19 | Ø90 | 24° | 88 |
|
|
| DG 1011 SAL DGSAL.110.7.30.80.36 | 7 | 3000 | 562 | >80 | 220-240/50-60 | 0,19 | Ø90 | 36° | 80 |
|
|
| DG 1011 SAL DGSAL.110.7.30.80.60 | 7 | 3000 | 554 | >80 | 220-240/50-60 | 0,19 | Ø90 | 60° | 79 |
|
|
| DG 1011 SAL DGSAL.110.9.30.80.15 | 9 | 3000 | 670 | >80 | 220-240/50-60 | 0,19 | Ø90 | 15° | 74 |
|
|
| DG 1011 SAL DGSAL.110.9.30.80.24 | 9 | 3000 | 786 | >80 | 220-240/50-60 | 0,19 | Ø90 | 24 | 87 |
|
|
| DG 1011 SAL DGSAL.110.9.30.80.36 | 9 | 3000 | 719 | >80 | 220-240/50-60 | 0,19 | Ø90 | 36° | 79 |
|
|
| DG 1011 SAL DGSAL.110.9.30.80.60 | 9 | 3000 | 745 | >80 | 220-240/50-60 | 0,19 | Ø90 | 60° | 82 |
|
|
| DG 1011 SAL DGSAL.110.11.30.80.15 | 11 | 3000 | 825 | >80 | 220-240/50-60 | 0,19 | Ø90 | 15° | 75 |
|
|
| DG 1011 SAL DGSAL.110.11.30.80.24 | 11 | 3000 | 917 | >80 | 220-240/50-60 | 0,19 | Ø90 | 24° | 83 |
|
|
| DG 1011 SAL DGSAL.110.11.30.80.36 | 11 | 3000 | 852 | >80 | 220-240/50-60 | 0,19 | Ø90 | 36° | 77 |
|
|
| DG 1011 SAL DGSAL.110.11.30.80.60 | 11 | 3000 | 902 | >80 | 220-240/50-60 | 0,19 | Ø90 | 60° | 82 |
|
|
| DG 1011 SAL DGSAL.110.13.30.80.15 | 13 | 3000 | 986 | >80 | 220-240/50-60 | 0,19 | Ø90 | 15° | 75 |
|
|
| DG 1011 SAL DGSAL.110.13.30.80.24 | 13 | 3000 | 1007 | >80 | 220-240/50-60 | 0,19 | Ø90 | 24° | 77 |
|
|
| DG 1011 SAL DGSAL.110.13.30.80.36 | 13 | 3000 | 1053 | >80 | 220-240/50-60 | 0,19 | Ø90 | 36° | 81 |
|
|
| DG 1011 SAL DGSAL.110.13.30.80.60 | 13 | 3000 | 1126 | >80 | 220-240/50-60 | 0,19 | Ø90 | 60° | 86 |
|
|
| DG 1011 SAL DGSAL.110.7.30.90.15 | 7 | 3000 | 440 | >90 | 220-240/50-60 | 0,19 | Ø90 | 15° | 62 |
|
|
| DG 1011 SAL DGSAL.110.7.30.90.24 | 7 | 3000 | 553 | >90 | 220-240/50-60 | 0,19 | Ø90 | 24° | 79 |
|
|
| DG 1011 SAL DGSAL.110.7.30.90.36 | 7 | 3000 | 483 | >90 | 220-240/50-60 | 0,19 | Ø90 | 36° | 69 |
|
|
| DG 1011 SAL DGSAL.110.7.30.90.60 | 7 | 3000 | 495 | >90 | 220-240/50-60 | 0,19 | Ø90 | 60° | 70 |
|
|
| DG 1011 SAL DGSAL.110.9.30.90.15 | 9 | 3000 | 580 | >90 | 220-240/50-60 | 0,19 | Ø90 | 15° | 64 |
|
|
| DG 1011 SAL DGSAL.110.9.30.90.24 | 9 | 3000 | 700 | <90 | 220-240/50-60 | 0,19 | Ø90 | 24° | 90 |
|
|
| DG 1011 SAL DGSAL.110.9.30.90.36 | 9 | 3000 | 618 | >90 | 220-240/50-60 | 0,19 | Ø90 | 36° | 68 |
|
|
| DG 1011 SAL DGSAL.110.9.30.90.60 | 9 | 3000 | 655 | >90 | 220-240/50-60 | 0,19 | Ø90 | 60° | 72 |
|
|
| DG 1011 SAL DGSAL.110.11.30.90.15 | 11 | 3000 | 695 | <90 | 220-240/50-60 | 0,19 | Ø90 | 15° | 63 |
|
|
| DG 1011 SAL DGSAL.110.11.30.90.24 | 11 | 3000 | 816 | >90 | 220-240/50-60 | 0,19 | Ø90 | 24° | 74 |
|
|
| DG 1011 SAL DGSAL.110.11.30.90.36 | 11 | 3000 | 733 | >90 | 220-240/50-60 | 0,19 | Ø90 | 36° | 66 |
|
|
| DG 1011 SAL DGSAL.110.11.30.90.60 | 11 | 3000 | 805 | >90 | 220-240/50-60 | 0,19 | Ø90 | 60° | 73 |
|
|
| DG 1011 SAL DGSAL.110.13.30.90.15 | 13 | 3000 | 838 | >90 | 220-240/50-60 | 0,19 | Ø90 | 15° | 64 |
|
|
| DG 1011 SAL DGSAL.110.13.30.90.25 | 13 | 3000 | 953 | >90 | 220-240/50-60 | 0,19 | Ø90 | 25° | 73 |
|
|
| DG 1011 SAL DGSAL.110.13.30.90.36 | 13 | 3000 | 906 | >90 | 220-240/50-60 | 0,19 | Ø90 | 36° | 69 |
|
|
| DG 1011 SAL DGSAL.110.13.30.90.60 | 13 | 3000 | 968 | >90 | 220-240/50-60 | 0,19 | Ø90 | 60° | 74 |
|
|
| DG 1011 SAL DGSAL.110.7.40.80.15 | 7 | 4000 | 575 | >80 | 220-240/50-60 | 0,19 | Ø90 | 15° | 82 |
|
|
| DG 1011 SAL DGSAL.110.7.40.80.24 | 7 | 4000 | 622 | >80 | 220-240/50-60 | 0,19 | Ø90 | 24° | 88 |
|
|
| DG 1011 SAL DGSAL.110.7.40.80.36 | 7 | 4000 | 615 | >80 | 220-240/50-60 | 0,19 | Ø90 | 36° | 87 |
|
|
| DG 1011 SAL DGSAL.110.7.40.80.60 | 7 | 4000 | 605 | >80 | 220-240/50-60 | 0,19 | Ø90 | 60° | 86 |
|
|
| DG 1011 SAL DGSAL.110.9.40.80.15 | 9 | 4000 | 737 | >80 | 220-240/50-60 | 0,19 | Ø90 | 15° | 81 |
|
|
| DG 1011 SAL DGSAL.110.9.40.80.24 | 9 | 4000 | 837 | >80 | 220-240/50-60 | 0,19 | Ø90 | 24° | 93 |
|
|
| DG 1011 SAL DGSAL.110.9.40.80.36 | 9 | 4000 | 788 | >80 | 220-240/50-60 | 0,19 | Ø90 | 36° | 87 |
|
|
| DG 1011 SAL DGSAL.110.9.40.80.60 | 9 | 4000 | 815 | >80 | 220-240/50-60 | 0,19 | Ø90 | 60° | 90 |
|
|
| DG 1011 SAL DGSAL.110.11.40.80.15 | 11 | 4000 | 928 | >80 | 220-240/50-60 | 0,19 | Ø90 | 15° | 84 |
|
|
| DG 1011 SAL DGSAL.110.11.40.80.24 | 11 | 4000 | 976 | >80 | 220-240/50-60 | 0,19 | Ø90 | 24° | 88 |
|
|
| DG 1011 SAL DGSAL.110.11.40.80.36 | 11 | 4000 | 955 | >80 | 220-240/50-60 | 0,19 | Ø90 | 36° | 86 |
|
|
| DG 1011 SAL DGSAL.110.11.40.80.60 | 11 | 4000 | 995 | >80 | 220-240/50-60 | 0,19 | Ø90 | 60° | 90 |
|
|
| DG 1011 SAL DGSAL.110.13.40.80.15 | 13 | 4000 | 1049 | >80 | 220-240/50-60 | 0,19 | Ø90 | 15° | 80 |
|
|
| DG 1011 SAL DGSAL.110.13.40.80.24 | 13 | 4000 | 1071 | >80 | 220-240/50-60 | 0,19 | Ø90 | 24° | 82 |
|
|
| DG 1011 SAL DGSAL.110.13.40.80.36 | 13 | 4000 | 1094 | >80 | 220-240/50-60 | 0,19 | Ø90 | 36° | 84 |
|
|
| DG 1011 SAL DGSAL.110.13.40.80.60 | 13 | 4000 | 1198 | >80 | 220-240/50-60 | 0,19 | Ø90 | 60° | 92 |
|
|
| DG 1011 SAL DGSAL.110.7.40.90.15 | 7 | 4000 | 470 | >90 | 220-240/50-60 | 0,19 | Ø90 | 15° | 67 |
|
|
| DG 1011 SAL DGSAL.110.7.40.90.24 | 7 | 4000 | 588 | >90 | 220-240/50-60 | 0,19 | Ø90 | 24° | 84 |
|
|
| DG 1011 SAL DGSAL.110.7.40.90.36 | 7 | 4000 | 512 | >90 | 220-240/50-60 | 0,19 | Ø90 | 36° | 73 |
|
|
| DG 1011 SAL DGSAL.110.7.40.90.60 | 7 | 4000 | 525 | >90 | 220-240/50-60 | 0,19 | Ø90 | 60° | 75 |
|
|
| DG 1011 SAL DGSAL.110.9.40.90.15 | 9 | 4000 | 625 | >90 | 220-240/50-60 | 0,19 | Ø90 | 15° | 69 |
|
|
| DG 1011 SAL DGSAL.110.9.40.90.24 | 9 | 4000 | 745 | >90 | 220-240/50-60 | 0,19 | Ø90 | 24° | 82 |
|
|
| DG 1011 SAL DGSAL.110.9.40.90.36 | 9 | 4000 | 655 | >90 | 220-240/50-60 | 0,19 | Ø90 | 36° | 72 |
|
|
| DG 1011 SAL DGSAL.110.9.40.90.60 | 9 | 4000 | 705 | >90 | 220-240/50-60 | 0,19 | Ø90 | 60° | 78 |
|
|
| DG 1011 SAL DGSAL.110.11.40.90.15 | 11 | 4000 | 775 | >90 | 220-240/50-60 | 0,19 | Ø90 | 15° | 70 |
|
|
| DG 1011 SAL DGSAL.110.11.40.90.24 | 11 | 4000 | 868 | >90 | 220-240/50-60 | 0,19 | Ø90 | 24° | 78 |
|
|
| DG 1011 SAL DGSAL.110.11.40.90.36 | 11 | 4000 | 777 | >90 | 220-240/50-60 | 0,19 | Ø90 | 36° | 70 |
|
|
| DG 1011 SAL DGSAL.110.11.40.90.60 | 11 | 4000 | 853 | >90 | 220-240/50-60 | 0,19 | Ø90 | 60° | 77 |
|
|
| DG 1011 SAL DGSAL.110.13.40.90.15 | 13 | 4000 | 934 | >90 | 220-240/50-60 | 0,19 | Ø90 | 15° | 71 |
|
|
| DG 1011 SAL DGSAL.110.13.40.90.24 | 13 | 4000 | 953 | >90 | 220-240/50-60 | 0,19 | Ø90 | 24° | 73 |
|
|
| DG 1011 SAL DGSAL.110.13.40.90.36 | 13 | 4000 | 960 | >90 | 220-240/50-60 | 0,19 | Ø90 | 36° | 73 |
|
|
| DG 1011 SAL DGSAL.110.13.40.90.60 | 13 | 4000 | 1027 | >90 | 220-240/50-60 | 0,19 | Ø90 | 60° | 73 |
|
|
