Housing
Matt natural anodized, aluminum extrusion profile and mounting accessories with plastic end cap
Diffuser
Opal, white, diffusing polycarbonate diffuser with lambertian light distribution
Led
High-efficacy mid power LED, achieving L70B50 ≥ 50,000 hours of lifetime
Driver
24V external type. Constant voltage output driver with high efficiency
Dimensions

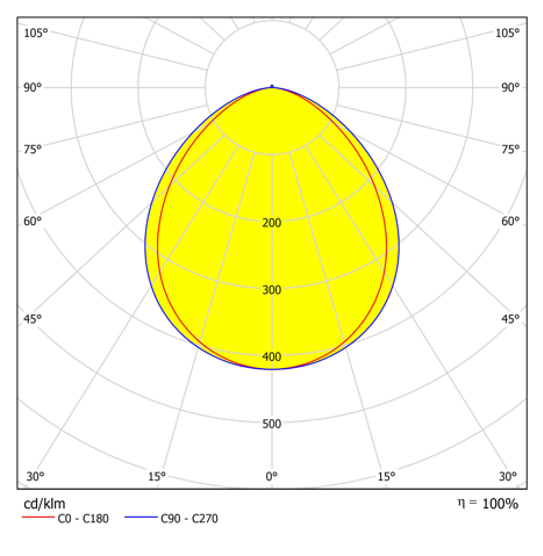

Light Distribution
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | L (mm) | Files |
|---|---|---|---|---|---|---|---|
| SDSRLB0140.1,5.40 | 1,5 | 4000 | 162 | >80 | 24V DC | 140 |
|
| SDSRLB0140.1,5.30 | 1,5 | 3000 | 159 | >80 | 24V DC | 140 |
|
| SDSRLB.0264.3.40 | 3 | 4000 | 322 | >80 | 24V DC | 264 |
|
| SDSRLB.0264.3.30 | 3 | 3000 | 315 | >80 | 24V DC | 264 |
|
| SDSRLB.0511.7.40 | 7 | 4000 | 641 | >80 | 24V DC | 511 |
|
| SDSRLB.0511.7.30 | 7 | 3000 | 628 | >80 | 24V DC | 511 |
|
| SDSRLB.1005.13.40 | 13 | 4000 | 1305 | >80 | 24V DC | 1005 |
|
| SDSRLB.1005.13.30 | 13 | 3000 | 1279 | >80 | 24V DC | 1055 |
|
| SDSRLB.1252.16.40 | 16 | 4000 | 1667 | >80 | 24V DC | 1252 |
|
| SDSRLB.1252.16.30 | 16 | 3000 | 1634 | >80 | 24V DC | 1252 |
|
| SDSRLB.1499.20.40 | 20 | 4000 | 2048 | >80 | 24V DC | 1499 |
|
| SDSRLB.1499.20.30 | 20 | 3000 | 2007 | >80 | 24V DC | 1499 |
|
