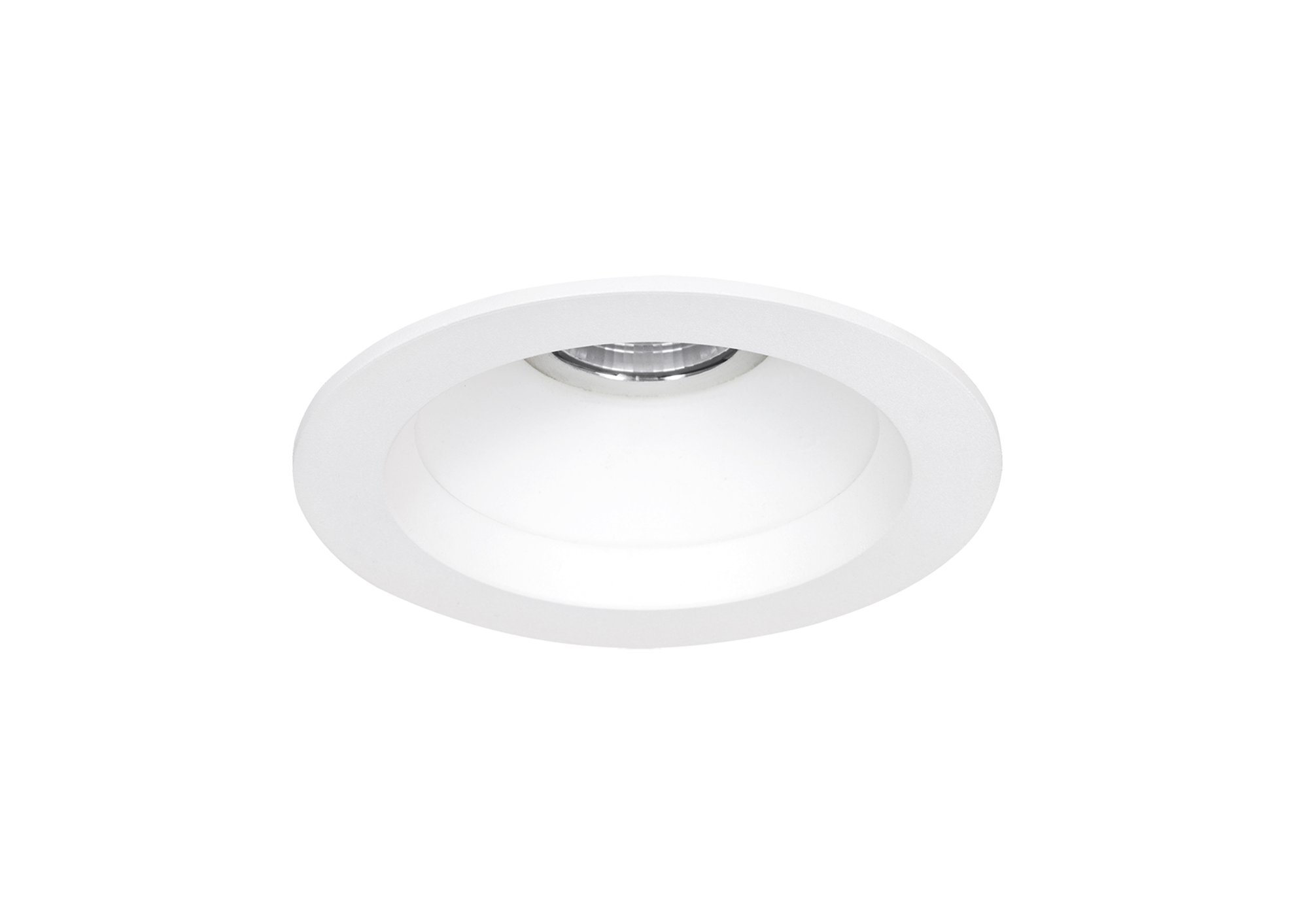

Housing
Aluminum injection frame with electrostatic powder coating and die-cast aluminum heatsink
Reflector
Anodized aluminum reflector, designed specially for LED modules
LED
High-efficacy COB LED with CRI>80, achieving L70B50 ≥ 50,000 hours of lifetime
Driver
Constant current output LED driver with high efficiency and Pf≥0.90
Operating Temperature Range
0 °C/+35 °C
Option
DALI and Emergency Lighting Kit
*Double colour: Exterior RAL9016, Interior RAL9005
Color

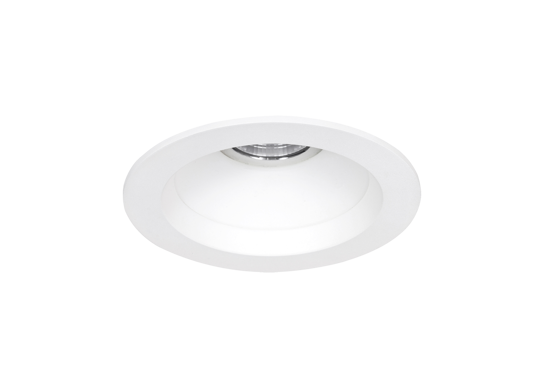

Ral 9016

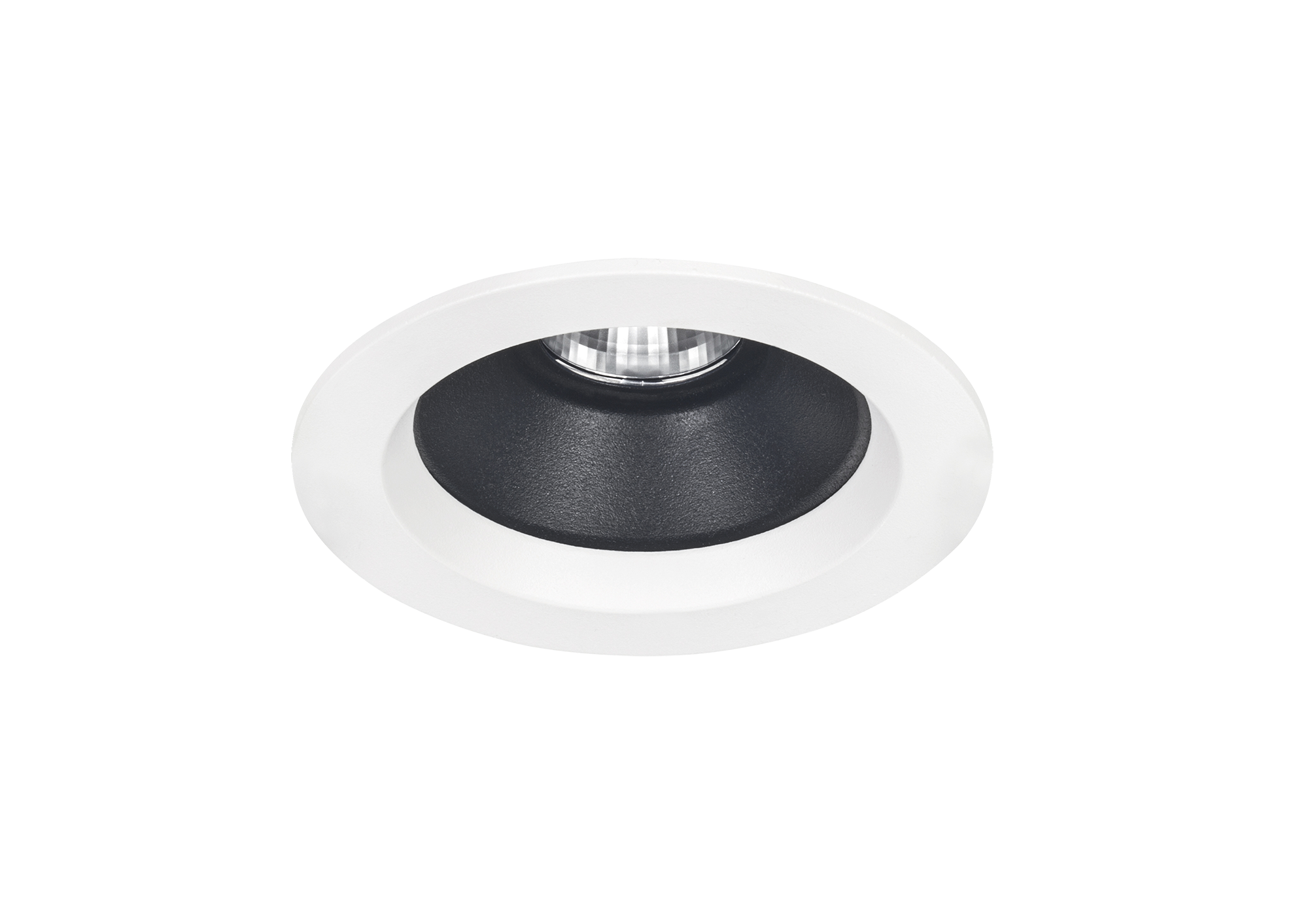

*Double

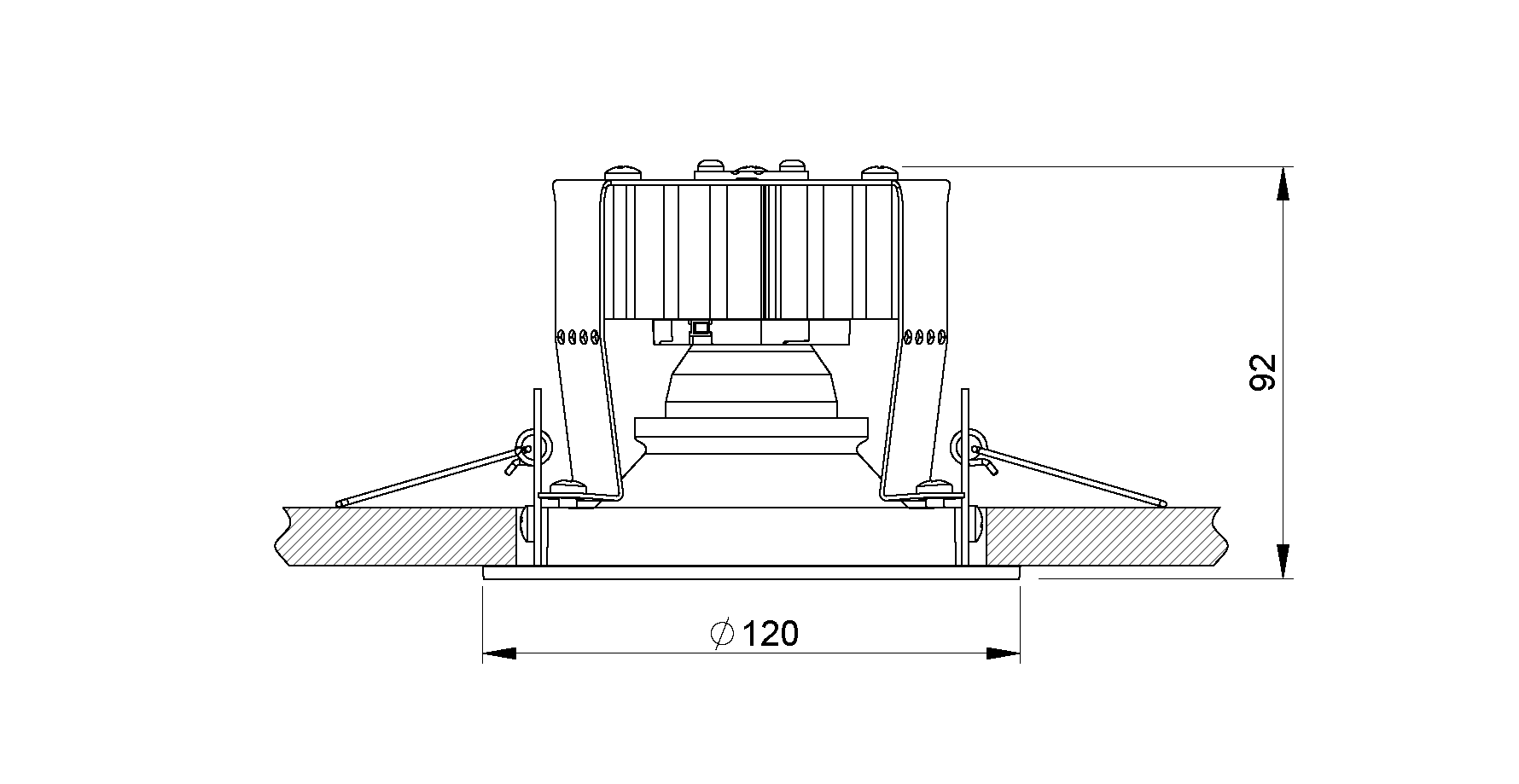

Dimensions

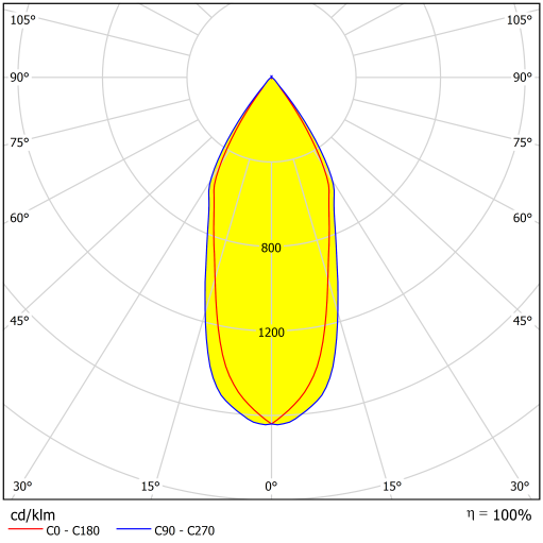

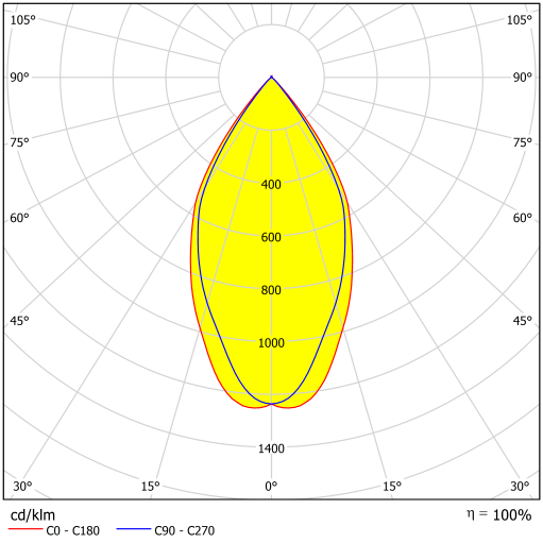

Light Distribution
- DGMOT.120.20.40.20
- DGMOT.120.20.40.40
- DGMOT.120.20.40.50
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Cut-out Size (mm) | Beam Angle | Files |
|---|---|---|---|---|---|---|---|---|---|
| DGMOT.120.14.40.20 | 14 | 4000 | 1420 | >80 | 220-240/50-60 | 0,5 | Ø105 | 20° (Spot) |
|
| DGMOT.120.14.30.20 | 14 | 3000 | 1370 | >80 | 220-240/50-60 | 0,5 | Ø105 | 20° (Spot) |
|
| DGMOT.120.14.40.40 | 14 | 4000 | 1360 | >80 | 220-240/50-60 | 0,5 | Ø105 | 40° (Medium) |
|
| DGMOT.120.14.30.40 | 14 | 3000 | 1360 | >80 | 220-240/50-60 | 0,5 | Ø105 | 40° (Medium) |
|
| DGMOT.120.14.40.50 | 14 | 4000 | 1440 | >80 | 220-240/50-60 | 0,5 | Ø105 | 50° (Flood) |
|
| DGMOT.120.14.30.50 | 14 | 3000 | 1390 | >80 | 220-240/50-60 | 0,5 | Ø105 | 50° (Flood) |
|
| DGMOT.120.20.40.20 | 20 | 4000 | 1870 | >80 | 220-240/50-60 | 0,5 | Ø105 | 20° (Spot) |
|
| DGMOT.120.20.30.20 | 20 | 3000 | 1700 | >80 | 220-240/50-60 | 0,5 | Ø105 | 20° (Spot) |
|
| DGMOT.120.20.40.40 | 20 | 4000 | 1770 | >80 | 220-240/50-60 | 0,5 | Ø105 | 40° (Medium) |
|
| DGMOT.120.20.30.40 | 20 | 3000 | 1750 | >80 | 220-240/50-60 | 0,5 | Ø105 | 40° (Medium) |
|
| DGMOT.120.20.40.50 | 20 | 4000 | 1920 | >80 | 220-240/50-60 | 0,5 | Ø105 | 50° (Flood) |
|
| DGMOT.120.20.30.50 | 20 | 3000 | 1790 | >80 | 220-240/50-60 | 0,5 | Ø105 | 50° (Flood) |
|
| DGMOT.120.14.40.20.90 | 14 | 4000 | 1390 | >90 | 220-240/50-60 | 0,5 | Ø105 | 20° (Spot) |
|
| DGMOT.120.14.30.20.90 | 14 | 3000 | 1180 | >90 | 220-240/50-60 | 0,5 | Ø105 | 20° (Spot) |
|
| DGMOT.120.14.40.40.90 | 14 | 4000 | 1170 | >90 | 220-240/50-60 | 0,5 | Ø105 | 40° (Medium) |
|
| DGMOT.120.14.30.40.90 | 14 | 3000 | 1130 | >90 | 220-240/50-60 | 0,5 | Ø105 | 40° (Medium) |
|
| DGMOT.120.14.40.65.90 | 14 | 4000 | 1035 | >90 | 220-240/50-60 | 0,5 | Ø105 | 50° (Flood) |
|
| DGMOT.120.14.30.65.90 | 14 | 3000 | 1200 | >90 | 220-240/50-60 | 0,5 | Ø105 | 50° (Flood) |
|
| DGMOT.120.20.40.20.90 | 20 | 4000 | 1570 | >90 | 220-240/50-60 | 0,5 | Ø105 | 20° (Spot) |
|
| DGMOT.120.20.30.20.90 | 20 | 3000 | 1150 | >90 | 220-240/50-60 | 0,5 | Ø105 | 20° (Spot) |
|
| DGMOT.120.20.40.40.90 | 20 | 4000 | 1530 | >90 | 220-240/50-60 | 0,5 | Ø105 | 40° (Medium) |
|
| DGMOT.120.20.30.40.90 | 20 | 3000 | 1450 | >90 | 220-240/50-60 | 0,5 | Ø105 | 40° (Medium) |
|
| DGMOT.120.20.40.65.90 | 20 | 4000 | 1500 | >90 | 220-240/50-60 | 0,5 | Ø105 | 65° (Flood) |
|
| DGMOT.120.20.30.65.90 | 20 | 3000 | 1600 | >90 | 220-240/50-60 | 0,5 | Ø105 | 65° (Flood) |
|
