Housing
Sheet steel with electrostatic powder coating.
Optics
Opal white polystyrene diffuser with lambertian light distribution.
Led
High-efficacy LED module with CRI>80, achieving L90B50 ≥ 50,000 hours of lifetime.
Driver
Constant current output LED driver with high efficiency and pf >0,9.
Options
* 1 or 3 hours emergency lighting kit
* Dimming via DALI
Color
Ral 9016
Ral 9005
Ral 9006
Dimensions

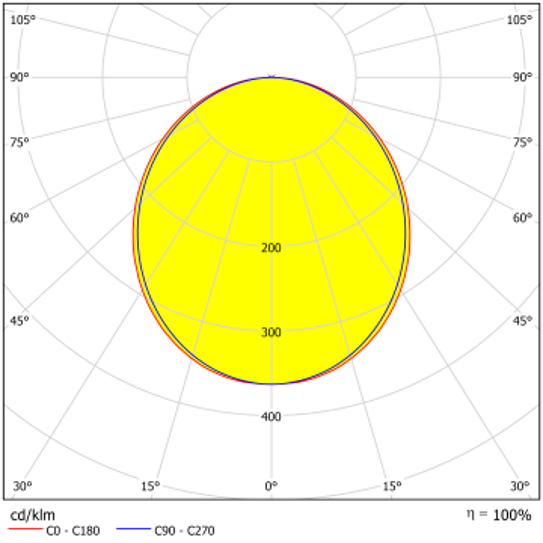

Light Distribution
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Cut-out Size (mm) | Files |
|---|---|---|---|---|---|---|---|---|
| DGKLD.1616.13.30 | 13 | 3000 | 660 | >80 | 220-240/50-60 | 0,7 | 140x140 |
|
| DGKLD.1616.13.40 | 13 | 4000 | 720 | >80 | 220-240/50-60 | 0,7 | 140x140 |
|
