Housing
Aluminum injection frame with electrostatic powder coating and die-cast aluminum heatsink.
Optics
Highly efficient PMMA lens, designed specially for High Power LED.
Led
High-efficacy High Power LED with CRI>80, achieving L70B50 ≥ 50,000 hours of lifetime.
Driver
Constant current output LED driver with high efficiency and pf >0,9.
Options
1 or 3 hours emergency lighting kit
Dimming via DALI
IP44/20 can be produced
Color
Ral 9016
Ral 9005
*Double

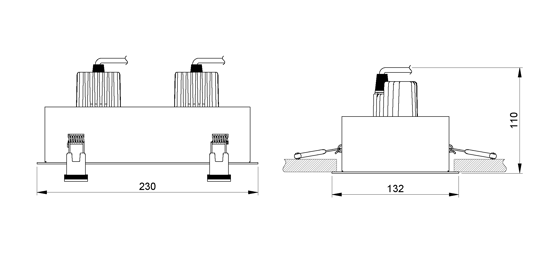

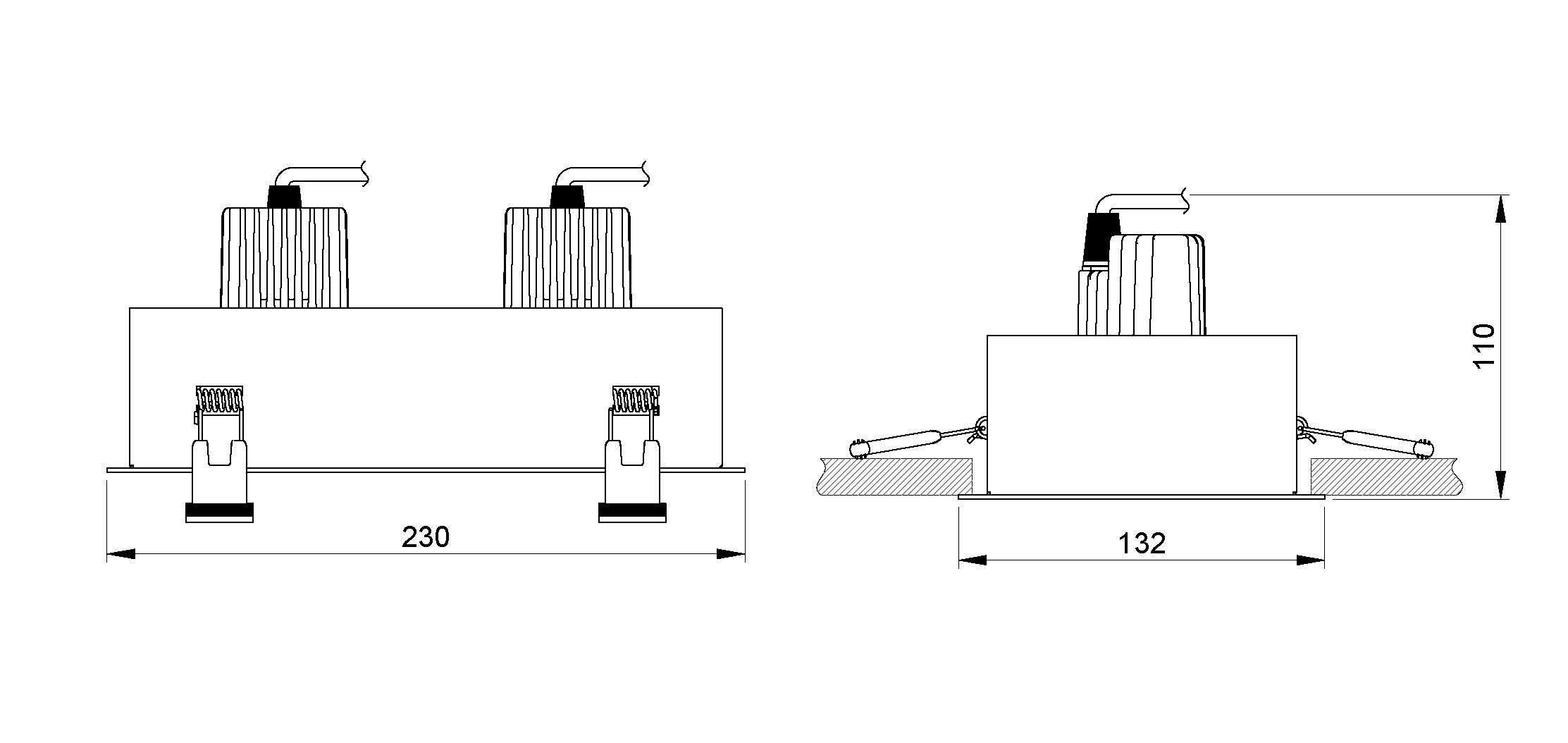

Dimensions

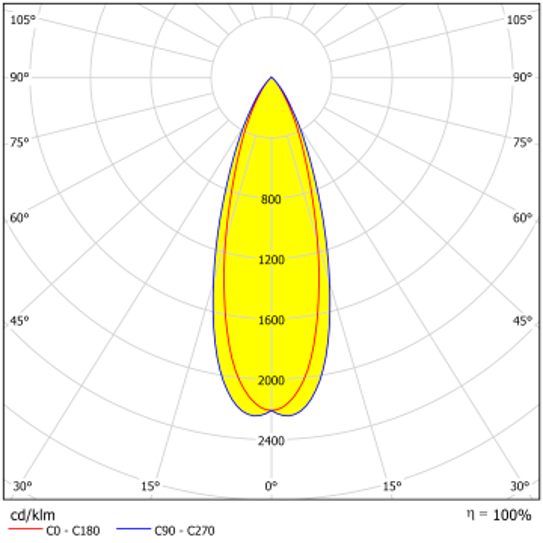

Light Distribution
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Cut-out Size (mm) | Beam Angle | Files |
|---|---|---|---|---|---|---|---|---|---|
| DGSAY.2213.15.30.35 | 15 | 3000 | 1240 | >80 | 220-240/50-60 | 1,3 | 120x220 | 35° |
|
| DGSAY.2213.15.40.35 | 15 | 4000 | 1320 | >80 | 220-240/50-60 | 1,3 | 120x220 | 35° |
|
