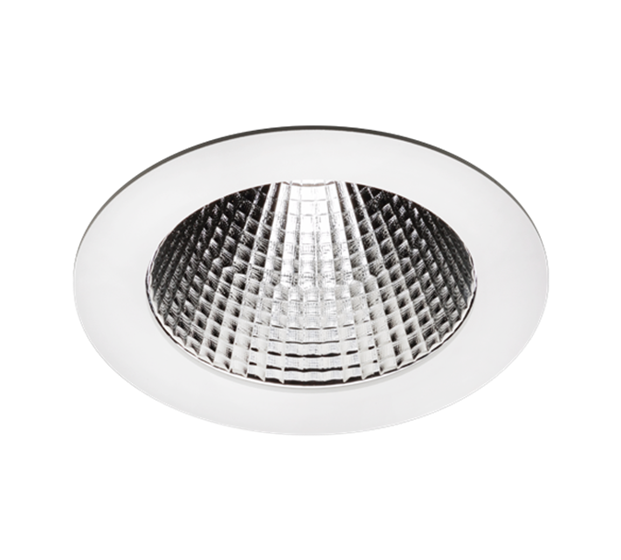

Fry 111

The Fry range is a basic and cost-efficient range of fixed LED downlights. The Fry 111 series covers the output range from 1200lm to 5000lm, all available in spot, medium and flood beam, in 3 colour temperatures, with a fixed output driver or a DALI driver and in 3 different finishes: white, grey or black. A smaller sized variant, Fry 70, covers the 1200lm to 3000lm output range.

DESCRIPTION
Recessed non-directional LED series, developped as a budget friendly and efficient
solution. All versions cooled with a passive heatsink.

LED INFO
Cree COB modules integrated, ensuring a great performance and high system efficacy.

RANGE
Fry comes in two sizes and in a black, white and grey finish. Light distribution in spot,
medium and flood beam in 2700K, 3000K and 4000K. All available in either CRI80 or
CRI90. Output range 1200 to 5000 lumen all in fixed output or with a DALI driver.

POWER SUPPLY
230V (LED driver included)

INSTALLATION
Installation in open or ventilated ceilings. Installation in round cut-out hole with torsion
springs.

Technical Data
Type Code Power (w) CCT (K) Light Output (lm) CRI V/Hz
KOD EKLENECEK 8 2700 940 >80 220-240/50-60
