Housing
Sheet steel body with electrostatic powder coating.
Optics
Opal white polystyrene diffuser with lambertian light distribution.
Led
High-efficacy LED MODULE with CRI>80, achieving L90B50 ≥ 50,000 hours of lifetime.
Glass
Tempered clear glass.
Driver
Constant current output LED driver with high efficiency and Pf≥0.95
Ambient Temperature
-20 °C/+35 °C (With Emergency Lighting Unit : +5 °C/+30 °C)
Options
1 or 3 hours emergency lighting kit
Dimming via DALI
IP65 can be made
Dimensions

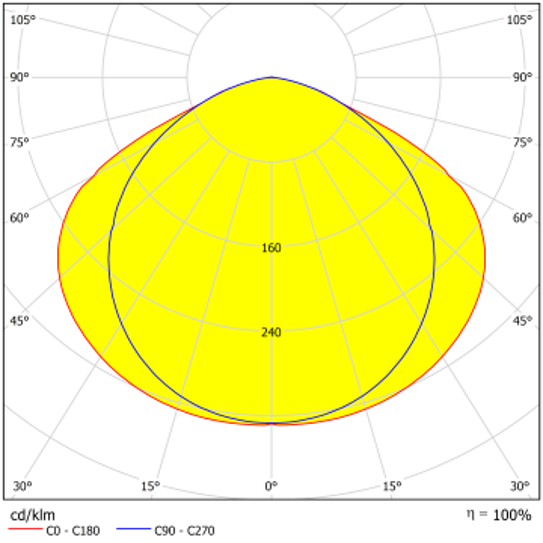

Light Distribution
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Cut-out Size (mm) | Files |
|---|---|---|---|---|---|---|---|---|
| EGEC.6060.42.30 | 42 | 3000 | 2730 | >80 | 220-240/50-60 | 9,2 | 580x580 |
|
| EGEC.6060.42.40 | 42 | 4000 | 2940 | >80 | 220-240/50-60 | 9,2 | 580x580 |
|
